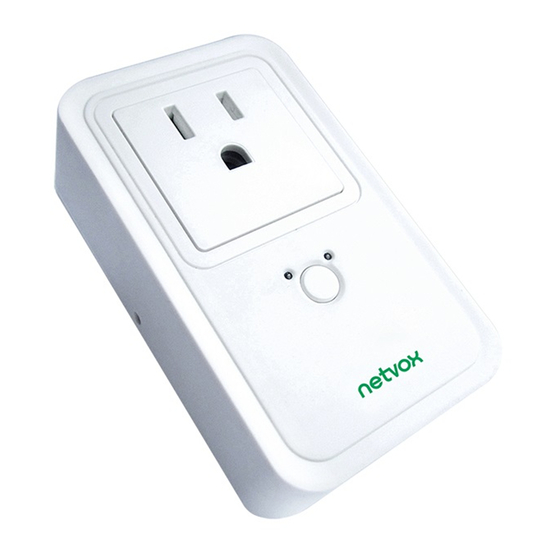

- Page 1 R809A Model： Wireless Power Plug with Power Meter Wireless Power Plug with Power Meter User Manual...
-
Page 2: Table Of Contents
R809A is a long-distance wireless socket device for Netvox ClassC type devices based on the LoRaWAN open protocol, compatible with the LoRaWAN protocol. The AppServer can be used to control the opening and closing of the external load of the R809A, and the external load can also be controlled by the switch that comes with the R809A device itself. -
Page 3: Appearance
2. Appearance Switch Indicator Red Switch Indicator Green Network Indicator Red Network Indicator Green Switch Button Factory Restoring Key Different specifications diagram of plugs and sockets. -
Page 4: Main Characteristic
Control the relay switch on R809A for Toggle operation: When R809A is on, the green indicator of the switch Press the switch button indicator is on and the red indicator is off. When R809A is off, the red indicator of the switch indicator is on and the green indicator is off. -
Page 5: Data Report
(Report the switch status first, and after 10 seconds reports the power, current and voltage measurement information status.) R809A default Max Interval = 15min, Min Interval = 2s (if there is a special custom shipping, the configuration is changed according to customer requirements) The uplink data reported by the device is referenced by the Netvox LoraWAN Application Command document and http://www.netvox.com.cn:8888/page/index... - Page 6 Toggle operation through the downlink control R809A: 920E000000000000000000 Clear and reset energy accumulation value operation through the downlink control R809A: 930E000000000000000000 Set the downlink to report if there is a change within 2 seconds. Report every 5mins if there is no change.
-
Page 7: Restore To Factory Setting
Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. PowerChange=2W. MaxTime (MinTime) MinTime MinTime MinTime collects data collects data collects data collects data collects data REPORT 10W Does not report REPORTS 13W Does not report Does not report Remarks: 1. -
Page 8: Product Installation
This product does not have a waterproof function. After the screening is completed, please place it indoors. Note: The energy data of R809A is saved once every 30 seconds if the memory chip is AT2401, once every 10 seconds for AT2402, and the high-capacity storage such as AT2404/08, it saves once per second. -
Page 9: Important Maintenance Instruction
9. Important Maintenance Instruction Your device is a product of superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture, and various liquids or moisture may contain minerals that can corrode electronic circuits. In case the device is wet, please dry it completely.
