Summary of Contents for Heta Scan-Line Tour 10

  • Page 1 10-20-30-40 www.heta.dk Danish DesiGn . Danish QUality . Danish ProDUCtion...
  • Page 3: Table Of Contents

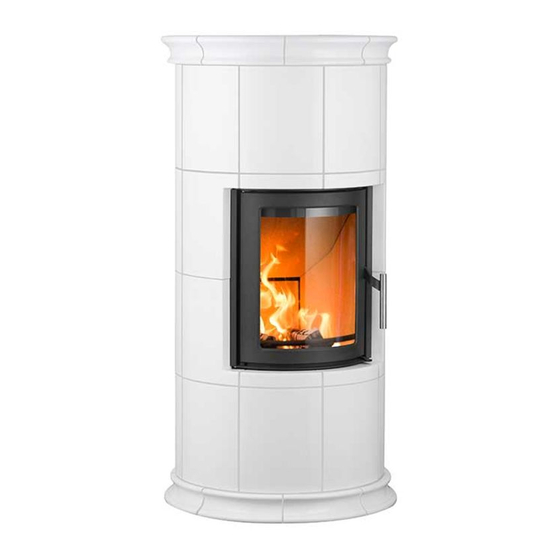

    Congratulations on your new wood stove, we are confident that you will be more than satisfied with your new Heta stove. Especially if you follow the following advice and instructions. Scan-Line Tour have been approved according to the EN 13240, NS 3058, NS 3059 and A15 Austria.
  • Page 4: Before Installation

    It is important that upon receipt check your Heta product completely and report any damage or defects to your dealer. The packaging must be disposed of as follows: Wood is untreated and able to burn in the stove.
  • Page 5 With your new wood stove you should find the following: Q.C. check Operating / Instruction manual Data plate Heta glove TOUR 10-20-30-40 Tools, grout and adhesive for assembling ceramics not included. Convention top 3512-0015 Valve for convection 3512-0016 Grout - only for joints after...
  • Page 6: Operating Instructions

    1. oPeratinG instrUCtions 1.1 Before using Before the wood stove is used make sure required installation conditions, are met. See page 1.2 first firing The stove may not be used until 2 days after the joints have been completed. The stove paint is fully cured from the factory, but a minor unpleasant odour could still arise.
  • Page 7: Refueling

    Good draft will allow the stove to achieve op- timal combustion and the highest possible ef- 1.7 reduced burning ficiency. Heta wood stoves are constructed so The stove is, approved for intermittent use. that it itself provides an optimal blend of com- Never turn down the air down so much that there bustion air.
  • Page 8: Fuel

    fluence draft, in some cases it may be disad- 10 cm should be split before before storing. The vantageous wind direction, combined with the pieces of firewood should be of an appropriate position of the chimney can cause negative draft length (approx.
  • Page 9: Chimney Fire

    conditions. In high winds, the draft can become 1.13 Maintenance so powerful that it may be necessary to fit a The surface of the stove is treated with a heat- damper in the flue gas pipe to regulate the draft. resistant paint.
  • Page 10: Troubleshooting

    1.17 troubleshooting table - applies to all stove types Fault Cause Troubleshooting Solution Inadequate chimney draft. Lighting problems. When the You can test using a lighter whether Improve the chimney. The chimney only has stove is cold, smoke seeps flame is drawn into the combustion sufficient draft when it is hot.
  • Page 11: Stove Data Table En 13240

    Therefore, the duration of the warranty is 5 years on this product, covering manufactu- rer’s defects, 1 year on paint adhesion defects from purchase date from Heta and a 3 months total warranty for seals, vermiculite and glass from the date of sale from the dealer.
  • Page 12: Cleaning/Replacing Bicks After Chimney Sweeping

    1.20 Cleaning after sweeping or before replacing vermiculite stones Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone. Order of removing Fire bricks.
  • Page 13: Parts

    1.21 Parts - inside fire chamber Pos. Name Qty. 1 0023-0075 Baffle 2 0023-0076 Side stone, right 3 0023-0077 Side stone, left 4 0023-0078 Back stone 5 0023-0114 Bottom stone, right 6 0023-0115 Bottom stone, left 7 0023-0116 Bottom stone, rear 8 0030-0010 Casted bottom 9 1013-0408...
  • Page 14: Installation Instructions

    installation instructions Contents Installation instructions ..............15 Distance Provisions ................15 Floor ....................15 Chimney connection ................. 15 Ventilation ..................16 Stovedrawings/measurments ............. 16-18 Safety distances ................18 Installation instructions ..............19 Adjusting the stoves feet ..............20 Number of accumulation ..............21 Flue pipe rear exit ................
  • Page 15: Installation Instructions

    / or You must ensure that the floor can support the beading. Heta A/S stresses that it is of utmost weight of the stove and a top-mounted steel importance that this is done correctly with very chimney.
  • Page 16: Ventilation

    (4.5 kW x 550 mm = 2475 mm ) un- of the chimney (excessive weight may damage less the stove is connected to an outside fresh the stove). air supply. 2.5 stovedrawings/measurments scan-line tour 10 ø100 Front...
  • Page 17 scan-line tour 20 ø100 Front scan-line tour 30 ø100 Front...
  • Page 18: Safety Distances

    scan-line tour 40 ø100 Front 2.6 safety distances Distance * Minimum according to distance EN 13240 1000 Furnitures 1000 Furnitures If a minimum distance to combu- stibles is used, this must always be approved by the local authorities Combustible (chimney sweep) before starting material installation of the stove.
  • Page 19: Installation Instructions

    3. installation instrUCtions Ceramics for Tour top exit - number of pcs. Pos. Tour 10 Tour 20 Tour 30 Tour 40 Ceramics for Tour rear exit - number of pcs. Pos. Tour 20 Tour 30 Tour 40 Heat-resistant tile adhesive between all ceramic rings.
  • Page 20: Adjusting The Stoves Feet

    3.1 adjusting the stoves feet See page 13.
  • Page 21: Number Of Accumulation

    3.2 number of accumulation stones at rear exit Tour 40 5 pcs. Tour 30-40 3 pcs Tour 20-30-40 1 pcs. 1906 1602 1298...
  • Page 22: Flue Pipe Rear Exit

    3.3 flue pipe rear exit 3.4 Grouting the ceramics Only Scan-Line Tour 20-30-40 The oven must only be grouted when the tile Flue pipes are installed before adhesive has hardened the ceramic rings are assembled. for at least 2 days. Flue pipes not included Excess...
  • Page 23: Eu Declaration Of Conformity

    Certifikat no. 2354 Manufacturer Heta A/S Ecodesign Adress Jupitervej 22, DK 7620 Lemvig EU Declaration of Conformity E-mail heta@heta.dk Website www.heta.dk DoC Scan-Line 500 2354-2018 Telephone +45 9663 0600 Product fiche Model identifier Scan-Line 500, 510, 520, 520B, 550, 551, 560B, 560S, 590, Turin, Turin B, Napoli, 10-20-20B-30-30B, Tour...
