Crestron TSW-1070-RMB-4 Quick Start

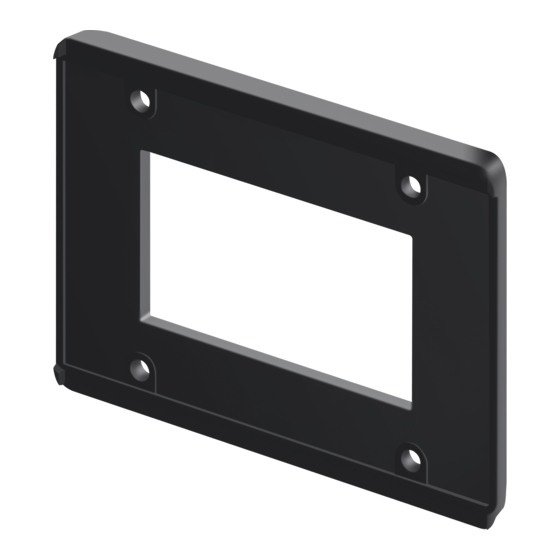

TSW-1070-RMB-4
Retrofit Mounting Bracket for TSW-1070 Series
The TSW-1070-RMB-4 is a retrofit mounting bracket for
TSS-1070 series touch screens. The TSW-1070-RMB-4 is used to replace
an existing TSW-1060 or TSS-10 series touch screen that is installed
over a TSW-760/1060-MSMK multisurface mount kit. The
TSW-1070-RMB-4 comes in white or black variants to match the touch
screen color.

In the Box

1 TSW-1070-RMB-4, Retrofit Mounting Bracket

Additional Items

4 Screw, 6-32 x 1/2 in., Phillips (2007241)
4 Screw, 6-32 x 3/4 in., Phillips (2033247)
TSW-1070-RMB-4-B Only
1 Bracket, Adapter, Black (2058873)
TSW-1070-RMB-4-W Only
1 Bracket, Adapter, White (2058872)
TSW-1070 and
To install the TSW-1070-RMB-4 mounting bracket into an existing
TSW-760/1060-MSMK installation:
1. Pull the TSW-1060 or TSS-10 out of its mounting bracket and
disconnect all cables from the rear of the touch screen.
NOTE: If the touch screen is secured to the mounting bracket
with a security latch, refer to the removal procedure described
in the
TSS-7 and TSS-10 Quick
2. Remove the TSW-760/1060 mounting bracket from the
TSW-760/1060-MSMK.
3. Position the TSW-1070-RMB-4 mounting bracket so that the four
screw openings in the mounting bracket align with the four raised
notches on the TSW-760/1060-MSMK as shown in the following
image.

Install the Mounting Bracket

TSW-560, TSW-760, and TSW-1070 Quick Start
Start.
Quick Start
or the
1
