TSW-770-MSMK and TSW-1070-MSMK
Multisurface Mount Kits for TSW-70 Series

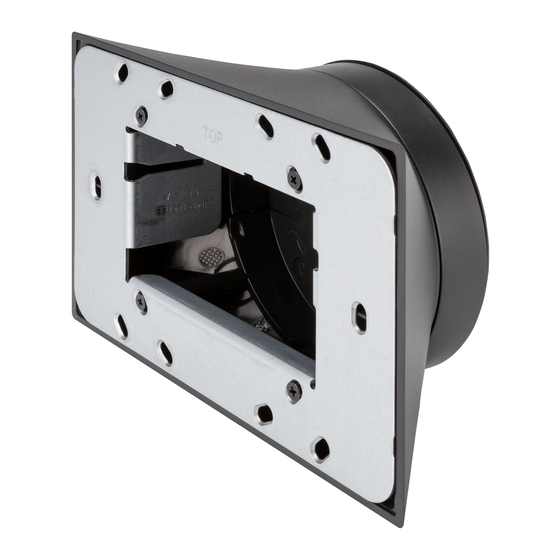

The Crestron®
TSW-770-MSMK
mount kits that provide a versatile flush mount solution for Crestron
TSW-70 series touch screens. Using multisurface mount kits, the touch
screen may be mounted directly onto glass, granite, marble, plaster,
smooth stone and masonry, or other flat surfaces.
In the Box
1
TSW-770-MSMK or TSW-1070-MSMK,
Multisurface Mount Kit
Additional Items
2
Coupler (2049574)
1
Fitting, Inside Corner (2049571)
1
Fitting, Outside Corner (2049572)
2
Fitting, Right Angle (2049573)
3
Raceway, 3 ft (2049567)
4
Screw, 4-40 x 5/8 in., Phillips (2007183)
TSW-770-MSMK Only
1
Template, Mounting Housing (4530856)
1
Template, Mounting Cap (4530137)
TSW-1070-MSMK Only
1
Template, Mounting Housing (4530855)
1
Template, Mounting Cap (4530128)
and
TSW-1070-MSMK
are multisurface
TSW-770-MSMK-B Only
1
Bracket, Black (4530811)
1
Cover, Black (2054400)
1
Cap, Black (4530796)
TSW-770-MSMK-W Only
1
Bracket, White (4530810)
1
Cover, White (2054254)
1
Cap, White (4530662)
TSW-1070-MSMK-B Only
1
Bracket, Black (4530813)
1
Cover, Black (2054397)
1
Cap, Black (4530795)
TSW-1070-MSMK-W Only
1
Bracket, White (4530812)
1
Cover, White (2054251)
1
Cap, White (4530661)
Quick Start
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Crestron TSW-770-MSMK
Summary of Contents for Crestron TSW-770-MSMK
- Page 1 TSW-770-MSMK TSW-1070-MSMK are multisurface TSW-770-MSMK-B Only mount kits that provide a versatile flush mount solution for Crestron Bracket, Black (4530811) TSW-70 series touch screens. Using multisurface mount kits, the touch Cover, Black (2054400) screen may be mounted directly onto glass, granite, marble, plaster, Cap, Black (4530796) smooth stone and masonry, or other flat surfaces.
- Page 2 Do not apply adhesive to the mounting surface in temperatures below 65°F (19°C). NOTE: The TSW-770-MSMK and TSW-1070-MSMK are functionally similar. For simplicity within this section, the term "MSMK" is used to refer to both models except where noted.
- Page 3 Quick Start TSW-770-MSMK and TSW-1070-MSMK Multisurface Mount Kits for TSW-70 Series Install the Raceway Kit 2. Use a level and the reference line on the template that is perpendicular to the chosen raceway cutout to tape a reference The included raceway kit is designed to be installed on a nearby smooth guide over the center cutout.
- Page 4 Quick Start TSW-770-MSMK and TSW-1070-MSMK Multisurface Mount Kits for TSW-70 Series Attach the Rear Housing 6. Use the chosen raceway cutout in the template and the taped reference line to position the raceway on the mounting surface. Ensure the raceway is level prior to adhesion.
- Page 5 Quick Start TSW-770-MSMK and TSW-1070-MSMK Multisurface Mount Kits for TSW-70 Series 4. Remove the protective liner from the back of the rear housing. 8. After confirming that the rear housing is level, press its circular base to the mounting surface firmly for at least 30 seconds to ensure the adhesive bonds to the surface.
- Page 6 Quick Start TSW-770-MSMK and TSW-1070-MSMK Multisurface Mount Kits for TSW-70 Series Attach the TSW-770/1070 Mounting Bracket NOTE: If installing a TSW-770-LB or TSW-1070-LB light bar as part of the MSMK installation, the light bar must be placed in between To attach the TSW-770/1070 mounting bracket (included with the the TSW-770/1070 mounting bracket and the MSMK rear housing...
- Page 7 Quick Start TSW-770-MSMK and TSW-1070-MSMK Multisurface Mount Kits for TSW-70 Series Attach the Plastic Cap (Optional) 6. Attach the plastic cap to the surface, starting with the bottom edge. Press the plastic cap to the surface firmly for at least 30 seconds to ensure the adhesive bonds to the surface.
- Page 8 Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource. www.crestron.com/model/6511117 Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document TSW-1070-MSMK: to refer to either the entities claiming the marks and names or their products.
