Wall Mount Back Box for TSW-560/760/1060 & TSW-UMB-60
Installation Guide
Description
The TSW-UMB-60-BBI provides a recess wall-mounted metal back box for the
Crestron
TSW-UMB-60 Universal Mounting Bracket. The TSW-UMB-60-BBI is designed
®
for installation in concrete and masonry applications. Conduit knockouts are also provided
on the top and bottom of the back box.
Additional Resources
Visit the product page on the Crestron website (www.crestron.com)
for additional information, including any rmware updates. Use a QR
reader application on your mobile device to scan the QR image.
Installation
To install the TSW-UMB-60-BBI, use the following procedure:
NOTE: For some installations, forced venting may be required.
NOTE: Knockout holes are intended for Class 2 wiring only and are 20 mm (13/16") in
diameter.
1. Separate the two halves of the mounting bracket that comes with the TSW-560,
TSW-760, TSW-1060, or TSW-560P touch screens by removing the two 1-1/2"
screws that hold the halves together. Refer to the following illustrations.

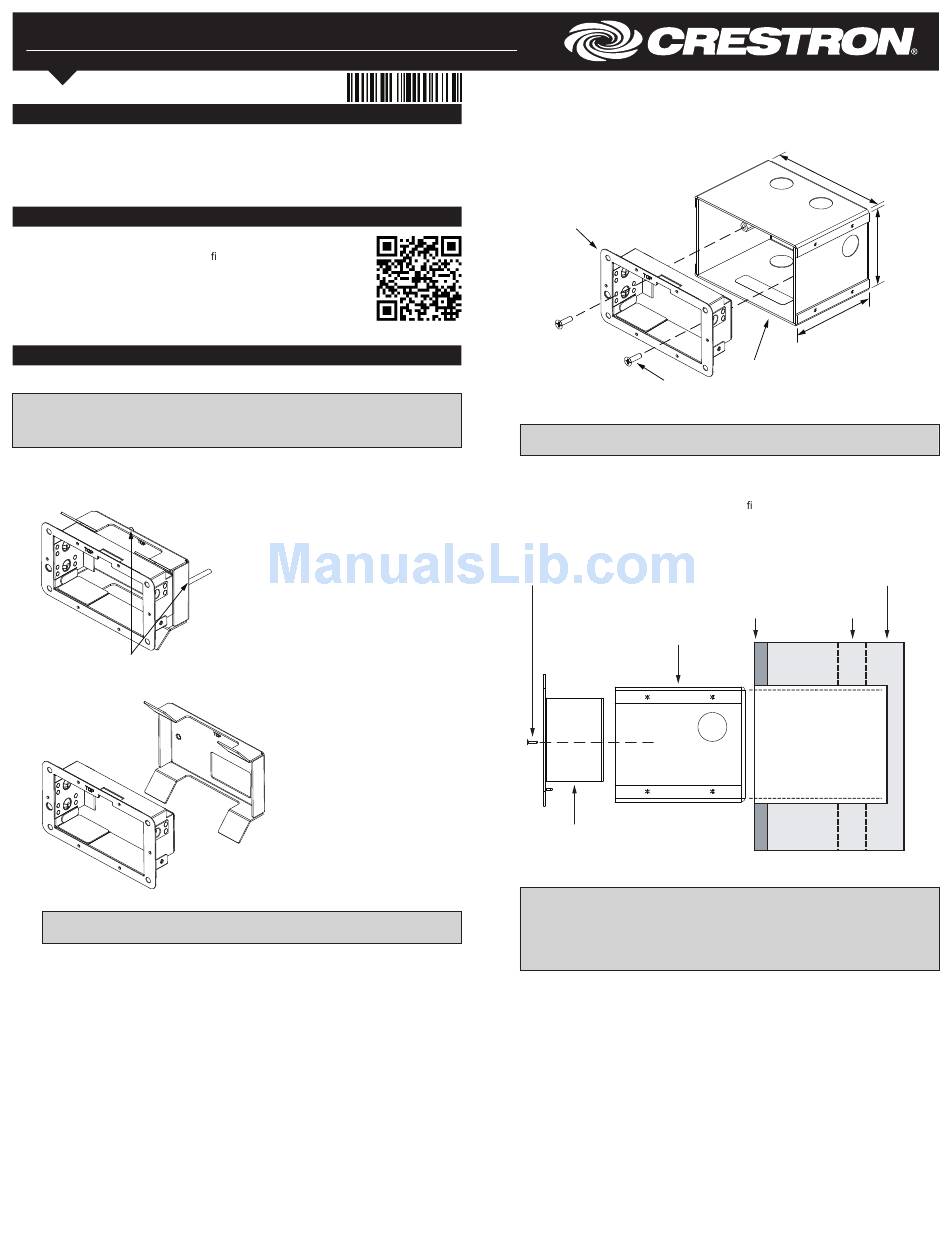

Separating the Halves of the Mounting Bracket (Before Separation)
Remove (2) 1-1/2" screws
Separating the Halves of the Mounting Bracket (After Separation)
NOTE: The rear portion of the mounting bracket can be saved for possible future
use. Only the front portion is required for installing the TSW-UMB-60-BBI.
2. Use the two included 6-32 x 1/2" screws to install the front portion of the mounting
bracket assembly onto the back box. Refer to the following illustration.
Installing the Mounting Bracket into the TSW-UMB-60-BBI
Metal bracket
(included with
touch screen)
Screws (2):
6-32 x 1/2"
NOTE: Remove the appropriate knockouts on the TSW-UMB-60-BBI before
installation.
3. Ensure that the "TOP" text on the inside of the back box is facing upward, and then
mount the TSW-UMB-60-BBI into an appropriately sized cutout in the mounting
surface as shown in the following illustration. (When making the cutout, refer to the
product dimensions listed in the table of speci cations on the product website.)
Depending on the installation, forced ventilation may be required.
Mounting the TSW-UMB-60-BBI (Exploded View)
Screws (2):
6-32 x 1/2"
TSW-UMB-60-BBI
Metal bracket
(included with
touch screen)
NOTE: The TSW-UMB-60-BBI can also be mounted vertically for use with the
TSW-560P portrait touch screen. For this installation, ensure that the "TOP" text
on the inside of the back box is facing to the right, and then install the
TSW-UMB-60-BBI into an appropriately sized cutout in the mounting surface.
(Rotate the product 90º to the right to determine the necessary cutout dimensions
for portrait mounting.)
105 mm
(4.13 in)
68 mm
(2.65 in)
77 mm
(3.00 in)
TSW-UMB-60-BBI
Solid mounting
surface (such as
concrete or masonry)
Plaster
Wiring
Cutout in
mounting
surface
