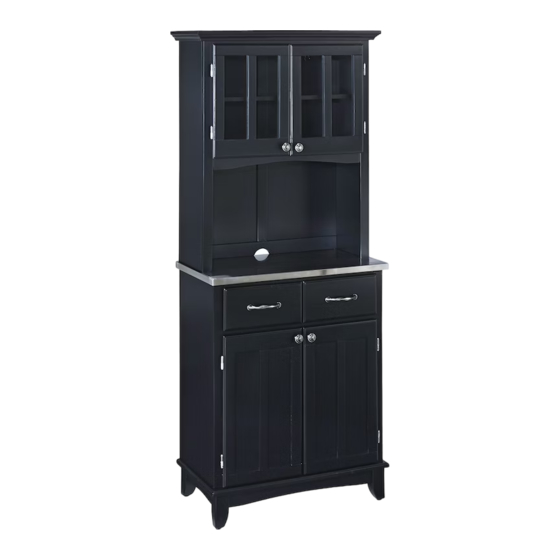

Homestyles Hutch 5001-304 Manual
  1. Manuals
  2. Brands
  3. Homestyles Manuals
  4. Indoor Furnishing
  5. Hutch 5001-304
  6. Manual

Homestyles Hutch 5001-304 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
F.
Back Rail
1 pc.
G.
Back Rail
1 pc.
I.
Fixed Shelf
1 pc.
Hardware List
Cam Lock Screw
1 pcs. (+1 extra)
4
Cam Lock
1 pcs. (+2 extra)
4
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
home
5001-304
Hutch
B.
Side Panel
1 pc.
H.
Front Rail
1 pc.
J.
Shelf
1 pc.
M3.5x16
Wood Screw for Back Panel
8 pcs. (+1 extra)
Adjustable Pin
4
pcs. (+ extra)
1
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
Hutch
C.
D.
Side Panel
Back Panel
1 pc.
2 pcs.
K.
Door
1 pc.
Knob
2 pcs.
M4x25
Machine Screw
2 pcs.
888-680-7460
E.
Back Upright
1 pc.
L.
Door
1 pc.
Bracket
2 pcs.
M x13
4
Wood Screw for Bracket
8 pcs. (+1 extra)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hutch 5001-304 and is the answer not in the manual?

Questions and answers

Related Manuals for Homestyles Hutch 5001-304

Summary of Contents for Homestyles Hutch 5001-304

  • Page 1 5001-304 Hutch IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Hutch Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
  • Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the screws until each part is properly assembled. STEP 1 Insert Cam Lock Screws into pre-drilled holes in Top (A) and Side Panels (B), , then tighten.
  • Page 3 Assembly Instructions 3/6 STEP 3 Attach Fixed Shelf (I) to unit with Cam Locks. Cam Lock STEP 4 Attach Front Rail (H) to unit with Cam Lock. Attach Side Panel (C) to uni twith Cam Locks. Cam Lock...
  • Page 4 Assembly Instructions 4/6 Adjustable Pin STEP 5 Insert Adjustable Pins into side panels at desired level. Place Shelf (J) into position. Attach Doors (K) and (L) to unit by sliding door hinges into side panel hinges. (See Figure 3) Attach Knobs to Doors (K) and (L) with Machine Screws.
  • Page 5 Assembly Instructions 5/6 Wood Screw for Back Panel STEP 7 Insert Wood Screws for Back Panel into pre-drilled holes in unit. Figure 5 Wood Screw for Bracket Bracket STEP 8 Attach Hutch to Buffet with Brackets by inserting Wood Screws for Bracket into pre-drilled holes, then tighten (See Figure 5)

  • Page 6: Hardware List

    Assembly Instructions / 6 6 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 9 Wall Screw Pre-drilled hole Anchor in wall Bracket at top of unit on wall Wood Screw 3/8”...
  • Page 7 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.

  • Page 8: Part List

    5001-004 Buffet IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble. Part List Front Rail Back Rail...
  • Page 9 Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
  • Page 10 Assembly Instructions 3/8 STEP 3 Cam Lock Attach Divider (G) to unit. Attach Front Rail (C) to unit. Attach Front Upright (E) to unit. Attach Front Rail (D) to unit with Cam Lock. Cam Lock STEP 4 Attach Side Panel (B) to unit with Cam Locks.
  • Page 11 Assembly Instructions 4/8 STEP 5 Attach Base (K) to unit with Cross Dowels and Head Cap Bolts (long). (See Figure 3) Attach Legs (L) to Base (K) with Head Cap Bolts. Head Cap Bolt Cross Dowel Figure 3 Head Cap Bolt (long) Knob Adjustable Pin Machine Screw...
  • Page 12 Assembly Instructions 5/8 Cam Lock Screw STEP 7 Arrow label Place Top (Q) upside down on a soft cloth. Insert Cam Lock Screws into pre-drilled holes in Top (Q), then tighten. Cam Lock STEP 8 Attach Top (Q) to unit with Cam Locks. Note: Arrow label indicates front of Top (Q).
  • Page 13 Assembly Instructions 6/8 Drawer ( ) P Wood Screw (long) Bottom STEP 9 Attach Drawer Front ( 1) and Drawer Back ( 2) to Drawer Side ( 3) with Wood Screws (long). Attach Drawer Side ( 4) to unit with Wood Screws (long). Roller at back Wood Screw (short) STEP 10...
  • Page 14 Assembly Instructions 7/8 STEP 12 Slide Drawers (P) into position. Wood Screw for Back Panel STEP 13 Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 6) Note: Unit must be level to proceed. Insert Wood Screws for Back Panel into pre-drilled holes in unit, then tighten.
  • Page 15 Assembly Instructions 8/8 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 14 Wall Screw Pre-drilled hole Anchor in wall Bracket at top of unit on wall Wood Screw 3/8”...
  • Page 16 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
  • Page 17 Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble. Part List 1 pc. For assembly see instructions in 5001 Buffet carton. Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
