IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

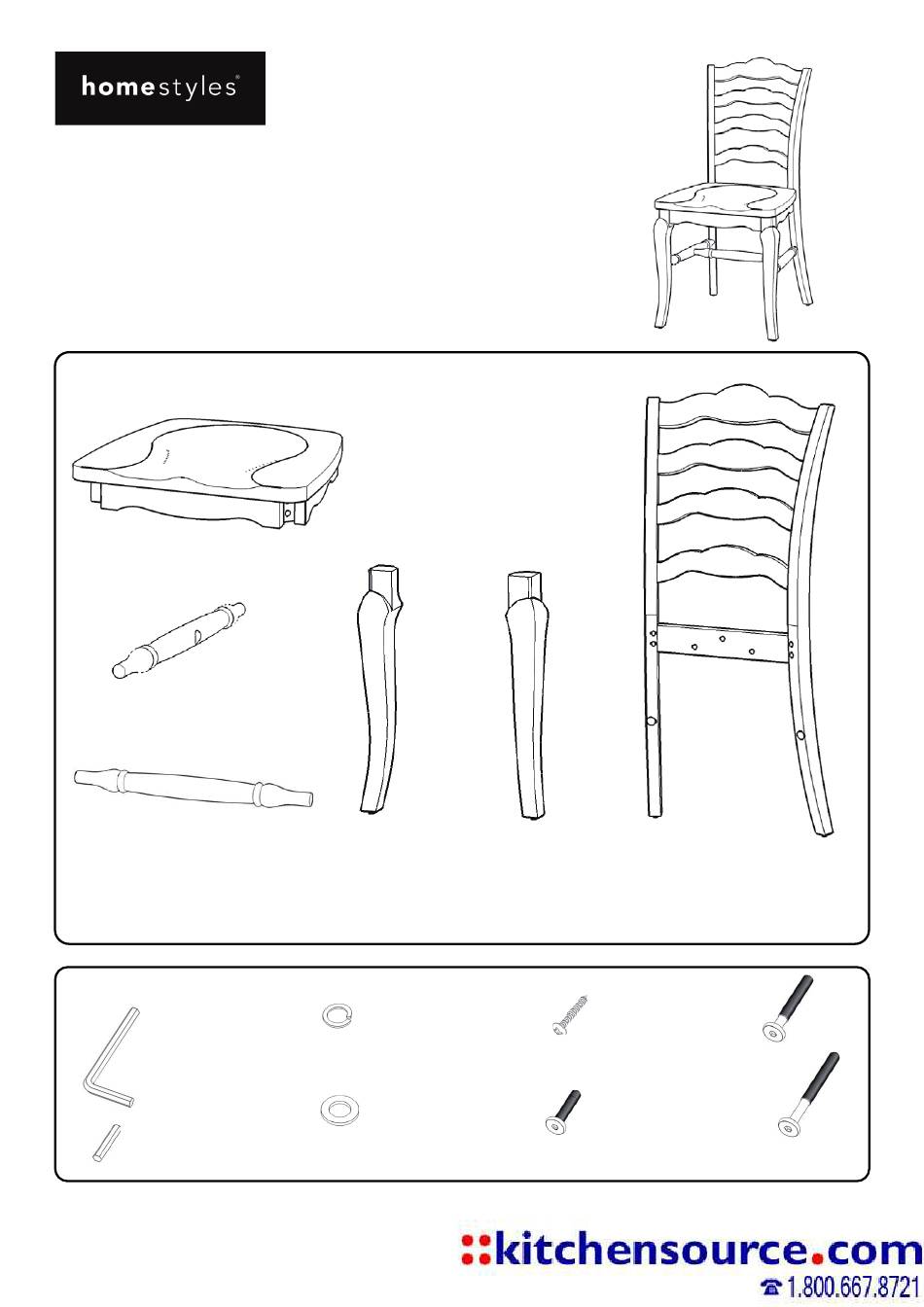

Part List
A.
Seat
1 pc.
B.
Side Stretcher
2 pcs.
C.
Center Stretcher
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05525 0080
Chair
D.
Leg
1 pc.
Spring Washer
11 pcs. (+1 extra)
Flat Washer
11 pcs. (+1 extra)
E.
Leg
1 pc.
M3.5x40
Wood Screw
4 pcs. (+1 extra)
M6x40
Head Cap Bolt (short)
3 pcs. (+1 extra)
888-680-7460, 877-831-0319
F.
Back Frame
1 pc.
M6x50
Head Cap Bolt
4 pcs. (+1 extra)
M6x70
Head Cap Bolt (long)
4 pcs. (+1 extra)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 20 05525 0080
Summary of Contents for Homestyles 20 05525 0080
- Page 1 Small Hex Wrench Flat Washer Head Cap Bolt (short) Head Cap Bolt (long) 1 pc. 11 pcs. (+1 extra) 3 pcs. (+1 extra) 4 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/3 Flat Washer Spring Washer Head Cap Bolt (long) Head Cap Bolt Spring Washer (short) Flat Washer Wood Screw STEP 2 Attach Back Frame (F) to unit with Flat Washers, Spring Washers, Head Cap Bolts (short) and Head Cap Bolts (long), tightening bolts only halfway. (See Figures 4 and 5) Tighten all Head Cap Bolts used in Steps 1 and 2.
- Page 4 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
