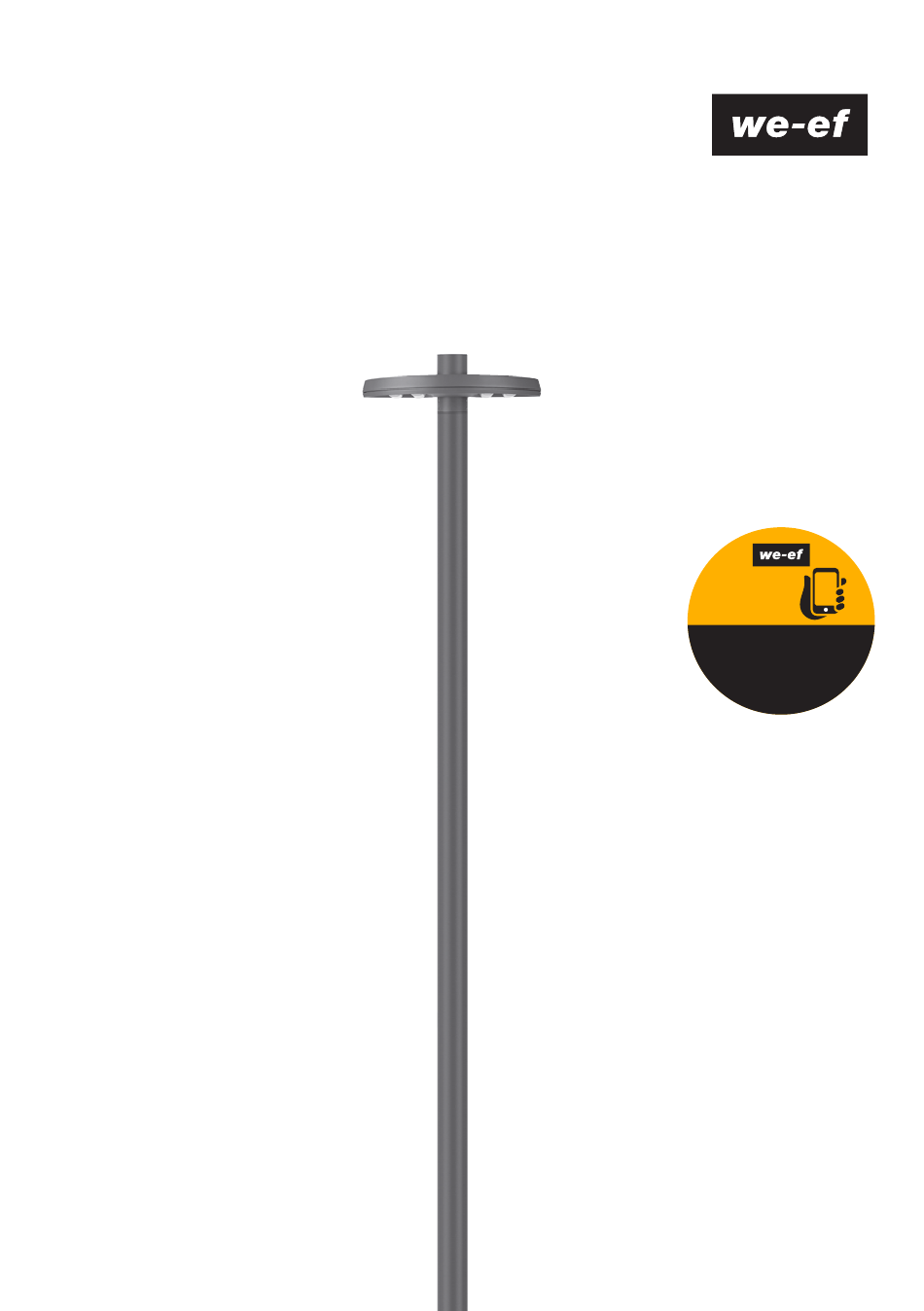

- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Street and Area Lighting Luminaire RMC320 LED INSTALLER HOTLINE +61 458 933 399 7am – 7pm AEST...
- Page 2 Street and Area Lighting Luminaire RMC320 IP66, IK08, Class I, ta = 40°C...
-
Page 3: Mounting Accessories
Mounting Accessories Wall bracket RM1-W for RMC320 105-9846 Single bracket RM1-76* for RMC320 105-9847 AMW-C Wooden pole RM1-76** for RMC320 105-9849 AMF-C Steel pole Double bracket RM2-76* for RMC320 105-9848 AMW-C Wooden pole RM2-76** for RMC320 105-9850 AMF-C Steel pole Short bracket –... -
Page 4: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high- pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out by a suitably qualifi... -
Page 5: Installation
Installation Product Information/Surge Protection The product must be installed and maintained by a As an option, this luminaire can also be fitted with a factory installed surge protector of Type 2-3. If suitably qualifi ed person in compliance with the latest supplied as a pole mount, a DIN rail mount SPD has to applicable regulations and relevant legislation. -
Page 6: Installation Procedure
WE-EF Control Basic (L = Phase, N = Neutral, = Earthing, Ls = Switching Phase) c) 1-10 V/DALI or WE-EF Control Dynamic (L = Phase, N = Neutral, = Earthing, DA/DA = DALI control line, D-/D+ = 1-10 V... - Page 7 Installation to a Pole...
- Page 8 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING United Kingdom Tel +44 844 880 5346 INSTALLER HOTLINE Fax +44 844 880 5347 info.uk@we-ef.com +61 458 933 399 7am – 7pm AEST TO9184W0216 © WE-EF 2018 Technical specifi cations are subject to change.
