Safety Notice
The manufacturer is discharged from liability when damage
is caused by improper use or installation.
If any luminaire and/or accessory is subsequently modi-
fied, the persons responsible for the modification shall be
considered as manufacturer.
Product Information / Surge Protection
As an option, this luminaire can also be fitted with a surge
protector of Type 2-3 (at the time of order). The technical
data can be found directly on the installed device. If the
surge protector has been triggered by an adverse event,
the luminaire is automatically disconnected from the
mains. In that case, the LED on the surge protector no
longer lights up.
For comprehensive protection of the luminaire against
lightning and electrical surges, primary (Type 1) and
secondary (Type 2) surge arrestors must be installed into
the power supply. We recommend a combination arrestor
(Type 1+2+3), which is installed in the control cabinet.
WE-EF LIGHTING USA
Tel +1 724 742 0030
info.usa@we-ef.com
we-ef.com
The technical planner/installer is responsible for the pro-
per selection, sizing and installation of the surge protection
modules that must be provided on site. Please note the
various protection levels for Class I and II, as well as the
applicable statutory provisions regarding surge protection.
Installation and maintenance may only be performed by a
qualified electrician.
RFL500-SE LED_230522 / 006-0887
Technical specifications are subject to change.
© WE-EF 2022
WE-EF LIGHTING
Installation and
Maintenance Instructions for

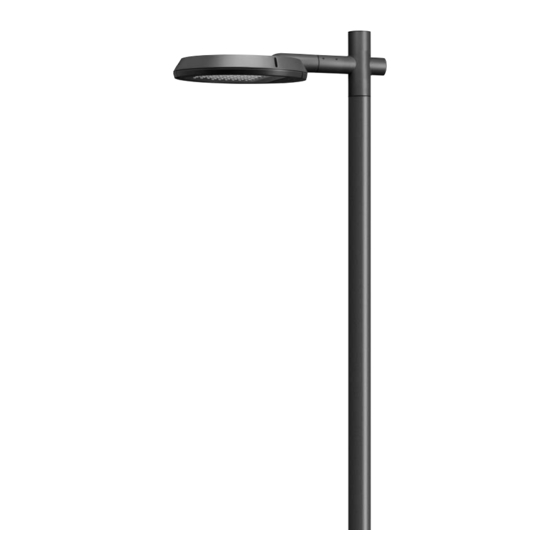

RFL540-SE LED Series
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WE-EF RFL540-SE LED Series
Summary of Contents for WE-EF RFL540-SE LED Series
- Page 1 Post Mounted Luminaires mains. In that case, the LED on the surge protector no Installation and maintenance may only be performed by a RFL540-SE LED Series longer lights up. qualified electrician. For comprehensive protection of the luminaire against...
- Page 2 RFL540-SE LED ..... max. 33.1 lb * Nominal power, for latest data refer to www.we-ef.com Windage area RFL530-SE LED ....max. 1.79 ft²...
- Page 3 3) Place the luminaire on the pole and tighten the Phase (L1) to 1, Neutral (N) to N and Earthing fixing screws B, tightening to a torque of 10 Nm (88.6 in–lb). WE-EF Supply Cable Connector Accessory Instructions ~ 2.5 in PE ~ 180° fig. 1 fig.
