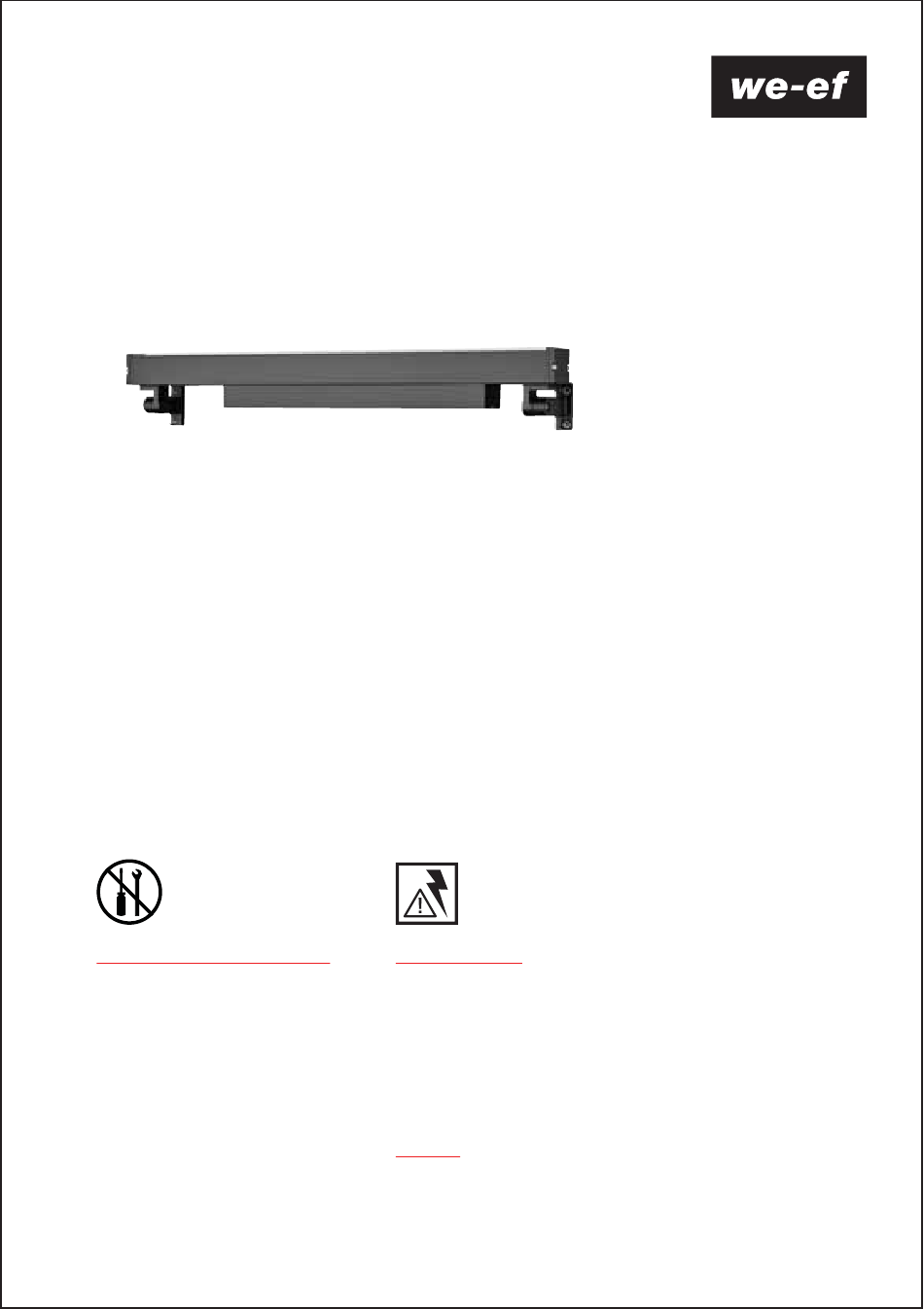

WE-EF LEUCHTEN Installation and Maintenance Instructions Linear Wallwasher VLR110 LED VLR120 LED VLR130 LED VLR140 LED VLR150 LED Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance with Refer to the instructions contained in this applicable standards.
Page 2

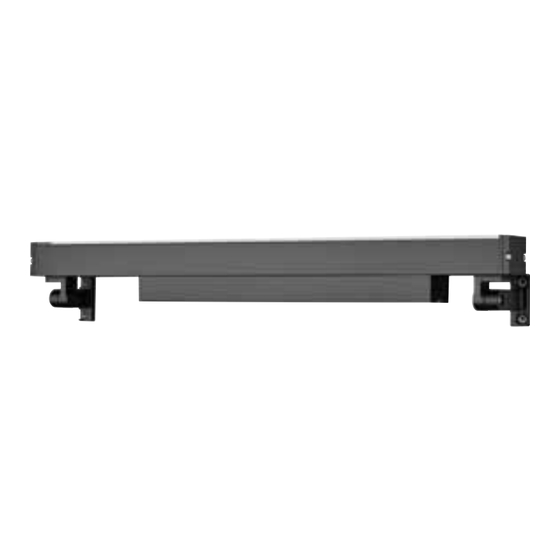

Linear Wallwasher VLR100 180° VLR100 [LA10] 180° IP66, IK08. Class I. Product Dimensions and Weight: VLR110 VLR120 VLR130 VLR140 1228 1187 ø 7.5 mm VLR150 1528 1487 VLR120 [LA10] VLR130 [LA10] 1 mm VLR140 [LA10] 1228 1178 Tool required – Screwdriver 5 mm...
In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on. Note: Do not place luminaire nor brackets in water. When luminaire should be mounted on the ground, use sealable junction box (not included, available by WE-EF).
Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Notice: longer be valid and shall become the full responsibility of the modifying person/organisation. Claims based on defects attributable to improper installation and/or application, and the consequences thereof, are excluded.
Page 5
Luminaire is factory sealed and does not need to be opened during installation. 1) Switch off the mains electrical supply. D (not supply by WE-EF). insert dowel E Attention: Make sure not to damage any electrical cable, water pipes or other devices.
Page 6
D (DALI) D (DALI) VLR110/120/130/140/150 Integral...
