WE-EF LEUCHTEN
Installation and Maintenance
Instructions

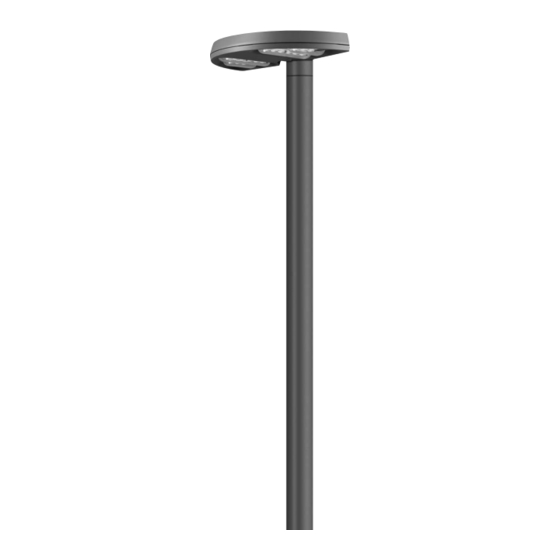

Street and Area Lighting Luminaire
RMC320 LED
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
Advertisement
Related Manuals for WE-EF RMC320 LED
Summary of Contents for WE-EF RMC320 LED
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Street and Area Lighting Luminaire RMC320 LED Do not open during installation This product is factory-sealed. Refer to the instructions contained in this document for details. Surge Protection This product features built-in surge protection circuitry in compliance with applicable standards.
-
Page 2: Maintenance
Street and Area Lighting Luminaire RMC320 IP66, IK08, Class I, ta = 40°C Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out by a suitably quali ed and trained professional. -
Page 3: Mounting Accessories
Mounting Accessories Wall bracket RM1-W for RMC320 105-9846 Short bracket – Galvanised steel. For lateral mounting on a pole. RM1-S for RMC320 105-9845 Single bracket RM1-76* for RMC320 105-9847 AMW-C Wooden pole RM1-76** for RMC320 105-9849 AMF-C Steel pole Double bracket RM2-76* for RMC320 105-9848... -
Page 4: Installation
Installation The product must be installed and maintained by a suitably quali ed professional in compliance with latest building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Notice: If the luminaire is modi ed by anybody other than the original manufacturer, then the warranty will no longer be valid and shall become the full respon- sibility of the modifying person/organisation. -
Page 5: Installation Procedure
Installation Procedure Installation – Pole 1) Switch off mains electrical supply. 2) Check that rating shown on luminaire label conforms with mains electrical supply. 3) Feed mains cable C into column D, while setting bracket/luminaire assembly in position. Tighten screws E. 4) Trim mains cable C to the desired length and con- nect the leads to their respective terminals at the base of the pole (L = Phase, N = Neutral,... - Page 6 Installation to a Pole...
- Page 7 Installation – Wall bracket Individual wiring Through wiring ON/OFF or WE-EF Control Advanced...
- Page 8 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING United Kingdom Tel +44 844 880 5346 Fax +44 844 880 5347 info.uk@we-ef.com TO9184W1017 © WE-EF 2017 Technical speci cations are subject to change.
