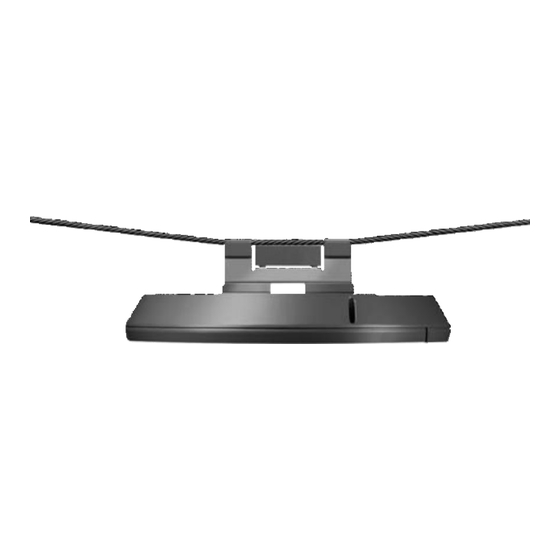

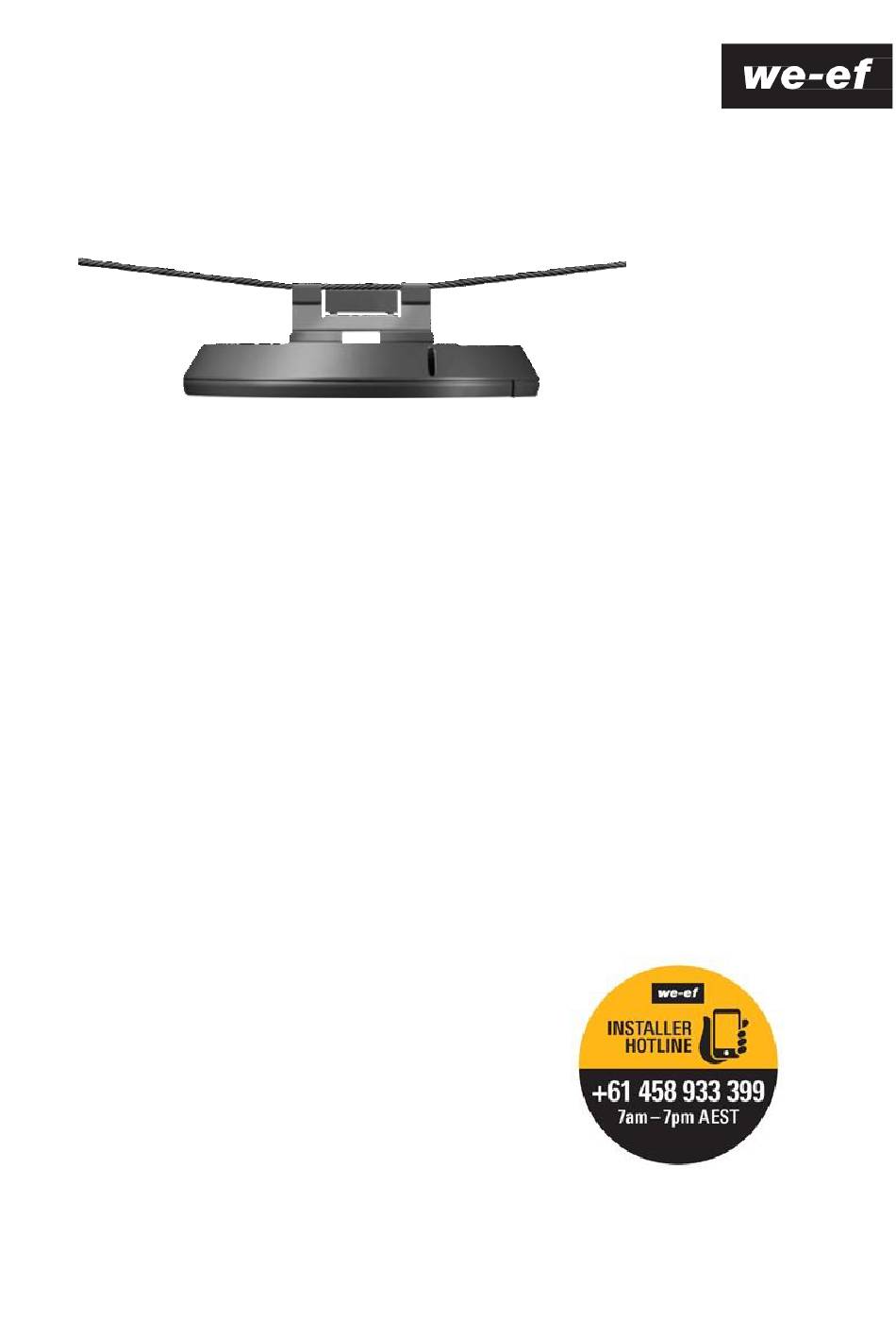

- Page 1 WE-EF LIGHTING Installation and Maintenance Instructions for Catenary mounted luminaires RFS500 LED Series...
- Page 2 This page intentionally left blank...
- Page 3 Claims based on defects attributable to improper installation and/or application, and the consequences thereof, are also excluded. If the supplied cable of the luminaire is damaged, it must be replaced by WE-EF or a WE-EF authorized agent.
- Page 4 36 LED 72W / 48 LED 96W* Installation: horizontal, light output downwards Catenary suspension, wire dia: 6-12 mm * Nominal power, for latest data refer to www.we-ef.com Catenary suspension, wire angle adjustment (incline): max. 10° Protection: IP66, IK08 Possible twisting/rotation to wire: ± 25°...
- Page 5 Installation Procedure 1) Switch off and isolate the mains electrical supply A. 2) Loosen screws of wire mounting suspension clamps B (fig.2). 3) Hang luminaire with wire mounting suspension clamps to the wire. 4) Tighten screws of clamps B. 5) In case the luminaire is not to be angled horizontally, the wire mounting suspension can get adjusted to inclinations.
- Page 6 fig. 1 10° Screw Torque max. 2,0 Nm max. 4,0 Nm max. 6,0 Nm max. 15,0 Nm max. 100,0 Nm fig. 2 fig. 3 25°...
- Page 7 This page intentionally left blank...
- Page 8 Thailand Tel +61 3 85870444 Tel +66 2 7389610 Fax +61 3 85870499 Fax +66 2 1752174 info.australia@we-ef.com info.asiapacific@we-ef.com WE-EF LEUCHTEN WE-EFLIGHTING United States of America Germany Tel +49 5194 9090 Tel +1 724 742 0030 Fax +49 5194 909299 Fax +1 724 7420035 info.germany@we-ef.com...
