WE-EF RMM320 Installation And Maintenance Instructions Manual

Street and area lighting luminaire

Download this manual

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Street and Area Lighting Luminaire

RMM320 LED

INSTALLER

HOTLINE

+61 458 933 399

7am – 7pm AEST

Do not open during installation

This luminaire is factory-sealed.

Refer to the instructions contained in this

document for details.

Surge Protection

This product is supplied with an internal or external Surge Protection Device

(SPD). Where supplied with as an external device, the SPD must be fitted to

maintain warranty conditions. The SPD is considered a consumable item and

itself is not subject to warranty when the device has failed as designed. For

comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

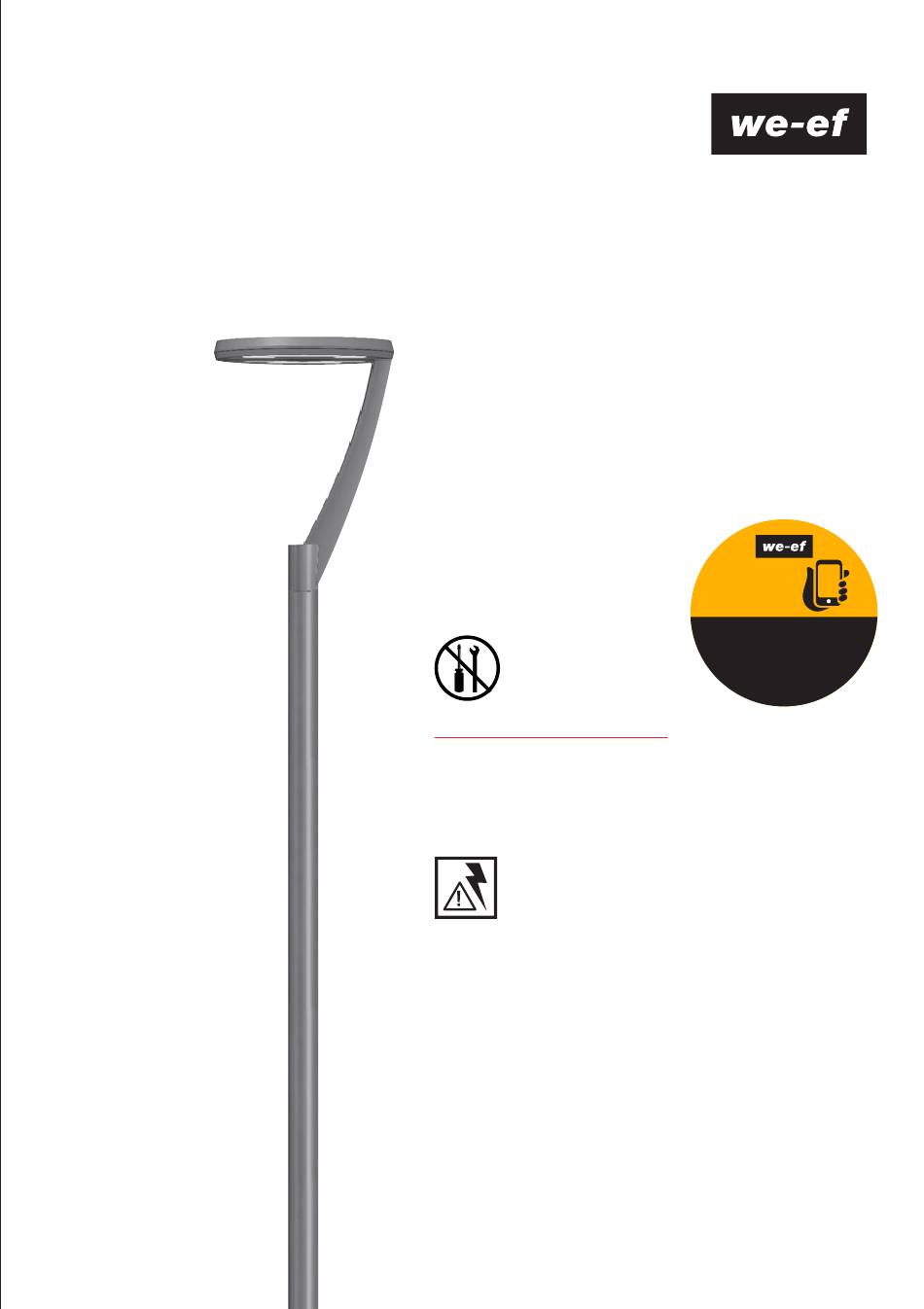

Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Street and Area Lighting Luminaire RMM320 LED INSTALLER HOTLINE +61 458 933 399 7am – 7pm AEST Do not open during installation This luminaire is factory-sealed. Refer to the instructions contained in this document for details.
Page 3 Street and Area Lighting Luminaire RMM320 (or ø 60 x 80) IP66, IK09, Class I, ta = 40°C...
Page 4: Maintenance
Do not use high- pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out under instruction from WE-EF LIGHTING or nominated representative Warning: Do not open luminaire while mains supply is switched on.
Page 5: Installation Procedure
Installation Installation Procedure The product must be installed and maintained by a 1) Switch off and isolate mains electrical supply. 2) Check that rating shown on luminaire label con- building/construction and/or electrical regulations and forms with mains electrical supply. relevant legislation. 3) Loosen screws A and remove cover B.
Page 6 Installation to a pole Supply cable...
Page 8 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING INSTALLER United Kingdom HOTLINE Tel +44 844 880 5346 +61 458 933 399 Fax +44 844 880 5347 7am – 7pm AEST info.uk@we-ef.com TO9203W1117 © WE-EF 2017 subject to change.
