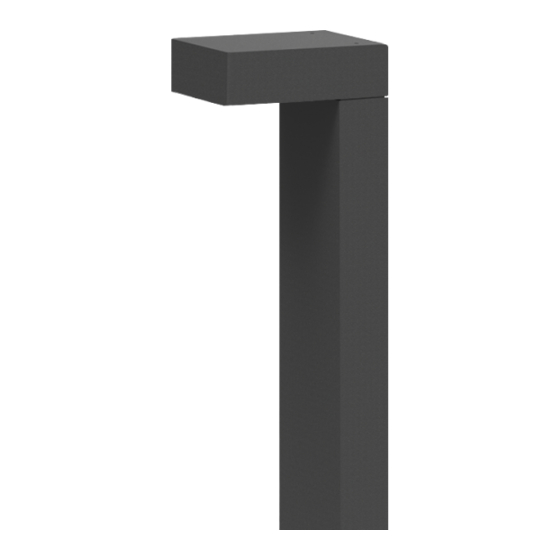

WE-EF PSY414 LED Installation And Maintenance Instructions Manual
Bollard
Hide thumbs
Also See for PSY414 LED:
Advertisement
Quick Links
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Installation tools
Mounting hardware used on this product
includes fasteners with hexalobular socket
heads (ISO 10664). Installation requires the
use of matching tools.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Bollard
PSY414 LED
PSY424 LED
PTY414 LED
PTY424 LED
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WE-EF PSY414 LED
Summary of Contents for WE-EF PSY414 LED
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Bollard PSY414 LED PSY424 LED PTY414 LED PTY424 LED Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance with Refer to the instructions contained in this applicable standards.
- Page 2 Bollard PSY414 PTY414 ø 14.5 PSY424 PTY424 1000 ø 14.5 IP66, IK10, Class I, ta = 40°C Accessories: Planted root – Galvanised steel. Weight ESV2 for PSY414/424 300-9115 for PSY414 13.3 ESV2 for PTY414/424 300-9115 for PSY424 16.1 for PTY414 14.0 ESV2 for PTY424...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on. -
Page 4: Installation
Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Notice: than the original manufacturer, then the warranty will no longer be valid and shall become the full respon- sibility of the modifying person/organisation. -
Page 5: Installation Procedure
Installation Procedure It is recommended to incorporate the optional planted root to ensure maximum stability. 1) Switch off mains electrical supply. 2) Remove sleeve A from post B. 4) Lift tab H and remove terminal box cover C as plate E with M12 bolts/nuts to ground. Ensure shown. - Page 6 5) Check that rating shown on luminaire label 6) Pull cable D (and second cable for through wir- conforms with mains electrical supply. ing, if required) through membrane spout(s) F and terminate in terminal block G. Lock cable(s) 08/18 IP66 with strain relief(s).
- Page 7 9) Align sleeve A 10) Remove countersunk screws J from head K with (good and bad engagement). Torx 25 tool (supplied by WE-EF). 11) Hold head K under arm. Grab socket L, connect 12) Place head K over sleeve A and check for and tighten with plug M.
- Page 8 13) Tighten recessed screws N gradually in 14) Return countersunk screws J into head and alternating sequence (6 Nm) with Torx 30 tool tighten. (supplied by WE-EF).
- Page 9 WE-EF HELVETICA WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9245W0520 © WE-EF 2020 subject to change.
- Page 10 WE-EF LEUCHTEN Installation and Maintenance Instructions Planted Root ESV4 ESV2 ESV6...
- Page 11 Planted Root ESV4 300-0461 ESV4 300-0464 Suitability Suitability 1. KTX234 1. CFY259 2. KTY234 2. GRY234 3. ZFY230 3. RRY324 4. GRY224 4. RRZ324 5. Short post 5. XRY324 6. XRZ324 ESV4 300-0586 ESV4 300-0459 Suitability Suitability 1. XRY334 1. QSI254 2.
- Page 12 Planted Root ESV2 300-9115 ESV6 300-0457 Suitability Suitability 1. PSY414/424 1. LTM440 2. LTM444 3. AMW-C 4. AMF-C 5. AMF-S 6. AML-C ESV6 300-0824 Suitability 1. AML-C 2. FLA461...
-
Page 13: Installation Instruction
Installation Instruction 1) Note: It is the responsibility to installer to 2) Please note, ESV4 and ESV6 must be ensure the suitability of the ESV planted root orientated correctly for different products. for any local or national structural requirements In both instances conduit entry can be rotated for installation, and that planted root is suitable to match cable routing. - Page 14 5) For all other product that use ESV6 please orientate planted root as shown (base plate connections/conduit. is parallel to the pathway). For this installation, use 40 mm long M16 bolts supplie. 7) Place the ESV in the form work for concrete 8) Fit the nominated bolts through mounting pad, ensuring orientation, position and levels are correct.
- Page 15 9) Pour concrete to desired level depending on requirement of soil, paver or concrete. Ensure (as per luminaire instructions) onto mounting Concrete Paver Soil...
- Page 16 WE-EF HELVETICA WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9257W0420 © WE-EF 2020 subject to change.
