SMC Networks ITV1000 Series Operation Manual page 7

Switch setting
■ Safety Instructions for Setting
Turn off the power supply while setting the switch.
・ If there is foreign matter or water droplets around the switch cover, clean it off before
opening the cover.
・ Refer to the drawing below for the setting at the time of shipment from the factory. Confirm
the condition of switches before use and reset if necessary.

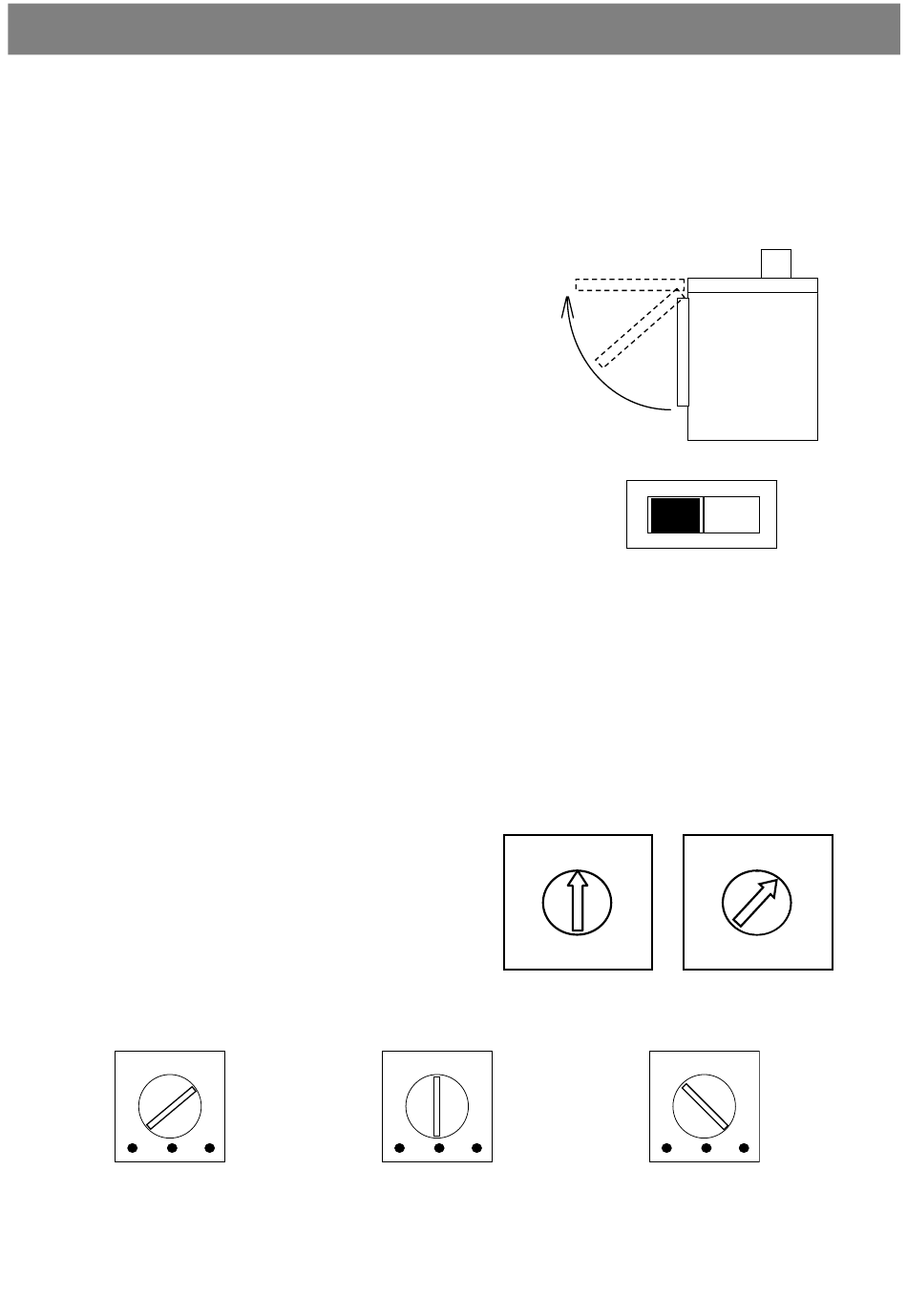

■ Setting procedure
①Loosen the screw(s) of the switch cover.
②Open the cover from the bottom upwards
(See drawing on the right)
③Set switch, referring to the setting
procedure below.
④After setting the switch, tighten the
switch cover in the reverse order of the
above procedure.
(Tightening torque 0.6 to 0.8Nm)
■ Selection of ADDRESS setting mode
Node address of the product can be set by
software mode (SW) and hardware mode (HW).
When software mode is selected, the node address is set by the communication master. Setting
range is 1 to 125.
The device supports Set̲Slave̲Address̲Supp function. But the "no further changed
allowed"function is not included.
Refer to setting procedure below when hardware mode is selected (condition at the time of
shipment : The switch is installed on the left HW)
■ ADDRESS set switch
Hardware mode can set node address by the
switch on the right.
・Address setting range is 01 to 99.
・Setting at the time of shipment is 01.
■ Setting the terminator
Set PROFIBUS communication line terminator.
With terminator(At shipment) W/O W/O
・When the product is connected to the terminal of PROFIBUS communication line, be sure to
set it to "with terminator".
９０°
Ｎ
O
HW／SW
0
9
8
7
6
5
×１０ ×１
―7―
0
1
9
2
8
3 7
6
4
5
1
2
3
4
