Bartec BCS36x8ex Series Frequently Asked Questions Manual

Picklist mode for touch & mobile computer, barcode scanner
Hide thumbs Also See for BCS36x8ex Series:
Table of Contents

Advertisement

Quick Links

Download this manual
FAQ - Frequently Asked Questions
Touch & Mobile Computer
Barcode Scanner
Picklist Mode
Relevant for
 Mobile Computer MC27
 Mobile Computer MC92N0
 Mobile Computer MC93
 Touch Computer TC26
 Touch Computer TC77
 Barcode Scanner BCS36x8
Status: May 2022
Reservation: Technical data subject to change without notice. Changes, errors and
misprints may not be used as a basis for any claim for damages.
BARTEC
GmbH
Max-Eyth-Straße 16
Fon: +49 7931 597-0
97980 Bad Mergentheim
Fax: +49 7931 597-119
GERMANY
-NI
ex
series
ex
-NI
ex
-NI
ex
-NI
ex
series
ex
Support:
em-support@bartec.com
Download:
http://automation.bartec.de
Internet:
www.bartec.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCS36x8ex Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bartec BCS36x8ex Series

Summary of Contents for Bartec BCS36x8ex Series

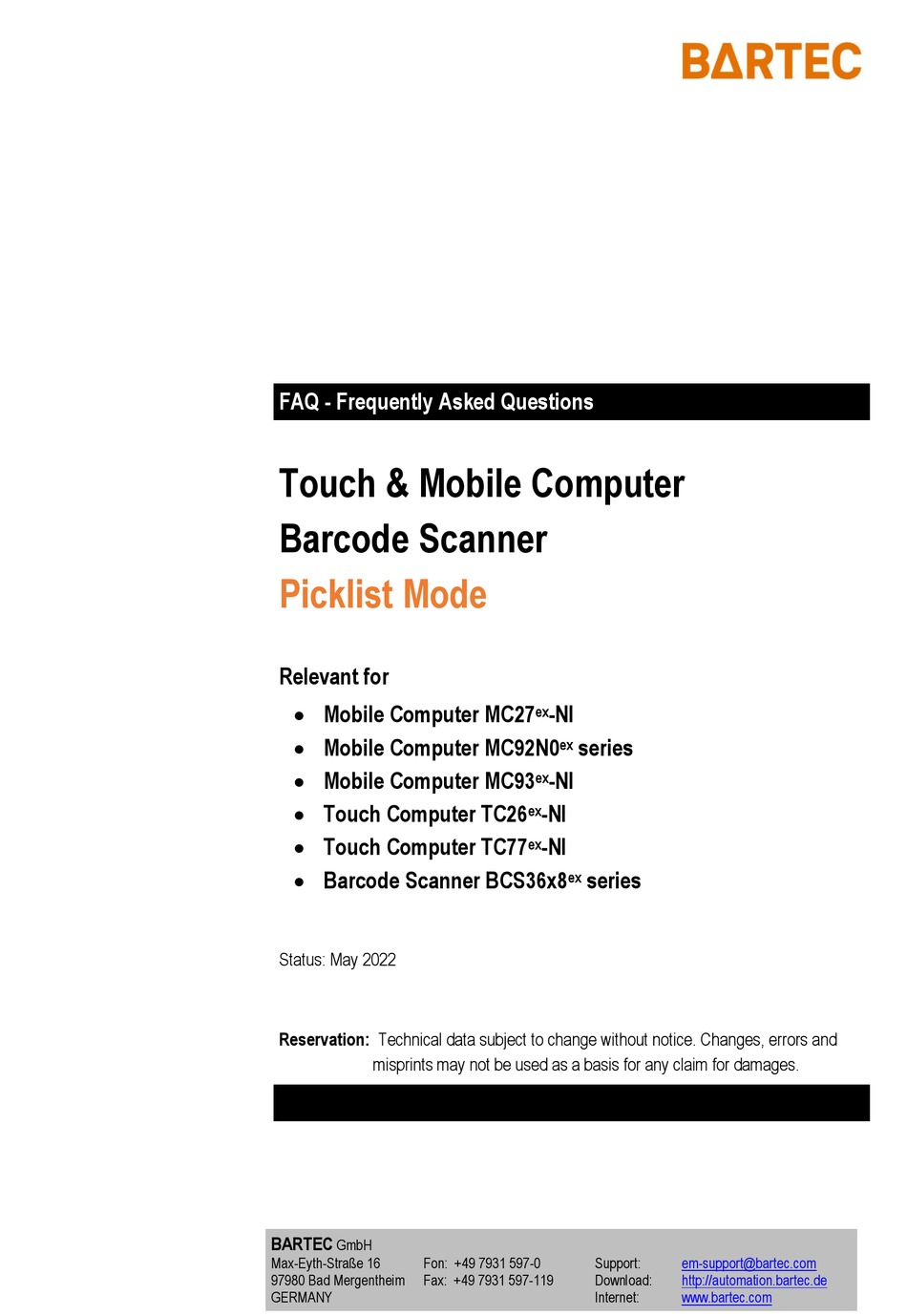

  • Page 1  Barcode Scanner BCS36x8 series Status: May 2022 Reservation: Technical data subject to change without notice. Changes, errors and misprints may not be used as a basis for any claim for damages. BARTEC GmbH Max-Eyth-Straße 16 Fon: +49 7931 597-0 Support: em-support@bartec.com...

  • Page 3: Table Of Contents

    Touch & Mobile Computer & Barcode Scanner Table of content FAQ: Picklist Mode Information of this FAQ ........................2 Reference documents ...................... 2 About Picklist Mode ..........................3 Enabling Picklist Mode on the BCS3608 & BCS3678 ..............5 Issue/Question ......................... 5 Applicable to ........................

  • Page 4: Information Of This Faq

    Reference documents All documents are available online from the following websites: BARTEC: www.bartec.com https://automation.bartec.de/mobileE.htm Document BARTEC Explanation Quick Start Guide or User Manual It contains: (BARTEC):  Guidelines on commissioning and the safe use of...

  • Page 5: About Picklist Mode

    It allows users to easily select and scan a single barcode from a field of barcodes. Picklist mode is available on the following BARTEC devices: Device:...
  • Page 6 FAQ: Picklist Mode Detailed information about the use of all functions can be found in the appropriate Zebra User or Integrator manual or on their Tech Docs page. All documents are available online from the following websites: BARTEC: www.bartec.com https://automation.bartec.de/indexE.htm Zebra: https://www.zebra.com/us/en/support-downloads.html...

  • Page 7: Ex & Bcs3678 Ex

    Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode Enabling Picklist Mode on the BCS3608 & BCS3678 Issue/Question How to enable picklist mode in BCS3608 & BCS3678 Applicable to All devices of BCS3608 & BCS3678 series. Resolution / Answer Two options available to program it: 1.

  • Page 8: Using Programming Barcodes

    Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode 3.3.1 Using Programming barcodes Parameter # 402 (SSI # F0h 92h). Scan one of the following picklist modes for the digital scanner: 3.3.2 Using 123 Scan Utility 123 Scan Utility is a freeware utility available on the Zebra support & download page. https://www.zebra.com/us/en/products/software/scanning-systems/123scan.html ...
  • Page 9 Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode Subject to technical changes. Subject to technical changes. 7/22 09/2020 05/2022...

  • Page 10: Enabling Picklist Mode On Android 11 Device Using Datawedge

    Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode Enabling Picklist Mode on Android 11 device using DataWedge Issue/Question How to enable picklist mode in TC26 -NI, TC77 -NI, MC27 -NI & MC93 -NI using Datawedge? Applicable to All devices running with Android 11. Instruction is created on TC77 -NI with the following software version.

  • Page 11: Resolution / Answer

    Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode Resolution / Answer Steps: 1. Go to the app menu, and start “DataWedge”. 2. Select the target profile on the profile screen, for example “Profile0”. Subject to technical changes. Subject to technical changes. 9/22 09/2020 05/2022...
  • Page 12 Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode 3. Scroll down the page on Profile0 and select “Configure scanner settings”. 4. Scroll down the page on “Configure scanner settings”. and select “Reader params”. Subject to technical changes. 10/22 05/2022...
  • Page 13 Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode 5. Select “Picklist” which is disabled by default. 6. Select the hardware or software picklist option. - Hardware Picklist - Picklist mode is enabled by sending a command to hardware. - Software Picklist - Picklist feature is handled in the software;...
  • Page 14 Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode 7. Exit DataWedge. Subject to technical changes. 12/22 05/2022...

  • Page 15: Enabling Picklist Mode On Mc92N0 With Android Or Windows Using Datawedge

    Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode Enabling Picklist Mode on MC92N0 with Android or Windows using DataWedge As reference you can use the following Zebra Article ID: 86617725 https://www.zebra.com/us/en/support-downloads/knowledge-articles/evm/Enable-Picklist- mode.html Issue/Question  How to enable Picklist mode on Windows CE 7.0 or WEH 6.5 installed with a 2D imager? ...

  • Page 16: Datawedge For Windows (Weh 6.5.3 Or Ce 7.0)

    Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode 5.3.1 Datawedge for Windows (WEH 6.5.3 or CE 7.0) Procedure: 1. Open DataWedge setting. 2. Tap Basic configuration. 3. Tap Scanner input. Subject to technical changes. 14/22 05/2022...
  • Page 17 Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode 4. Tap on the displayed internal scanner (example, Blockbuster Imager or Long-range Imager). 5. Select Reader Params > More > Picklist mode. 6. Select Hardware or Software reticle to enable it. Enable Hardware reticle Enable Software reticle Subject to technical changes.
  • Page 18 Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode 7. Tap Back until you see the message "saving changes, please wait...". 8. Tap Home, then Exit. 9. Tap OK to close DataWedge settings. Subject to technical changes. 16/22 05/2022...

  • Page 19: Datawedge For Android 4.4.4

    Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode 5.3.2 Datawedge for Android 4.4.4 Procedure: 1. Go to app menu. 2. Open DataWedge setting. 3. Select the target profile (example: Profile0). Subject to technical changes. Subject to technical changes. 17/22 09/2020 05/2022...
  • Page 20 Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode 4. Scroll down and select Reader params. If not available, scroll down and select Configure scanner settings. 5. Select Picklist, which is disabled by default. Subject to technical changes. 18/22 05/2022...
  • Page 21 Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode 6. Select Hardware or Software Picklist to enable it. Enable Hardware Enable Software 7. Exit DataWedge. Subject to technical changes. Subject to technical changes. 19/22 09/2020 05/2022...

  • Page 22: Enable Picklist Mode In Velocity Client (All Touch Te)

    Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode Enable Picklist Mode in Velocity Client (All touch TE) As reference you can use the following Zebra Article ID: 73236413 https://www.zebra.com/us/en/support-downloads/knowledge-articles/evm/Enable-Picklist-mode- in-Ivanti-Velocity-Client-All-touch-TE.html Issue/Question How to enable Picklist mode in Velocity Client? How to enable Picklist mode in All-touch Terminal Emulation (ATTE)? Applicable to MC92N0...

  • Page 23: Resolution / Answer

    Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode Resolution / Answer Procedure: 1. Launch Velocity Console v2.0.8 or higher. Download File>> 2. Create or modify existing project. 3. Select Scanner then clicks on New to create a new Zebra scanner profile. Subject to technical changes.
  • Page 24 Touch & Mobile Computer & Barcode Scanner FAQ: Picklist Mode 4. Under Reader Settings look for Picklist and set it to Software. Default is Disabled. 5. Click OK to close the Zebra scanner profile. 6. On the upper-left of the Velocity console, click on the Save button to save the project.
