Summary of Contents for Bartec 6727-61

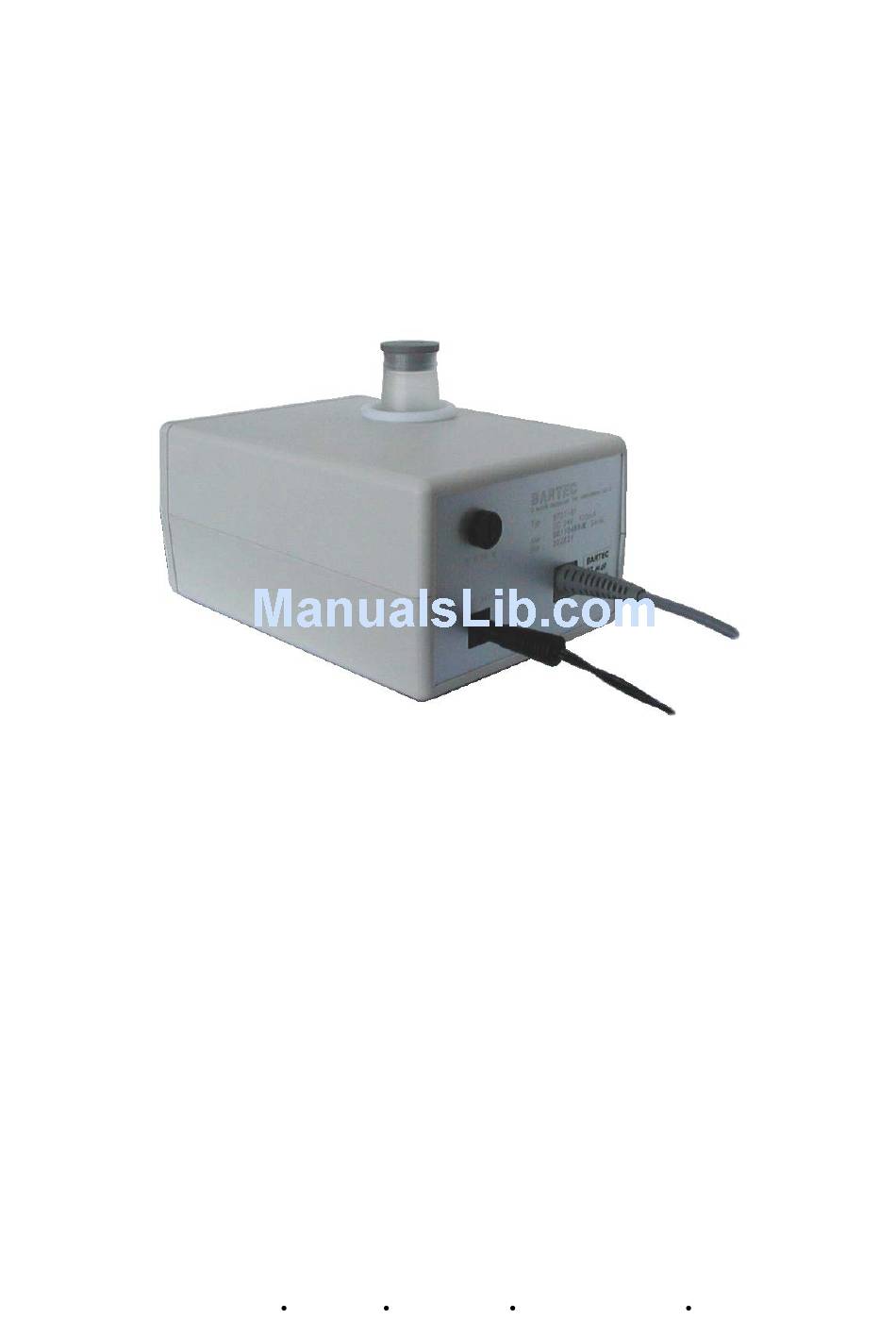

- Page 1 Desk reader for barcode bottles Type 6727-61 Operating instruction BA 021212 BARTEC GmbH Schulstraße 30 D-94239 Gotteszell Phone +49 (0) 99 29-301-0 Telefax 301-112...
-
Page 3: Table Of Contents
Replace the fuse__________________________________________ 5-2 Appendix______________________________________________ 6-3 Configuration tags for devices with RS 232 interface __________________ 6-3 Configuration tags for devices with keyboard interface _________________ 6-5 Configuration for barcode type Code128 __________________________ 6-7 Desk reader for barcode bottles type 6727-61 BA 021212... - Page 4 Schulstraße 30 without th express written permission of BARTEC. D-94239 Gotteszell Document: BA 021212 Valid as from: 12.00 Revision: Updated: Authors: R. Kopp/ G. Rothe Translator: Evi Bauernfeind Desk reader for barcode bottles type 6727-61 BA 021212...
- Page 5 Contents I - 3 Desk reader for barcode bottles type 6727-61 BA 021212...
-
Page 7: Device Description
The device is connected to a commercial PC via the RS 232 interface or via the keyboard interface. Construction Sample bottle Container for sample bottle to be read Connection to PC Fuse 0.5 A M) (RS 232 or key- board interface) Connection supply voltage DC 24 V Desk reader for barcode bottles type 6727-61 BA 021212... -
Page 8: Interfaces And Connections
RS232 connection: Standard PC RS232 connection 9-pole Assignment: SUB-D 9pol. Designation Pin 1 not assigned Pin 2 Pin 3 Pin 4 not assigned Pin 5 Pin 6 not assigned Pin 7 Pin 8 Pin 9 not assigned Desk reader for barcode bottles type 6727-61 BA 021212... -
Page 9: Technical Data
Pin 4 Pin 5 + 5 V Keyboard IBM PC PS/2 Assignment 6-pole plug Assignment Pin 1 Data Pin 2 Pin 3 Pin 4 + 5 V Pin 5 Pin 6 Desk reader for barcode bottles type 6727-61 BA 021212... - Page 10 Plug-in power supply unit 115 V/24 V, 0.30 A hollow plug, type 4312-8.2 U 010 1 243 1282 Bottle guiding device, type 6727-00-059 2 037 05 Bottle carrier, type 6727-00-60 2 037 06 Desk reader for barcode bottles type 6727-61 BA 021212...
-
Page 11: Safety Requirements
• Make sure that no liquids can get into the the housing! Disclaimer BARTEC will not be responsible for damages resulting from the fact that safety instructions aren´t ob- served or that the operating instruction or the operating conditions are disregarded. - Page 12 Safety requirements Desk reader for barcode bottles type 6727-61 BA 021212...
-
Page 13: Installation
The device is connected to the PC via the RS 232 with a 9-pole cable. If the serial interface of the PC is 25-pole, an appropriate adapter plug has to be used. Connection to free COM1 / serial interface COM2, 9-pole) Desk reader for barcode bottles type 6727-61 BA 021212... -
Page 14: Connection Via Keyboard Interface
Plug in the new cable until it snaps into place. After the interface cable has been replaced, the device has to be reinitialized (see 4.2 and 4.3). Desk reader for barcode bottles type 6727-61 BA 021212... -
Page 15: Operation
Enter a name for the new connection in the following window, select an icon and click [OK]. • On the “Connect via“ list box in the following window, select the serial interface by means of which you have connected the barcode reader to the PC. Desk reader for barcode bottles type 6727-61 BA 021212... - Page 16 Now the program is installed. From now on you can start the program with a double-click on the icon you have selected. It is in the folder c:\programs\accessories\HyperTerminal. You can also shift the icon to the desktop and start the program directly from there. Desk reader for barcode bottles type 6727-61 BA 021212...
-
Page 17: Configuration (Initialization) For Devices With Rs 232 Interface
10. Take the bottle with the configurations tag out of the device. The configuration is completed now. 11. For testing, put a “normal“ milk sample bottle into the device. The barcode should be read and displayed on the screen now. Desk reader for barcode bottles type 6727-61 BA 021212... -
Page 18: Configuration (Initialization) For Devices With Keyboard Interface
The barcode has to be read in now. The device acknowledges this with an acoustic signal. Now read in the remaining codes one after the other (2, 3, 4, 5, 6, 7, 8, 9, 10) Desk reader for barcode bottles type 6727-61 BA 021212... -
Page 19: Read Barcodes
If there is an error (e.g. a readable barcode in proper working condition is not read or is not transmit- ted to the PC), the device has to be reinitialized depending on the device type (see 4.2 or 4.3). Desk reader for barcode bottles type 6727-61 BA 021212... - Page 20 Operation Desk reader for barcode bottles type 6727-61 BA 021212...
-
Page 21: Maintenance
If necessary, you can use a detergent (window cleaning fluid, spirit). Put back the container so that the opening on the upper part of the container faces the window of the barcode reader. Desk reader for barcode bottles type 6727-61 BA 021212... -
Page 22: Replace The Fuse
Replace the fuse If the fuse has to be replaced, unscrew the fuse holder by means of a screw driver. Replace the defec- tive fuse by a new one (0.5 A M.). Desk reader for barcode bottles type 6727-61 BA 021212... -
Page 23: Appendix
Appendix Appendix Configuration tags for devices with RS 232 interface (copy and cut out) Desk reader for barcode bottles type 6727-61 BA 021212... - Page 24 Appendix Desk reader for barcode bottles type 6727-61 BA 021212...
-
Page 25: Configuration Tags For Devices With Keyboard Interface
Appendix Configuration tags for devices with keyboard interface (copy and cut out) oder Desk reader for barcode bottles type 6727-61 BA 021212... - Page 26 Appendix Desk reader for barcode bottles type 6727-61 BA 021212...
-
Page 27: Configuration For Barcode Type Code128
Wait for a short time until the device has acknowledged the command with an acoustic signal. The configuration is completed now. For testing, put a milk sample bottle with Code 128 into the device. Now the barcode should be read and displayed on the screen. Desk reader for barcode bottles type 6727-61 BA 021212...
