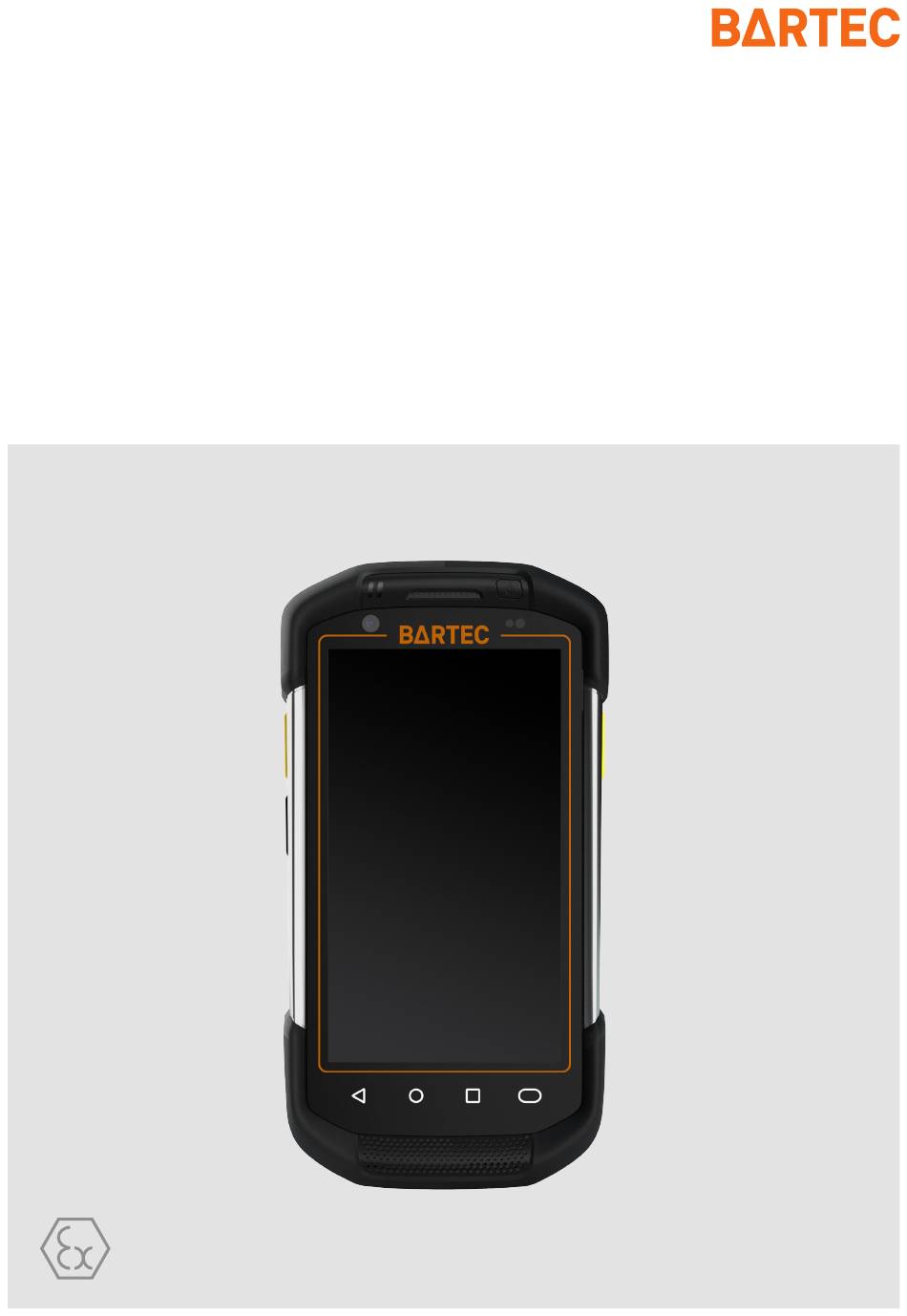

- Page 1 Touch Computer TC77 Quick Start Guide...
- Page 3 Status: January 2021 Proviso: Subject to technical changes. Changes, mistakes and printing errors do not substantiate any claim to damages. Content Pages English 1-36 BARTEC GmbH Max-Eyth-Straße 16 Fon: +49 7931 597-0 Support: em-support@bartec.com 97980 Bad Mergentheim Fax: +49 7931 597-119 Download: http://automation.bartec.de...
-
Page 5: Table Of Contents
TC77 - Touch Computer Table of content Type B7-A26*-***3/******** Basic safety information ........................1 Information on this Quick Start Guide ................1 1.1.1 Languages ........................2 1.1.2 Changes in the document ....................2 1.1.3 Registered trademarks ..................... 2 Handling the product ......................2 Intended use ........................ - Page 6 TC77 - Touch Computer Table of content Type B7-A26*-***3/******** Operation ............................. 21 Handling accessories ..................... 21 7.1.1 Insert SIM card ....................... 21 7.1.2 Insert microSD card ......................24 7.1.3 Insert/change battery ...................... 26 7.1.4 Charging the Main battery ....................29 7.1.5 Charging the spare battery .....................
-
Page 7: Basic Safety Information
The BARTEC company reserves the right to carry out technical changes at any time. In no event will BARTEC company be responsible or liable for indirect or consequential damages resulting from the use or application of this Quick Start Guide. -
Page 8: Languages
1.1.2 Changes in the document BARTEC reserves the right to change the content of this document without notification. No warranty is assumed for the correctness of the information. In cases of doubt, the German safety instructions apply because it is not possible to rule out errors of translation or printing. -
Page 9: Intended Use
TC77 - Touch Computer Basic safety information Type B7-A26*-***3/******** Intended use 1.3.1 Exclusive purpose The Touch Computer series is a handheld piece of electrical equipment. It serves the purpose of the mobile recording, processing and/or radio transmission of data within potentially explosive atmospheres. -
Page 10: Maintenance
Repairs Repairs to explosion-protected devices may only be performed by authorised personnel with original spare parts and according to the state of the art. Therfore all repairs to the Touch Computer have to conducted by BARTEC. 1.6.4 Commissioning It must be checked that all components and documents are available before commissioning. -
Page 11: Warranty
The information contained herein refers to the explosion-protected version of the Touch Computer TC77 -NI. This Quick Start Guide contains all important information on the subject of explosion protection. Further product information on handling and commissioning can be found on the BARTEC support page: https://automation.bartec.de/mobileE.htm Subject to technical changes. 5/36... -
Page 12: Co-Applicable Documents
Co-applicable documents All documents are available online from the following websites: BARTEC: www.bartec.com or http://automation.bartec.de ZEBRA: www.zebra.com In the event of an overlaps with Zebra, the instructions of BARTEC apply. Document BARTEC Explanation Quick Start Guide The safety relevant information, initial use... -
Page 13: Configuration
Android 10 Operating system The TC77 -NI is compatible up to Android R and is delivered by BARTEC according to the currently available Android version. WLAN IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w Bluetooth ISO 14443 Type A and B; F; FeliCa and ISO 15693 cards; P2P... -
Page 14: Product Description
The TC77 -NI is a tough Touch Computer with 4.7" color display, which has been designed for use in the industrial environments and especially developed by BARTEC in close cooperation with ZEBRA for use in potentially explosive atmospheres. Purpose of use The Touch Computer TC77 -NI are handheld electrical devices. -
Page 15: Structure
TC77 - Touch Computer Structure Type B7-A26*-***3/******** Structure Displays all information needed to operate the device. Touch Screen Initiates data capture (programmable). Scan Button Initiates push-to-talk communications (programmable). PTT Button Back Button Displays the previous screen. Displays the Home screen with a single press. Home Button On device with GMS, opens the Google Now screen when held for a short period of time. - Page 16 TC77 - Touch Computer Structure Type B7-A26*-***3/******** Provides USB host and client communications, audio and device charging Interface Connector via cables and accessories. Provides data capture using the imager. Exit Window Use during video recording and for noise cancellation. Microphone Initiates data capture (programmable).
-
Page 17: Technical Data
TC77 - Touch Computer Technical data Type B7-A26*-***3/******** Technical data Explosion protection ATEX Zone 2 / Zone 22 Type B7-A26*-***3/******** TC77 Labelling Ex II 3G Ex ic op is IIC T5 Gc Ex II 3D Ex ic op is IIIB T100 °C Dc -20 °C ≤... -
Page 18: Features
Performance features Qualcomm Snapdragon 660 Octa-core, 2.2 GHz Operating system Android 10 Hardware is compatible up to Android R and is delivered by BARTEC according to the currently available Android version. Memory 4 GB RAM; 32 GB Flash Extension slot... -
Page 19: User Environment
TC77 - Touch Computer Technical data Type B7-A26*-***3/******** 4.2.3 User environment Operating temperature -20 °C to +50 °C ( -4 °F to +122 °F) Charging temperature 0 °C to +40 °C (+32 °F to +104 °F) Storage temperature -40 °C to +70 °C (-40 °F to +158 °F) (without battery) Relative humidity... -
Page 20: Battery
TC77 - Touch Computer Technical data Type B7-A26*-***3/******** Battery The life of the battery will depend on different use factors and the device settings, e.g.: Use and setting of WLAN/Bluetooth Background lighting/screensaver The settings in power management Use and setting of scanner ... -
Page 21: Product Labelling
TC77 - Touch Computer Technical data Type B7-A26*-***3/******** Product labelling 4.4.1 Touch Computer Laser warning Type label Subject to technical changes. 15/36 01/2021... -
Page 22: Battery
TC77 - Touch Computer Technical data Type B7-A26*-***3/******** 4.4.2 Battery Battery marking Subject to technical changes. 16/36 01/2021... -
Page 23: Transport And Storage
Replace the battery if the operating time has shortened considerably. The standard warranty period for all BARTEC batteries is six months, whereby it is irrelevant whether the battery was acquired separately or was contained in the scope of the delivery of the Touch Computer. -
Page 24: Commissioning
TC77 - Touch Computer Commissioning Type B7-A26*-***3/******** Commissioning DANGER Avoid electrostatic charging in potentially explosive atmosphere. Danger to life in explosive atmosphere! Do not dry wipe or clean the devices. Wear suitable clothing and shoes. Do not use rubber gloves or similar. ... - Page 25 Accessories Only install or replace accessories outside the potentially explosive atmosphere. User accessories exclusively which have been tested or certified by BARTEC for this purpose. The end user can replace the MicroSD card, the nano SIM cards, the screen protector, ...
-
Page 26: First Steps
TC77 - Touch Computer Commissioning Type B7-A26*-***3/******** First steps Unpack the Touch Computer. Insert and charge the battery into the Touch Computer. charge the battery and then insert it into the Touch Computer. Use one of the following accessories to charge: Charging process Battery Description... -
Page 27: Operation
Operation Handling accessories DANGER Non certified accessories endanger explosion protection. Danger to life exists in potentially explosive atmospheres! Only use original accessories from BARTEC. Only permitted outside the potentially explosive atmosphere: Insert/replace nano SIM cards. Insert/replace microSD card. - Page 28 TC77 - Touch Computer Operation Type B7-A26*-***3/******** Position of the SIM slots in the TC77 -NI. Slide the SIM card holder to the unlock position. Lift the SIM card holder door. Place the nano SIM card into the card holder with contacts facing down. Subject to technical changes.
- Page 29 TC77 - Touch Computer Operation Type B7-A26*-***3/******** Close the SIM card holder door and slide to the lock position. Replace the access door. 10. Access door must be replaced and securely seated to ensure proper device sealing. Subject to technical changes. 23/36 01/2021...
-
Page 30: Insert Microsd Card
TC77 - Touch Computer Operation Type B7-A26*-***3/******** 7.1.2 Insert microSD card ATTENTION Damage to the microSD card through electrostatic discharges! Use an antistatic base. Ensure that the operator is correctly earthed. Work steps: Only install or replace the microSD card outside the potentially explosive atmosphere. Remove the hand strap, if installed. - Page 31 TC77 - Touch Computer Operation Type B7-A26*-***3/******** Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each side of the door. Close the microSD card holder door and slide the door to the Lock position. Replace the access door.
-
Page 32: Insert/Change Battery
The battery (Type B7-A2Z0-0072) may only be inserted/changed outside the hazardous area. Use only batteries which have been tested or certified by BARTEC for this purpose. Insert the battery, bottom first, into the battery compartment in the back of the device. - Page 33 ATTENTION Incorrect handling may cause damage to property! Use only batteries which have been tested or certified by BARTEC for this purpose. If the battery change takes longer than 2 minutes, switch off the TC77 -NI with ...
- Page 34 TC77 - Touch Computer Operation Type B7-A26*-***3/******** Lift the battery from the device. Insert the replacement battery, bottom first, into the battery compartment in the back of the device. 10. Press the battery down until the battery release latch snaps into place. 11.
-
Page 35: Charging The Main Battery
TC77 - Touch Computer Operation Type B7-A26*-***3/******** 7.1.4 Charging the Main battery 7.1.4.1 In Base station Charge the battery only outside hazardous areas. Connect the base station to a power source. Place the bottom of the device into the base station. Rotate the top of the device until the connector on the back of the device mates with the connector on the cradle. -
Page 36: Charging The Spare Battery
TC77 - Touch Computer Operation Type B7-A26*-***3/******** 7.1.5 Charging the spare battery 7.1.5.1 In Base station Charge the battery only outside hazardous areas. Connect the base station to a power source. Insert the battery into the right slot to begin charging. Ensure the battery is seated properly. - Page 37 TC77 - Touch Computer Operation Type B7-A26*-***3/******** 7.1.5.3 Charge LED Indicator Status Indications • The battery is not charging. • The battery is not inserted correctly in the base station/battery charging station. • Base station/battery charging station is not powered. Slow Blinking Amber Battery is charging.
-
Page 38: Scanning
TC77 - Touch Computer Operation Type B7-A26*-***3/******** Scanning Ensure that an application is open on the device and a text field is in focus (text cursor in text field). Point the top of the device at a barcode. Press and hold the Scan button or trigger. The red laser aiming pattern turns on to assist in aiming. -
Page 39: Disposal
Disposal Touch Computer and accessories contains metallic and plastic parts and electronic components. WEEE registration number of the BARTEC GmbH: DE 95940350 TAs professional electrical devices, our devices are intended exclusively for commercial use, so-called B2B devices, in accordance with the WEEE Directive. The WEEE Directive provides the framework for the treatment of old electrical equipment throughout Europe. -
Page 40: Eu Declaration Of Conformity
EU Declaration of TC77 - Touch Computer Conformity Type B7-A26*-***3/******** EU Declaration of Conformity Subject to technical changes. 34/36 01/2021... - Page 41 TC77 - Touch Computer EU Declaration of Type B7-A26*-***3/******** Conformity Subject to technical changes. 35/36 01/2021...
-
Page 42: Notes
TC77 - Touch Computer Notes Type B7-A26*-***3/******** Notes Subject to technical changes. 36/36 01/2021... - Page 44 BARTEC BARTEC GmbH Max-Eyth-Str. 16 97980 Bad Mergentheim Germany Phone: +49 7931 597-0 info@bartec.com bartec.com...
