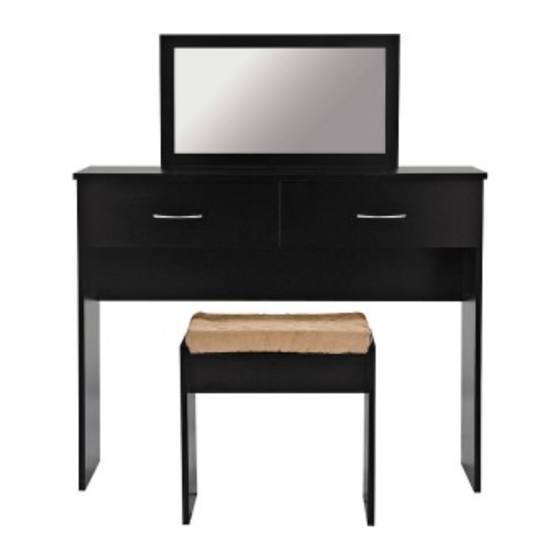

Cheval - Dresser and Stool
Assembly Instructions -
Dresser
Dimensions
Width - 97cm
Depth - 36cm
Height - 78cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
Stool
Dimensions
Width - 43cm
Depth - 35.5cm
Height - 48cm
152/6435
147/6695
151/5154
151/2621
MADE IN
BRITAIN
Issue 2 - 13/03/14
Advertisement
Related Manuals for Argos Cheval 152/6435
Summary of Contents for Argos Cheval 152/6435
- Page 1 Cheval - Dresser and Stool Assembly Instructions - 152/6435 Please keep for future reference 147/6695 151/5154 151/2621 Dresser Stool Dimensions Dimensions Width - 97cm Width - 43cm Depth - 36cm Depth - 35.5cm MADE IN Height - 78cm Height - 48cm BRITAIN Important - Please read these instructions fully before starting assembly...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 28kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (D2757A) (970 x 360mm) Left Side Right Side Upright Left Support (D2771A) (D2756A) (D2759A)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Note: The right drawer Prepare the 2 drawer front has a shallow fronts identification mark. Screw 2 metal dowels into each of the drawer fronts Note: Tighten the metal...
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 7 Fit the wedgefixes Turn the 2 drawer assemblies over and slide 2 wedgefixes into the front and back grooves, as shown, and tighten up the screws. Step 8 Prepare the left side Place a runner the left side shown.
- Page 8 Assembly Instructions Step 9 Prepare the right side Place a runner the right side shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Insert 2 large locking nuts into the right side Note: The arrow on the Finished...
- Page 9 Assembly Instructions Step 10 Prepare the modesty Insert 4 large locking Finished nuts into the modesty bottom edge Note: The modesty can have a plain chipboard surface. Step 11 Fit the modesty to the Finished left side front edge Push the modesty onto the left side Use a screwdriver to tighten the 2 large...
- Page 10 Assembly Instructions Step 12 Fit the right side Push the right side onto the modesty Use a screwdriver to tighten the 2 large locking nuts fitted to the modesty Finished front edge Step 13 Prepare the top Screw 6 metal dowels into the top Finished front edge...
- Page 11 Assembly Instructions Step 14 Prepare the upright Note: The colour of the upright may differ from the main unit colour or Note: Due to the manufacturing may be plain chipboard. process, the 2 holes for the large locking nuts can be on either surface of the upright.
- Page 12 Assembly Instructions Step 15 Remember: The 2 holes for the large locking nuts can be on Fit the upright to the either surface of the upright. Push the upright down onto the top Use a screwdriver to tighten the 2 large locking nuts fitted to Finished...
- Page 13 Assembly Instructions Step 17 Remember: The right drawer front has a shallow identification mark Fit the drawers (refer back to Step1). Slide both the runners forward and locate the drawer sides between them, lining up the holes in the drawer wrap with the 2nd 'threaded' holes in the runners...
- Page 14 Assembly Instructions Step 19 Fit the supports to the mirror back Warning: Place the left support Glass! Handle and right support with care onto the mirror back Tighten up the screws in the mini blocks into the holes in the mirror back Step 20 Position the mirror on...
- Page 15 Assembly Instructions Step 21 Prepare the 2 stool sides Screw 6 metal dowels into each of the 2 stool sides , as shown. Step 22 Prepare the stool base Insert 4 large locking nuts into the holes in the stool base Tap 2 wooden dowels into the ends of the stool base...
- Page 16 Assembly Instructions Step 25 Fit the 2 stool rails Push the 2 stool rails down onto the stool side , as shown. Use a screwdriver to tighten the 2 large locking nuts fitted to each stool rail Step 26 Fit the other stool side Push the other stool side...
- Page 17 Assembly Instructions Step 27 Fit the seat pad Position the seat pad onto the assembly and make sure that its 4 edges line up with the stool base Soft surface Hold the seat pad position and screw up Hard through the 4 holes in surface the stool base using...
- Page 18 KEEP THESE INSTRUCTIONS FOR FUTURE USE If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
- Page 20 ALR2970...
