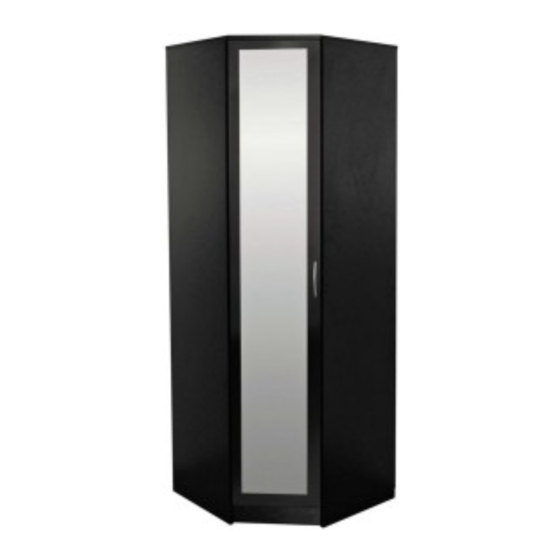

Cheval - Corner Mirror Robe
Assembly Instructions -
Dimensions
Width - 65cm
Depth - 65cm
Height - 200cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
151/5556
151/2999
147/3533
152/6882
MADE IN
BRITAIN
Issue 2 - 25/07/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Cheval 152/6882
Summary of Contents for Argos Cheval 152/6882
- Page 1 Cheval - Corner Mirror Robe Assembly Instructions - 151/5556 Please keep for future reference 151/2999 147/3533 152/6882 Dimensions Width - 65cm Depth - 65cm MADE IN Height - 200cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 25/07/14...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 51kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below The 2 triangular pieces are not used. They are for packing purposes only. (D2745A) (650 x 650mm) Base...
-
Page 4: Tools Required
If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. - Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the base Tap 4 wooden dowels 10mm into the base Note: Wooden dowels Note: The base can have must not stick out from a plain chipboard surface.
- Page 6 Assembly Instructions Step 3 Fit the plinth to the base Push the plinth onto the base and fit it using 2 screws Important: The plain chipboard surface must be at the back. Step 4 Fit the support to the base Push the support onto the base and fit...
- Page 7 Assembly Instructions Step 6 Fit the right back Push the right back onto the 2 metal dowels fitted to the base Use a screwdriver to tighten the 2 large locking nuts fitted to the right back Finished Note: Turn the large front edge locking nuts as far as...
- Page 8 Assembly Instructions Step 8 Finished Fit the left back front edge Push the left back onto the 2 metal dowels fitted to the base Use a screwdriver to tighten the 2 large locking nuts fitted to the left back Tighten up the screws in the 3 mini blocks into the holes in the right...
- Page 9 Assembly Instructions Step 10 Fit the right side Finished front edge Push the right side onto the base Use a screwdriver to tighten the 2 large locking nuts fitted to the bottom of the base Step 11 Fit the top Attach the top to the right side left back...
- Page 10 Assembly Instructions Step 12 Only fit the rail holder to the left Prepare the left side side if you have fitted a rail holder If required, fit 3 hinge to the right back plates onto the left side making sure that the longer part is facing Only fit the hinges towards the finished...
- Page 11 Assembly Instructions Warning: The Step 14 Roll the unit over unit is heavy. Lift with care. Fit a back Carefully roll the unit over, as shown. Place a back onto the unit so it is flush with the back edges of the , base and left side...
- Page 12 Assembly Instructions Step 16 Fit the plastic nails Tap 2 plastic nails into the bottom edge of each of the sides , 2 into the plinth and 1 at the back of the support , as shown. Stand the unit up for the next step.
- Page 13 Assembly Instructions Step 18 Shelf on the left Shelf on the right Fit the shelf You can fit the shelf on the left or the right of the unit. If you have chosen the left, insert 2 shelf studs into the left side 2 into the right back at the required height.
- Page 14 Assembly Instructions Step 20 Fit the door and handle Note: The easiest way to attach the door is to fit the top hinge first, then align and fit the other hinges. Warning: Push the slotted part Glass! Handle of the hinge over the with care centre screw on the...
- Page 15 Assembly Instructions Step 21 Adjust the door if needed Before adjusting the door, use a spirit level to check the top (or base) of the unit is level, front- to-back and side-to-side in the 2 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any...
- Page 16 Lift with care. Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2967...
