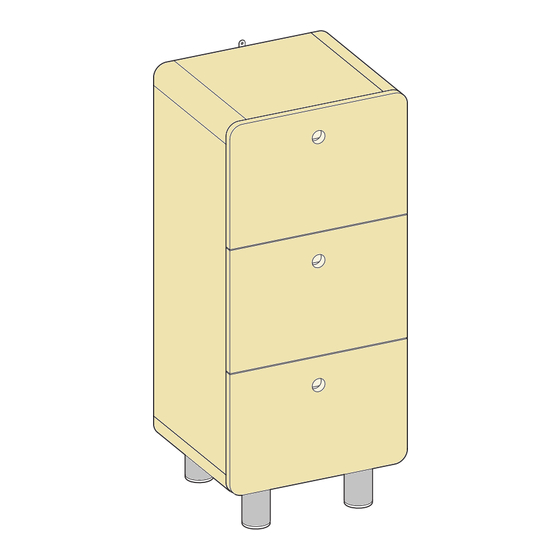

- Page 1 OI WOW Eclipse 3 Drawer Cabinet 147/9726 35cm 30cm 80cm Issue 1 - 10/10/13...
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline:08456 400800 Please check you have all the panels listed below Top panel Bottom panel Back panel Side panel x 2 Upper drawer front Middle drawer front Under drawer front Right drawer side x 3 Left drawer side x 3...
- Page 4 Components - Fittings Please check you have all the fittings listed below Note:The quantities below are the correct amount to complete the assembly .In some cases more fittings may be supplied than are required. Φ4 x 12mm Screw x 35 Locking Pin x 28 Locking Nut x 28 30mm Screw x 13...
- Page 5 Assembly Instructions Step 1 Assembling side panel NOTE:It would be useful to ask someone to help you at this stage. Screw locking pins into corner pieces as shown. Slide part Screw Front Fix part Front Attach corner pieces to side panel and insert locking nuts Fix part...
- Page 6 Assembly Instructions Step 2 Assembling legs NOTE:It would be useful to ask someone to help you at this stage. Unlock metal leg by using screw driver as shown. Use Φ4 x 12mm screw to fix leg by hand plate on bottom panel Screw bolt on the leg plate by hand.
- Page 7 Assembly Instructions Step 4 Assembling back panel NOTE:It would be useful to ask someone to help you at this stage. Use Φ3 x 12mm screw to fix back panel to the unit,please make sure the bracket hole on back panel match top panel as shown.
- Page 8 After above assembly, please double check and make sure all screws are tightened before us. NOTE:If you have damaged or missing components, call the Customer Helpline:08456 400800 Argos LTD,489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
-
Page 9: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
