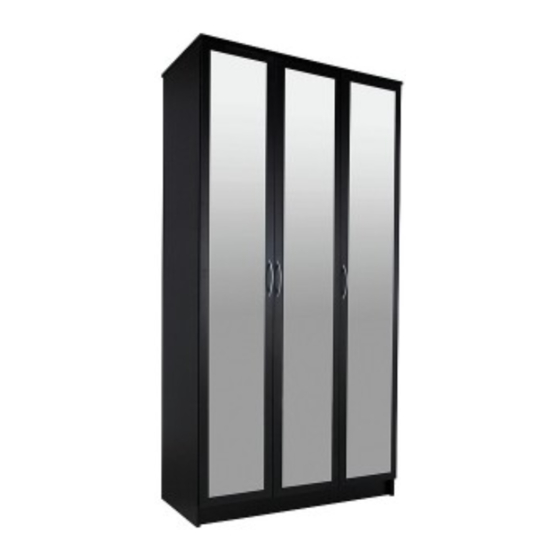

Cheval - 3 Door Mirror Robe
Assembly Instructions -
Dimensions
Width - 103cm
Depth - 49.5cm
Height - 200cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
147/2204
147/0361
143/9388
146/7680
MADE IN
BRITAIN
Issue 2 - 08/09/14
Advertisement
Related Manuals for Argos Cheval 147/2204
Summary of Contents for Argos Cheval 147/2204
- Page 1 Cheval - 3 Door Mirror Robe Assembly Instructions - 147/2204 Please keep for future reference 147/0361 143/9388 146/7680 Dimensions Width - 103cm Depth - 49.5cm MADE IN Height - 200cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 08/09/14...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 77kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (D2727A) (1030 x 494mm) Base (D2733A) (995 x 456mm) Left Side Right Side Upright Plinth...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 To fit the rail holder, screw through its top hole and into the shallow mark hole drilled in the Prepare the upright panel.
- Page 6 Assembly Instructions Step 2 Prepare the large horizontal Tap 4 wooden dowels into the large horizontal Finished Insert 4 large locking front edge nuts into the large horizontal Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
- Page 7 Assembly Instructions Step 5 Fit the small horizontal to the upright Push the small horizontal onto the upright Use a screwdriver to tighten the 2 large Finished locking nuts fitted to front edge the small horizontal Note: The base Step 6 can have a plain chipboard surface.
- Page 8 Assembly Instructions Step 8 Prepare the right side Tap 2 wooden dowels into the right side Screw 5 metal dowels into the right side Fit 3 hinge plates onto the right side , making sure that the slot is facing towards the Finished finished front edge.
- Page 9 Assembly Instructions Step 10 Prepare the left side Tap 2 wooden dowels into the left side Screw 7 metal dowels into the left side Fit 3 hinge plates onto the left side , making Finished sure that the slot is front edge facing towards the finished front edge.
- Page 10 Assembly Instructions Step 13 Fit the plinth and rails Push the plinth onto the right side Use a screwdriver to Finished tighten the large locking top edge fitted to the plinth Finished top edge Push the rails onto the upright Note: Support the Use a screwdriver to plinth and rails until...
- Page 11 Assembly Instructions Step 15 Fit the top Push the top onto the assembly and secure it to the left side , right side and upright and using 6 screws Polystyrene block Note: To make it easier to fit the top panel, place polystyrene blocks from the packaging underneath the side and upright Polystyrene...
- Page 12 Assembly Instructions Step 17 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the 2 backs Square up the unit by making sure that the measurement x:x equals y:y.
- Page 13 Assembly Instructions Step 18 Fit the hanging rail Push the 2 small hanging rails and the large hanging rail into the rail holders fitted to the panels. Step 19 Warning: Glass! Handle Prepare the 3 doors with care Push fit 3 hinges into each of the doors Secure each hinge with...
- Page 14 Assembly Instructions Step 20 Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 15 Assembly Instructions Step 21 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 16 Assembly Instructions Step 22 IMPORTANT Fit the bracket If you have purchased the Cheval Overbed Cupboards, you will need to fix them to the To prevent possible overbalancing, we wall BEFORE you fix the Robe to the wall. recommend that this unit is secured to a suitable wall by use of the bracket...
- Page 17 KEEP THESE INSTRUCTIONS FOR FUTURE USE If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
