4. Handling Precautions

Warning
(1)Perform testing before the actual operation.
Verify with the actual equipment used with this product. Even if the test over a short period shows
no problem, it may cause a malfunction depending on the components of the fluid.
(2)Storage
When the product is stored for a long period of time after usage, remove the fluid completely from
the pump before storage to prevent sticking and deterioration of the pump material.
(3)When not used for extended periods of time, perform trial run before use.
(4)Operating environment
When dangerous fluid is used, take measures to isolate humans from the pump. External leakage
of pumping fluid could cause serious injury.
(5)Countermeasures against liquid leakage
There are some cases where the operating fluid will leak outside the pump, for example when the
diaphragm reaches the end of the life. Measures should be taken to avoid leakage, such as
installing a drain pan, so that people and equipment will not be adversary affected.
Caution
(1)Operating temperature
The pump can be used within the range from 0 to 50

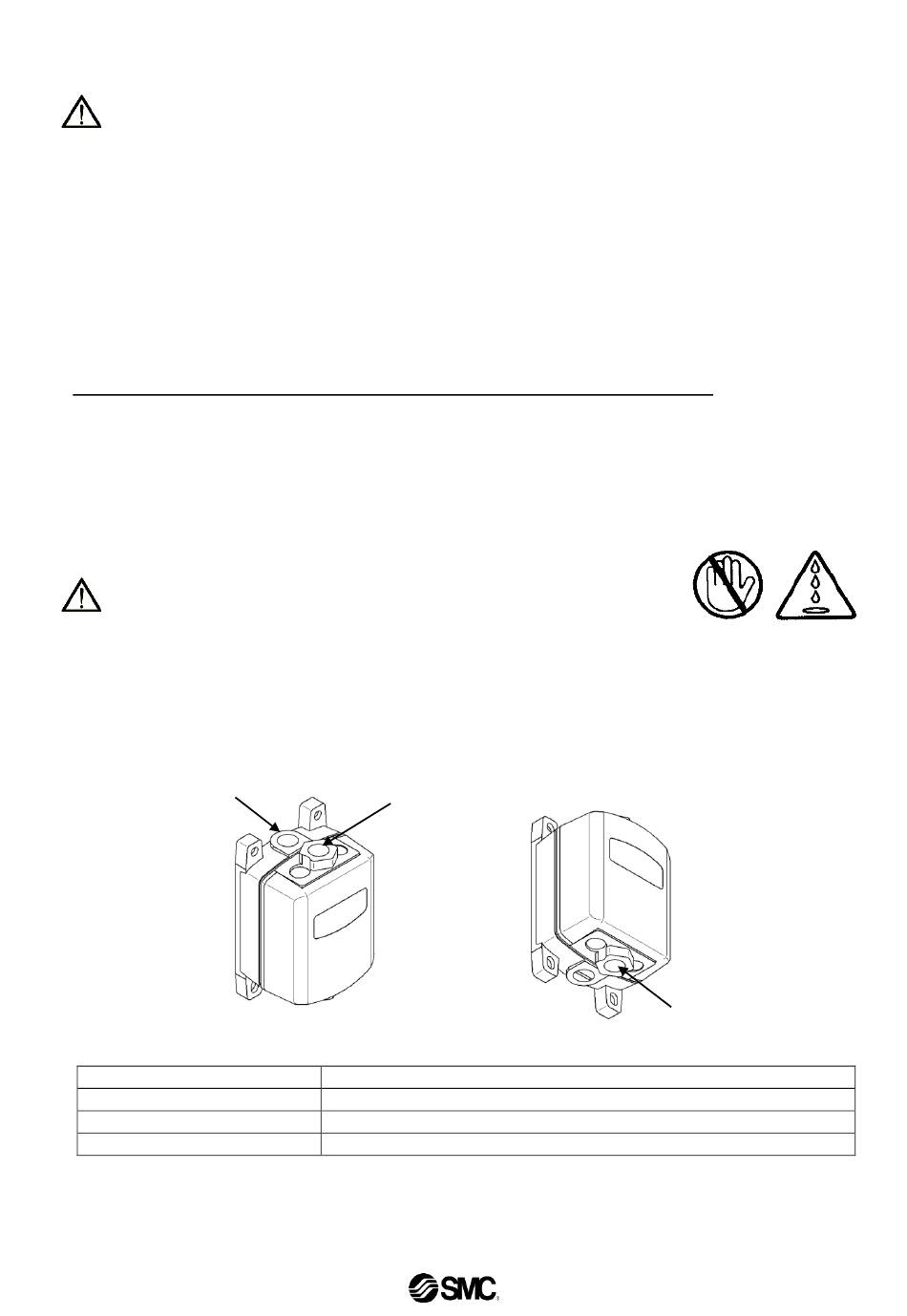

5. Names and functions of parts

Air supply port
Description
Suction port (FLUID IN)
Discharge port (FLUID OUT)
Air supply port (AIR SUP)
o
Discharge port
Sucks the fluid to be transferred. Connect suction piping.
Discharges the fluid taken in the pump. Connect discharge piping.
Supplies air of set pressure. Connect the air piping.
－10－
C. Do not let it freeze.
Functions
Suction port
