CrossoverZ Zero Turn
6-in-parallel
Model No.CRZ426 CRZ428
Parts Manual with torque value
TOLL-FREE HELPLINE: 1-855-345-3934
www.greenworksools.com
Read all safety rules and instructions carefully before operating this tool.
P0804055-00, Rev 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CrossoverZ Zero Turn and is the answer not in the manual?

Questions and answers

Carl Robert Wegner
April 27, 2025

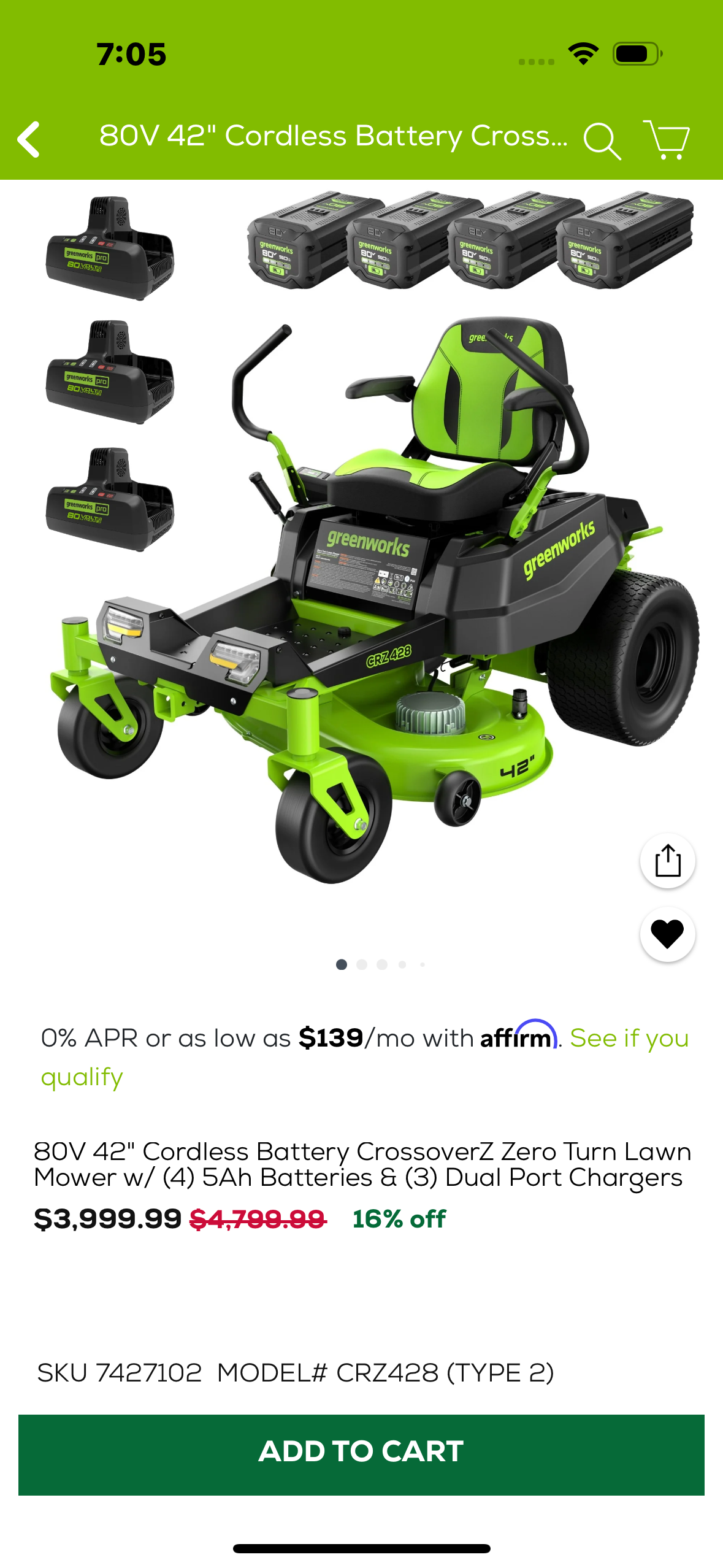

are replacement parts available for the CRZ 426, 60 volt , zero turn, 42" mower deck . need the speed selection switch

0

Related Manuals for GreenWorks Pro CrossoverZ Zero Turn

Summary of Contents for GreenWorks Pro CrossoverZ Zero Turn

  • Page 1 CrossoverZ Zero Turn 6-in-parallel Model No.CRZ426 CRZ428 Parts Manual with torque value TOLL-FREE HELPLINE: 1-855-345-3934 www.greenworksools.com Read all safety rules and instructions carefully before operating this tool. P0804055-00, Rev 1.0...

  • Page 2: Table Of Contents

    CONTENTS Labels LABELS-WARNING/SAFETY......................15 LABELS-BRAND/MODEL........................16 LABELS-FUNCTION...........................17 Body and structures FR AME........................21 BATTERY COVER........................22 Electrical System BATTERY AND CHARGER......................31 CONTROLLER MOUNT........................32 WIRE HARNESS........................33 SWITCHES&GAUG ES....................35 G PS.........................3 6 LIGHTS.........................39 Deck System DECK, MOTORS, BLADES......................41 DECK COMPONENTS........................42 DECKLIFT..........................45 DISCHARGE CHUTE....................46 Drive System WHEELS.............................51 FRONT CASTER PARTS........................52 DRIVE MOTOR AND TRANSMISSION....................55 Operator System...

  • Page 3: Labels-Warning/Safety

    LABELS-WARNING/SAFETY CrossoverZ Zero Turn CRZ 426 TO REDUCE THE RISK CAUTION: OF INJURY OR ELEC- TRIC SHOCK DO NOT REMOVE COVER. ONLY WITH 60BA08 NO USER SERVICEABLE PARTS INSIDE. BATTERY. SEE INSTRUCTION MANUAL REFER SERVICING QUALIFIED FOR ADDITIONAL BATTERY PACKS.
  • Page 4 ITEM NO. PART NO. DESCRIPTION R0203310-00 CrossoverZ Zero Turn 6-in-parallel 60V safety label 15-1 R0203311-00 CrossoverZ Zero Turn 6-in-parallel 80V safety label R0203422-00 CrossoverZ Zero Turn 6-in-parallel 82V safety label 15-2 R0201623-00 Warning label 15-3 R0202922-00 No standing label 15-4...

  • Page 5: Labels-Brand/Model

    LABELS-BRAND/MODEL 16-1 16-2 16-3 16-4 16-5 16-4 16-1 P0804055-00, Rev 1.0...
  • Page 6 ITEM NO. PART NO. DESCRIPTION 16-1 R0202933-00 GW 60V LOGO 16-2 R0203297-00 CRT42 60V battery pack compartment clamshell label 16-3 R0203299-00 CRT42 80V/82V battery pack compartment clamshell label R0203308-00 CRZ426 model label (for 7409302) 16-4 R0203309-00 CRZ428 model label (for 7409402 / 7409502) 16-5 R0203185-00 Zero-turn mower 42-inch cutting label...

  • Page 7: Labels-Function

    LABELS-FUNCTION 17-1 (A) 17-1 (B) 17-1(C) Made in China This device contains: FCC ID: XMR201808EC25AF IC: 10224A-201808EC25AF This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. 17-2 17-3 17-4...
  • Page 8 ITEM NO. PART NO. DESCRIPTION R0203300-00 Compartment label A 17-1 R0203302-00 Compartment label B R0203303-00 Compartment label C 17-2 R0203305-00 GPS Label R0203314-00 Left anti-cursor label 17-3 R0203315-00 Right anti-cursor label 17-4 R0203186-00 Height adjust label 17-1 17-3 17-4 17-2 17-2 P0804055-00, Rev 1.0...

  • Page 9: Ame

    FRAME 21-1 P0804055-00, Rev 1.0...
  • Page 10 ITEM NO. PART NO. DESCRIPTION 21-1 R0200534-00 Bolt M8×20 21-2 R0202222-00 Dust cap 21-3 R0200684-00 Grease zerk fitting 21-4 R0202221-00 Frame welding 21-5 R0200549-00 Nut M8 21-6 R0200377-00 Foot pad 21-7 R0202220-00 Mounting plate 21-8 R0201314-00 Nut plate M6 21-9 R0202219-00 Body rear 21-10...

  • Page 11: Battery Cover

    BATTERY COVER 22-1 P0804055-00, Rev 1.0...
  • Page 12 ITEM NO. PART NO. DESCRIPTION 22-1 R0201314-00 Nut plate M6 22-2 R0203393-00 Mounting plate 22-3 R0202009-00 Bucket 22-4 R0201376-00 Hexagon pan head screw 22-2 P0804055-00, Rev 1.0...

  • Page 13: Battery And Charger

    BATTERY AND CHARGER 31-1 P0804055-00, Rev 1.0...
  • Page 14 ITEM NO. PART NO. DESCRIPTION 31-1 R0202636-00 Fixed bracket Prevailing torque type hexagon nuts (with non-metallic 31-2 R0200520-00 insert), style 2 31-3 R0202637-00 Hexalobular socket pan head tapping screws 31-4 R0202638-00 Base 31-5 R0203228-00 Battery compartment power cord 31-6 R0203405-00 Battery compartment power cord 31-7 R0203229-00...
  • Page 15 ITEM NO. PART NO. DESCRIPTION 2957102 GW 60V 2P 21700 Battery 31-27 2981102 GW 80V 2P 21700 Battery 2935802 GW 82V 2P 21700 Battery 31-28 R0202660-00 Release button shaft retaining plate 31-29 R0202672-00 Torsion spring 31-30 R0202657-00 Battery pack release button shaft 31-31 R0203174-00 Battery pack release button...

  • Page 16: Controller Mount

    CONTROLER MOUNT 32-1 P0804055-00, Rev 1.0...
  • Page 17 ITEM NO. PART NO. DESCRIPTION 32-1 R0201522-00 Hexagon socket head cap screw R0203231-00 Drive controller 32-2 R0203243-00 Drive controller 32-3 R0202211-00 Mounting plate 32-4 R0200549-00 Nut M8 32-5 R0201314-00 Nut plate M6 32-6 R0202524-00 Right reset bracket welding 32-7 R0202024-00 Insulating base 32-8 R0201409-00...

  • Page 18: Wire Harness

    WIRE HARNESS P0804055-00, Rev 1.0...
  • Page 19 ITEM NO. PART NO. DESCRIPTION R0203235-00 Hexagon flange bolts - Heavy series - Product grade B 33-1 R0203246-00 Control harness assembly of whole machine 33-2 R0203236-00 Power wiring harness for whole machine 33-3 R0200390-00 Ribbon 33-4 R0202543-00 Ribbon 33-5 R0203240-00 Motor wiring harness 33-1 P0804055-00, Rev 1.0...

  • Page 20: Switches&Gauges

    SWITCHES&GAUGES 35-1 P0804055-00, Rev 1.0...
  • Page 21 ITEM NO. PART NO. DESCRIPTION 35-1 R0201611-00 Lock switch and key 35-2 R0201217-00 Display screen 35-3 R0202032-00 Hexalobular socket pan head screw 35-4 R0202205-00 Switch panel 35-5 R0201612-00 35-6 R0202204-00 Left cover piece 35-7 R0200534-00 Bolt M8 ×20 35-8 R0202203-00 Right cover piece 35-9 R0201314-00...
  • Page 22 36-1 P0804055-00, Rev 1.0...
  • Page 23 ITEM NO. PART NO. DESCRIPTION 36-1 R0200546-00 Hexalobular socket pan head screw 36-2 R0202868-00 36-3 R0201314-00 Nut plate M6 36-2 P0804055-00, Rev 1.0...

  • Page 24: Lights

    LIGHTS 39-1 P0804055-00, Rev 1.0...
  • Page 25 ITEM NO. PART NO. DESCRIPTION 39-1 R0201279-00 Hexagon lobular socket raised head screw with collar 39-2 R0202201-00 Right front lamp 39-3 R0201314-00 Nut plate M6 39-4 R0202200-00 Adapting plate 39-5 R0202199-00 Left front lamp 39-6 R0201376-00 Hexagon Pan Head screw 39-2 P0804055-00, Rev 1.0...

  • Page 26: Deck, Motors, Blades

    DECK, MOTORS AND BLADES 41-1 P0804055-00, Rev 1.0...
  • Page 27 ITEM NO. PART NO. DESCRIPTION 41-1 R0202285-00 Hexagon head bolts 41-2 R0202284-00 Washer 41-3 R0203256-00 Blade 41-4 R0202282-00 Blade holder 41-5 R0202281-00 Hexagon head bolts 5/16-18UNC 41-6 R0202280-00 Single coil spring lock washers 41-7 R0200548-00 Plain washer - Product grade A R0202292-00 Motor (60V) 41-8...

  • Page 28: Deck Components

    DECK COMPONENTS 42-1 P0804055-00, Rev 1.0...
  • Page 29 ITEM NO. PART NO. DESCRIPTION 42-1 R0200401-00 Hexagon head bolts M12X80 42-2 R0200543-00 Plain washers - Product grade A, φ12 42-3 R0202286-00 Cutting deck wheel sleeve pipe 42-4 R0202287-00 Cutting deck wheel 42-5 R0200523-00 Lock Nut M12 42-6 R0202288-00 Cutting deck welding Cup head square neck bolts with small head and short 42-7 R0200526-00...

  • Page 30: Decklift

    DECKLIFT 45-1 P0804055-00, Rev 1.0...
  • Page 31 ITEM NO. PART NO. DESCRIPTION 45-1 R0200515-00 Lock nut M12 45-2 R0202233-00 Trunnion 45-3 R0200521-00 Lock nut M10 45-4 R0202232-00 Side pull plate 45-5 R0201469-00 Bushing Cup head square neck bolts with small head and short 45-6 R0202231-00 neck - Product grade B 45-7 R0202230-00 Height adjustment rod...

  • Page 32: Discharge Chute

    DISCHARGE CHUTE 46-1 P0804055-00, Rev 1.0...
  • Page 33 ITEM NO. PART NO. DESCRIPTION Cup head square neck bolts with small head and 46-1 R0200526-00 short neck - Product grade B 46-2 R0202296-00 Fixed seat 46-3 R0201314-00 Nut plate M6 46-4 R0202297-00 Starlock washer 46-5 R0202298-00 Mulch cover 46-6 R0202299-00 Customized bolt Cup head square neck bolts with small head and...

  • Page 34: Wheels

    WHEELS 52-1 P0804055-00, Rev 1.0...
  • Page 35 ITEM NO. PART NO. DESCRIPTION 52-1 R0201518-00 Rear wheel 52-2 R0200368-00 Wheel fastening nut 1/2-20UNF 52-2 P0804055-00, Rev 1.0...

  • Page 36: Front Caster Parts

    FRONT CASTER PARTS 52-1 P0804055-00, Rev 1.0...
  • Page 37 ITEM NO. PART NO. DESCRIPTION 52-1 R0200372-00 Nut M20 52-2 R0200373-00 Disc spring A40-2 52-3 R0201463-00 Tapered roller bearings 52-4 R0201464-00 Oil sealing 52-5 R0202198-00 Front fork welding 52-6 R0200369-00 Lock nut M12 52-7 R0201468-00 Front shaft sleeve 52-8 R0201467-00 Front wheel general assembly 52-9 R0201465-00...

  • Page 38: Drive Motor Andtransmission

    DRIVE MOTOR ANDTRANSMISSION 55-1 P0804055-00, Rev 1.0...
  • Page 39 ITEM NO. PART NO. DESCRIPTION 55-1 R0200765-00 Hexagon flange bolts - Product grade B 55-2 R0200499-00 Single coil spring lock washer, normal type, φ10 55-3 R0200502-00 Plain washers - Product grade A, φ10 R0203233-00 Gear Box/ Motor Assembly (60V) 55-4 R0203245-00 Gear Box/ Motor Assembly (80V/82V) 55-5...

  • Page 40: Seat And Mount

    SEAT AND MOUNT 61-1 P0804055-00, Rev 1.0...
  • Page 41 ITEM NO. PART NO. DESCRIPTION 61-1 R0203253-00 Seat 61-2 R0200521-00 Lock nut M10 61-3 R0200534-00 Bolt M8 ×20 61-4 R0203275-00 Spring 61-5 R0202039-00 Limiting displacement bar 61-6 R0202197-00 Fixed plate assembly 61-7 R0200548-00 Plain washer - Product grade A, φ8 61-8 R0200571-00 Nylon locking nut 5/16-18...

  • Page 42: Control Arms

    CONTROL ARMS 63-1 P0804055-00, Rev 1.0...
  • Page 43 ITEM NO. PART NO. DESCRIPTION 63-1 R0200509-00 Hexagon head bolts (Full thread) M10X25 63-2 R0200378-00 Disc spring A22_5-2 63-3 R0203267-00 Left control handle welding 63-4 R0203268-00 Right control handle welding 63-5 R0201530-00 Pipe plug 63-6 R0201532-00 Control rod sleeve 63-2 P0804055-00, Rev 1.0...

  • Page 44: Control Box Rh

    CONTROL BOX RH 64-1 P0804055-00, Rev 1.0...
  • Page 45 ITEM NO. PART NO. DESCRIPTION 64-1 R0200366-00 Brake safety switch 64-2 R0201543-00 Right bracket 64-3 R0200532-00 Bolt assembly M6×16 64-4 R0201534-00 Operating handle 64-5 R0201356-00 Nylon pad 64-6 R0201358-00 Washer 64-7 R0201362-00 Disc spring 64-8 R0201363-00 Customized bolt 64-9 R0200521-00 Lock nut M10 64-10 R0201364-00...

  • Page 46: Control Box Lh

    CONTROL BOX LH 65-1 P0804055-00, Rev 1.0...
  • Page 47 ITEM NO. PART NO. DESCRIPTION 65-1 R0200366-00 Brake safety switch 65-2 R0201533-00 Left bracket 65-3 R0200532-00 Bolt assembly M6×16 65-4 R0201534-00 Operating handle 65-5 R0201356-00 Nylon pad 65-6 R0201358-00 Washer 65-7 R0201362-00 Disc spring 65-8 R0201363-00 Customized bolt 65-9 R0200521-00 Lock nut M10 65-10 R0201364-00...
  • Page 48 Greenworks Tools P.O. Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-855-345-3934 Printed in China on 100% Recycled Paper P0804055-00, Rev 1.0...

This manual is also suitable for:

Crz426Crz428
