FUNKY MONKEY BARS ACCESSORIES BAR Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ACCESSORIES BAR
(add on)
ASSEMBLY INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACCESSORIES BAR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FUNKY MONKEY BARS ACCESSORIES BAR

Summary of Contents for FUNKY MONKEY BARS ACCESSORIES BAR

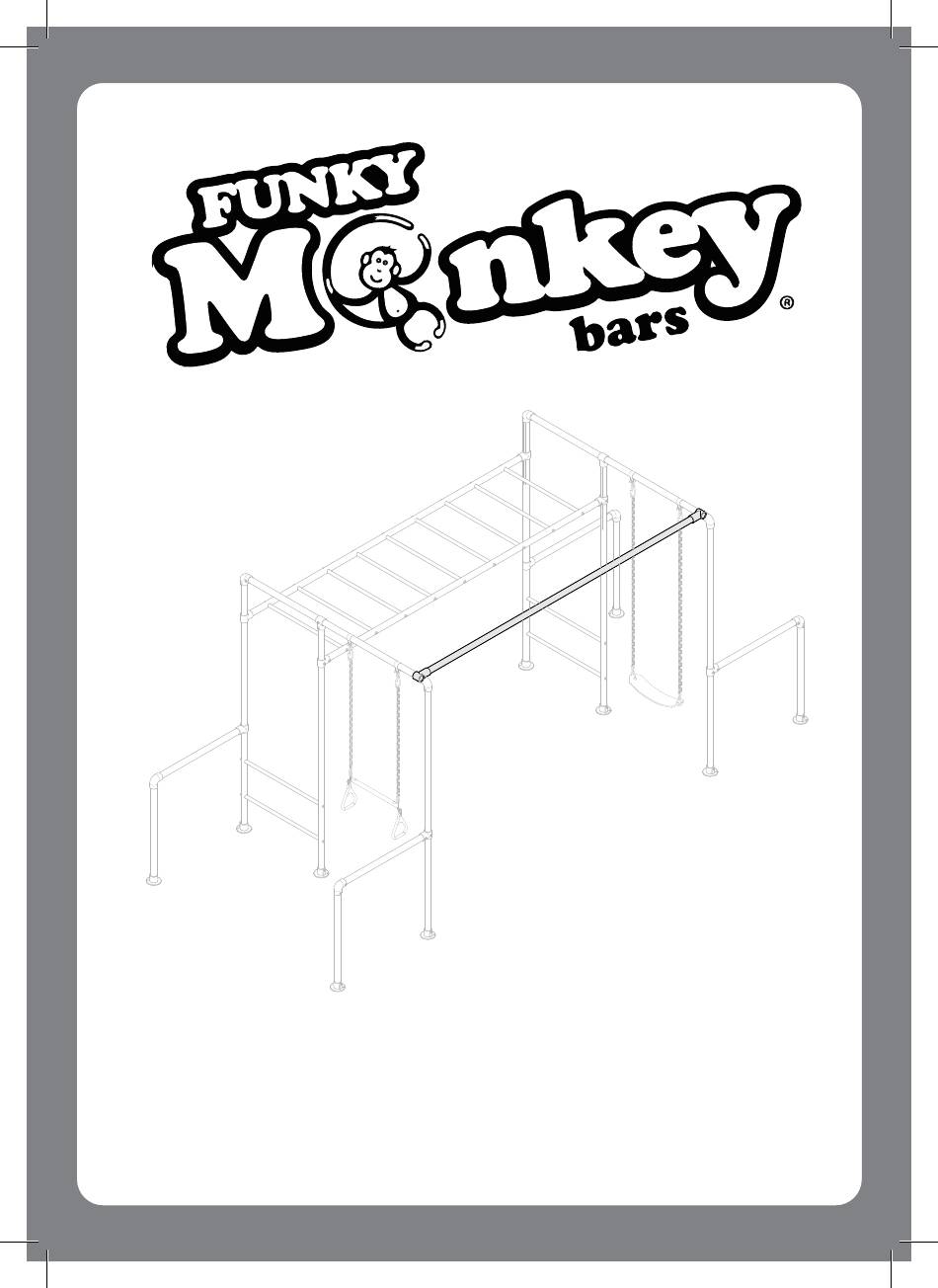

  • Page 1 ACCESSORIES BAR (add on) ASSEMBLY INSTRUCTIONS...

  • Page 2: Table Of Contents

    Bars®, especially lower quality products that have not been approved by Funky Monkey Bars®. 15. Ensure the height of your Funky Monkey Bars® (horizontal ladder) are set at a level that is age appropriate. 16. DO NOT install your Funky Monkey Bars® over or near objects that could interfere with users in an unsafe way.
  • Page 3 Work on flat level surface. LOCATION A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to 6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.

  • Page 4: Assembly Tips

    ASSEMBLY TIPS CORRECT INSERTION INTO FITTINGS - (indicative diagram shown) All tubes must be fully inserted until contact is made with adjoining tube. Gap. No gap. CORRECT TIGHTENING METHOD OF GRUB SCREWS - (indicative diagram shown) + 360 2. Using other end of the allen key do one full 1.

  • Page 5: Load Rating

    I hereby confirm all testing was undertaken in accordance with Physical Testing of Structural Integrity requirements of AS 4685.1: 2014 App C / EN 1176-1:2008° except where noted below; COMMENTS: Maximum users on accessories bar to be 3 users or 180kgs. APPROVED BY: WITNESSED BY: Funky Monkey Bars®...
  • Page 6 ASSEMBLY INSTRUCTIONS - ORIENTATION SELECT DESIRED ORIENTATION OF ACCESSORIES BAR (A or B) (Assembly for orangutan shown in example) Swing bar. Accessories Bar located on top (swing bar). ACCESSORIES BAR POSITION A. Accessories Bar located on side (swing leg). Swing leg.
  • Page 7 ASSEMBLY INSTRUCTIONS - FRAME PREPARATION Swing bar. REMOVE PEGS & LOOSEN ELBOWS Swing leg. Remove pegs from base plates on selected accessories bar side. Loosen elbow grub screws connecting swing legs to swing bar. Remove pegs. Loosen elbow grub screws.
  • Page 8 Fully tighten all grub screws and swing hook bolts. + 360 ATTACH LOAD RATING STICKER TO ASSEMBLED ACCESSORIES BAR Flip assembled flying fox over 180º so that long short tee grub screws are facing downwards. Attach the load rating sticker to the side of the accessories bar.
  • Page 9 Assembled accessories bar from step 5. NOTE: For position B (step 1) slide the accessories bar onto the leg ends and replace the elbows at the top. Fully tighten all grub screws RE-ATTACH SWING BAR LEGS Lift legs and twirly whirly bars back into position.
  • Page 10 SECURE TO GROUND Hammer in pegs. ATTACH ACCESSORIES (if applicable) Attach new accessories in desired position (if applicable)and tighten swing hook bolts with rachet. Refer to individual accessory assembly instructions for details. CHECK ALL FITTING GRUB SCREWS & RUNG BOLTS ARE FULLY TIGHTENED + 360 1.

  • Page 11: Maintenance

    MAINTENANCE. At the beginning of each heavy play session (especially a party) and twice a month during play season ensure; 1. Tighten all hardware - grub screws, nuts and bolts. 2. Pegs are in place and fully secure. 3. Lubricate all metallic moving parts with WD40 or Vasaline - (trolley and swing hooks.) 4.
  • Page 12 72 164 496 520 1300 912 198 info@funkymonkeybars.com www.funkymonkeybars.com ® AUSTRALIAN MADE 9 Cutting Way, we are social monkeys AND OWNED Yangebup WA 6164 All Funky Monkey Bars® designs are registered and protected under IP Australian certification. IP Australia...
