VBOX Micro

Using USB

The first time you use the USB connectivity of the VBOX Micro to configure the unit or transfer
files to or from its CF card, you will need to follow the instructions below. You will also need to
repeat this procedure the first time you upgrade the VBOX Micro's firmware.
•
Connect the USB cable between the VBOX Micro and the computer.
•
The computer should now recognise the presence of a new device; after a short period of

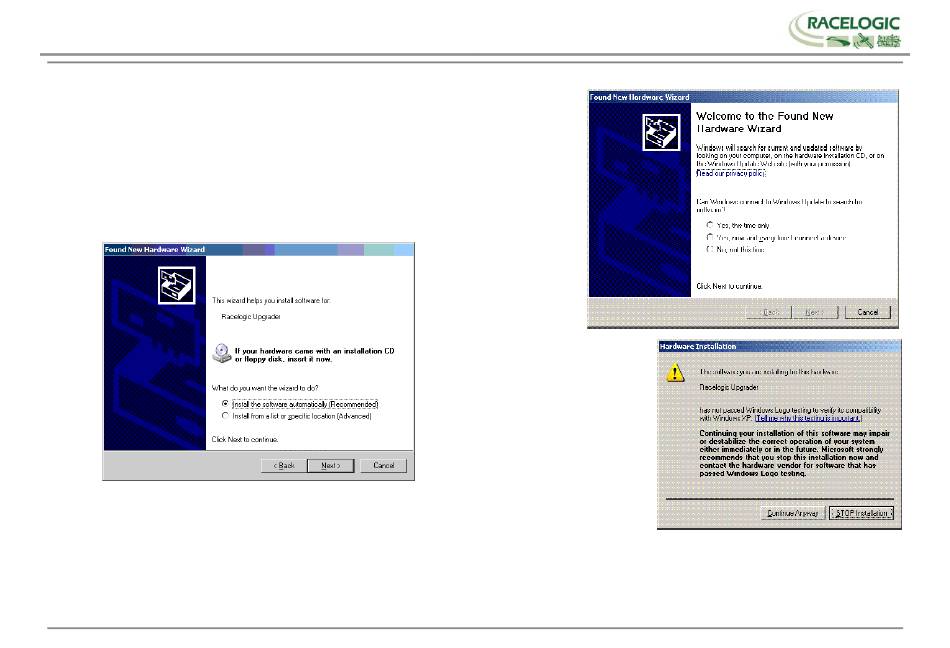

time a 'Found New Hardware Wizard' window will appear (see image below).
•
Click the option 'No, not this time' and click 'Next' (see image right and above).
•
A new window will appear at this window click 'Next' (see image right and below).
•
A new 'Hardware Installation' window will appear. Click the button labelled 'Continue Anyway'.
•
At the last window click 'Finish' to complete the installation.
•
After a short period of time a window will ask you if you wish to reboot your computer; click 'No'.
Now disconnect then reconnect the VBOX Micro from its power supply. Your computer should now recognise the unit. When you run the VBOX Micro Setup
software it will recognise the USB connections.
Please note that, due to the nature of USB communications, the above procedure may occasionally fail at various stages. Should this happen, please repeat
the procedure three or four times, if necessary, prior to requesting technical support.
Page 21 of 29
