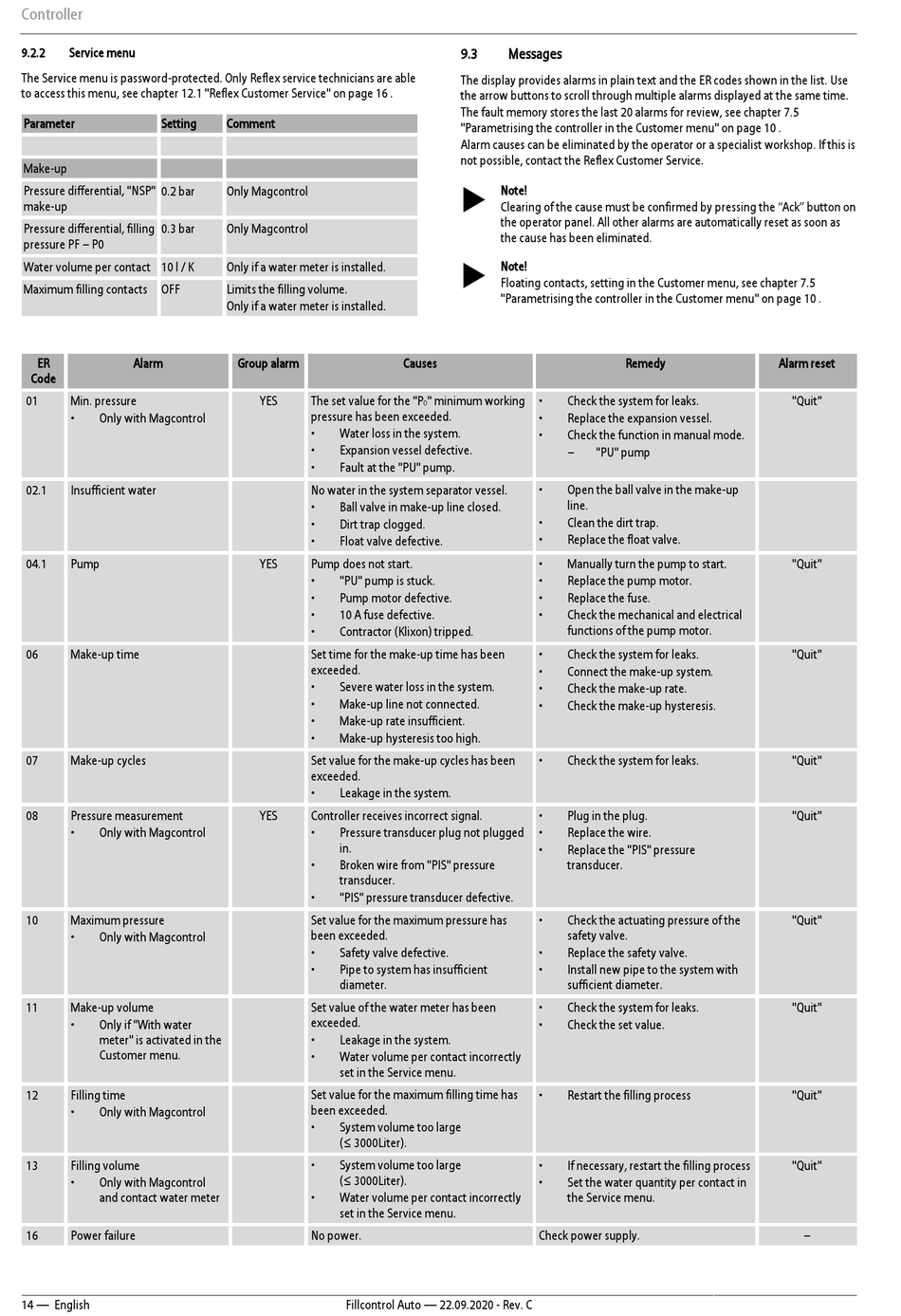

Service menu

The Service menu is password-protected. Only Reflex service technicians are able
to access this menu, see chapter 12.1 "Reflex Customer Service" on page 16 .
Parameter Setting
Make-up
Pressure differential, "NSP"
0.2 bar
make-up
Pressure differential, filling 0.3 bar
pressure PF – P0
Water volume per contact 10 l / K
Maximum filling contacts OFF
ER
Alarm
Code
01 Min. pressure
• Only with Magcontrol
02.1 Insufficient water
04.1 Pump
06 Make-up time
07 Make-up cycles
08 Pressure measurement
• Only with Magcontrol
10 Maximum pressure
• Only with Magcontrol
11 Make-up volume
• Only if "With water
meter" is activated in the
Customer menu.
12 Filling time
• Only with Magcontrol
13 Filling volume
• Only with Magcontrol
and contact water meter
16 Power failure
14 — English
Comment
Only Magcontrol
Only Magcontrol
Only if a water meter is installed.
Limits the filling volume.
Only if a water meter is installed.
Group alarm
The set value for the "P
YES
pressure has been exceeded.
• Water loss in the system.
• Expansion vessel defective.
• Fault at the "PU" pump.
No water in the system separator vessel.
• Ball valve in make-up line closed.
• Dirt trap clogged.
• Float valve defective.
YES Pump does not start.
• "PU" pump is stuck.
• Pump motor defective.
• 10 A fuse defective.
• Contractor (Klixon) tripped.
Set time for the make-up time has been
exceeded.
• Severe water loss in the system.
• Make-up line not connected.
• Make-up rate insufficient.
• Make-up hysteresis too high.
Set value for the make-up cycles has been
exceeded.
• Leakage in the system.
YES Controller receives incorrect signal.
• Pressure transducer plug not plugged
in.
• Broken wire from "PIS" pressure
transducer.
• "PIS" pressure transducer defective.
Set value for the maximum pressure has
been exceeded.
• Safety valve defective.
• Pipe to system has insufficient
diameter.
Set value of the water meter has been
exceeded.
• Leakage in the system.
• Water volume per contact incorrectly
set in the Service menu.
Set value for the maximum filling time has
been exceeded.
• System volume too large
(≤ 3000Liter).
• System volume too large
(≤ 3000Liter).
• Water volume per contact incorrectly
set in the Service menu.
No power.
Fillcontrol Auto — 22.09.2020 - Rev. C
9.3

Messages

The display provides alarms in plain text and the ER codes shown in the list. Use
the arrow buttons to scroll through multiple alarms displayed at the same time.
The fault memory stores the last 20 alarms for review, see chapter 7.5
"Parametrising the controller in the Customer menu" on page 10 .
Alarm causes can be eliminated by the operator or a specialist workshop. If this is
not possible, contact the Reflex Customer Service.
 Note!
Clearing of the cause must be confirmed by pressing the "Ack" button on
the operator panel. All other alarms are automatically reset as soon as
the cause has been eliminated.

Note!
Floating contacts, setting in the Customer menu, see chapter 7.5
"Parametrising the controller in the Customer menu" on page 10 .
Causes
" minimum working
• Check the system for leaks.
0
• Replace the expansion vessel.
• Check the function in manual mode.
–
• Open the ball valve in the make-up
line.
• Clean the dirt trap.
• Replace the float valve.
• Manually turn the pump to start.
• Replace the pump motor.
• Replace the fuse.
• Check the mechanical and electrical
functions of the pump motor.
• Check the system for leaks.
• Connect the make-up system.
• Check the make-up rate.
• Check the make-up hysteresis.
• Check the system for leaks.
• Plug in the plug.
• Replace the wire.
• Replace the "PIS" pressure
transducer.
• Check the actuating pressure of the
safety valve.
• Replace the safety valve.
• Install new pipe to the system with
sufficient diameter.
• Check the system for leaks.
• Check the set value.
• Restart the filling process
• If necessary, restart the filling process
• Set the water quantity per contact in
the Service menu.
Check power supply.
Remedy
"PU" pump
Alarm reset
"Quit"
"Quit"
"Quit"
"Quit"
"Quit"
"Quit"
"Quit"
"Quit"
"Quit"
–
