Commissioning

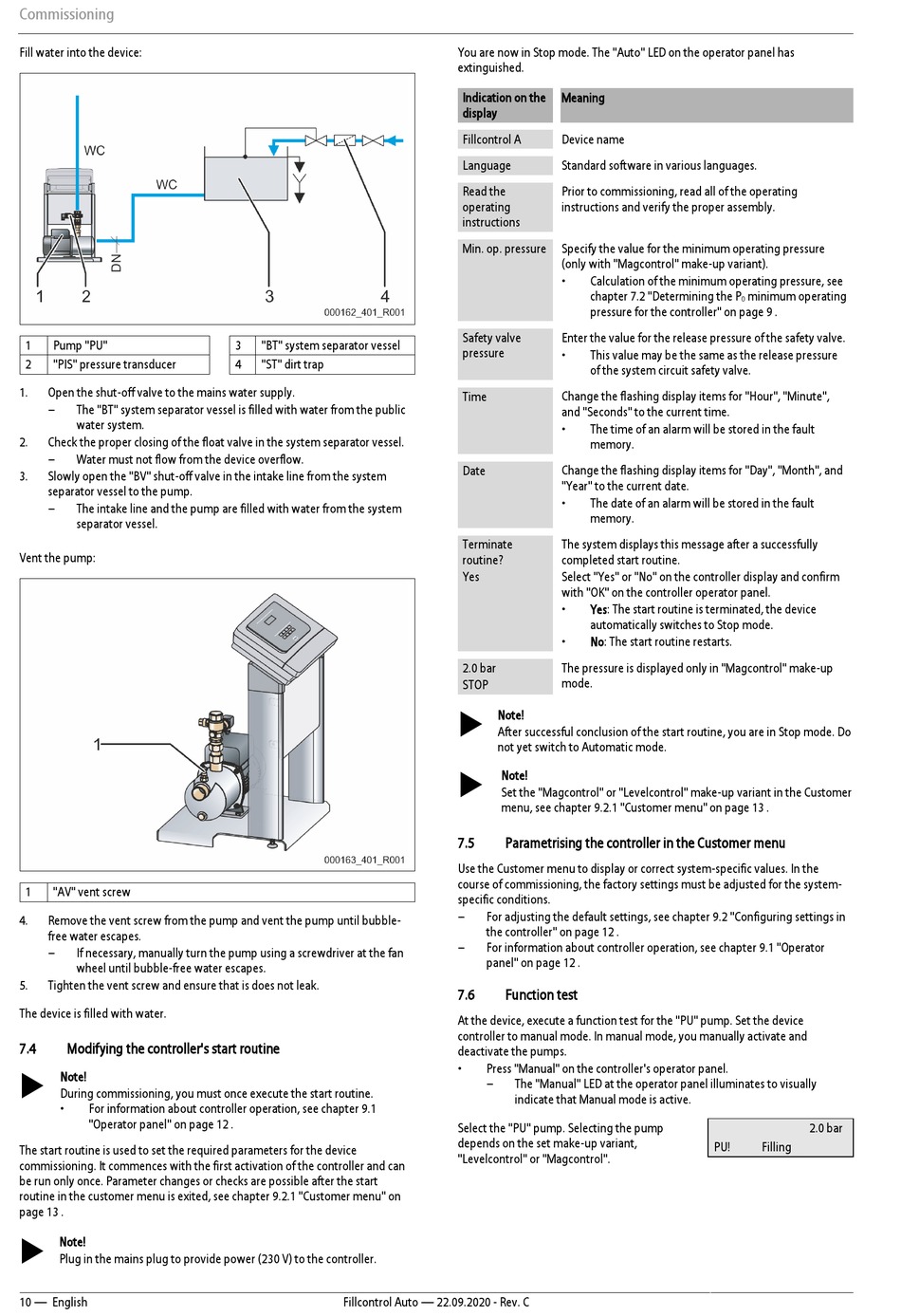

Fill water into the device:
1 Pump "PU"
2 "PIS" pressure transducer
1. Open the shut-off valve to the mains water supply.
– The "BT" system separator vessel is filled with water from the public
water system.
2. Check the proper closing of the float valve in the system separator vessel.
– Water must not flow from the device overflow.
3. Slowly open the "BV" shut-off valve in the intake line from the system
separator vessel to the pump.
– The intake line and the pump are filled with water from the system
separator vessel.
Vent the pump:
1 "AV" vent screw
4. Remove the vent screw from the pump and vent the pump until bubble-
free water escapes.
– If necessary, manually turn the pump using a screwdriver at the fan
wheel until bubble-free water escapes.
5. Tighten the vent screw and ensure that is does not leak.
The device is filled with water.
7.4

Modifying the controller's start routine

 Note!
During commissioning, you must once execute the start routine.
• For information about controller operation, see chapter 9.1
"Operator panel" on page 12 .
The start routine is used to set the required parameters for the device
commissioning. It commences with the first activation of the controller and can
be run only once. Parameter changes or checks are possible after the start
routine in the customer menu is exited, see chapter 9.2.1 "Customer menu" on
page 13 .
 Note!
Plug in the mains plug to provide power (230 V) to the controller.
10 — English
3 "BT" system separator vessel
4 "ST" dirt trap
Fillcontrol Auto — 22.09.2020 - Rev. C
You are now in Stop mode. The "Auto" LED on the operator panel has
extinguished.
Indication on the
Meaning
display
Fillcontrol A Device name
Language Standard software in various languages.
Read the Prior to commissioning, read all of the operating
operating instructions and verify the proper assembly.
instructions
Min. op. pressure Specify the value for the minimum operating pressure
(only with "Magcontrol" make-up variant).
• Calculation of the minimum operating pressure, see
chapter 7.2 "Determining the P
pressure for the controller" on page 9 .
Safety valve Enter the value for the release pressure of the safety valve.
pressure
• This value may be the same as the release pressure
of the system circuit safety valve.
Time Change the flashing display items for "Hour", "Minute",
and "Seconds" to the current time.
• The time of an alarm will be stored in the fault
memory.
Date Change the flashing display items for "Day", "Month", and
"Year" to the current date.
• The date of an alarm will be stored in the fault
memory.
Terminate The system displays this message after a successfully
routine? completed start routine.
Yes Select "Yes" or "No" on the controller display and confirm
with "OK" on the controller operator panel.
• Yes: The start routine is terminated, the device
automatically switches to Stop mode.
• No: The start routine restarts.
2.0 bar The pressure is displayed only in "Magcontrol" make-up
mode.
STOP
 Note!
After successful conclusion of the start routine, you are in Stop mode. Do
not yet switch to Automatic mode.
 Note!
Set the "Magcontrol" or "Levelcontrol" make-up variant in the Customer
menu, see chapter 9.2.1 "Customer menu" on page 13 .
7.5

Parametrising the controller in the Customer menu

Use the Customer menu to display or correct system-specific values. In the
course of commissioning, the factory settings must be adjusted for the system-
specific conditions.
– For adjusting the default settings, see chapter 9.2 "Configuring settings in
the controller" on page 12 .
– For information about controller operation, see chapter 9.1 "Operator
panel" on page 12 .
7.6

Function test

At the device, execute a function test for the "PU" pump. Set the device
controller to manual mode. In manual mode, you manually activate and
deactivate the pumps.
• Press "Manual" on the controller's operator panel.
– The "Manual" LED at the operator panel illuminates to visually
indicate that Manual mode is active.
Select the "PU" pump. Selecting the pump
depends on the set make-up variant,
"Levelcontrol" or "Magcontrol".
minimum operating
0
2.0 bar
PU! Filling
