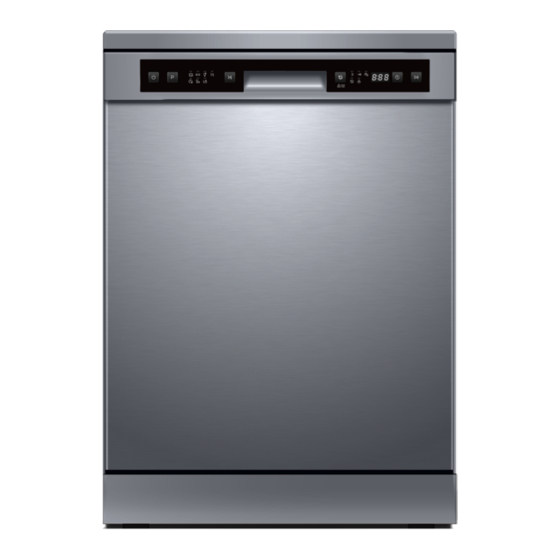

Eurolux EDW612X Installation, Operation & Maintenance Instructions Manual
  1. Manuals
  2. Brands
  3. Eurolux Manuals
  4. Dishwasher
  5. EDW612X
  6. Installation, operation & maintenance instructions manual

Eurolux EDW612X Installation, Operation & Maintenance Instructions Manual

Hide thumbs

Advertisement

Quick Links

INSTALLATION, OPERATION
& MAINTENANCE INSTRUCTIONS
Model:
EDW612X
EASY DECISION

Advertisement

loading
Need help?

Need help?

Do you have a question about the EDW612X and is the answer not in the manual?

Questions and answers

Related Manuals for Eurolux EDW612X

Summary of Contents for Eurolux EDW612X

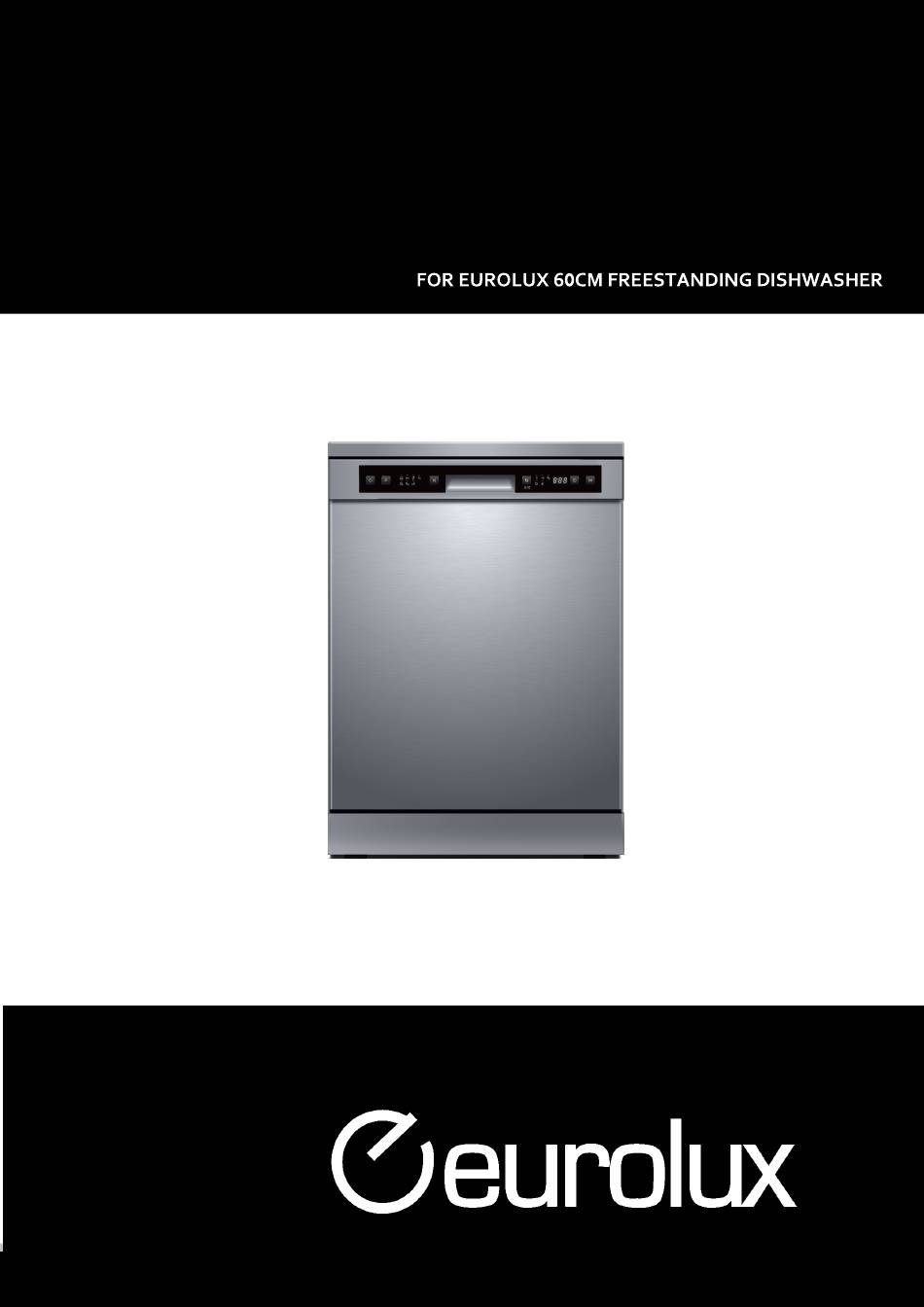

  • Page 1 INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS Model: EDW612X EASY DECISION...

  • Page 2: Table Of Contents

    NSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS Thank you for buying our refrigeration products. To enable you to use your appliance effectively and safely, please read this instruction book carefully before using the appliance and retain for future reference. CONTENTS SECTION PAGE NO. Important Safety Instructions Product Description Installation...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. 1. This appliance is intended to be used in household and similar applications , such as: a. staff kitchen areas in shops, offices and other working environments; b.

  • Page 4: Product Description

    Product Description IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Product Overview EASY DECISION...

  • Page 5: Installation

    INSTALLATION Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. The installation of the pipes and electrical equipment should be done by professionals. For personal safety: Do not use an extension cord or an adapter plug with this appliance. Do not, under any circumstances, cut or remove the earthing connection from the power cord.
  • Page 6 INSTALLATION Position the Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. Levelling the appliance Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the...
  • Page 7 INSTALLATION Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it.

  • Page 8: Operation Instruction

    OPERATION INSTRUCTION Control Panel Operation (Button) Press this button to turn on your dishwasher. Power Select the appropriate washing program, the selected program indicator will Program be lit. When you have about or less than 6 place setting dishware to wash, you can Half-load choose this function to save energy and water.
  • Page 9 OPERATING INSTRUCTIONS Display Intensive For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for some time. This is standard program, it is suitable to clean normally soiled loads, such as pots, plates, glasses and lightly soiled pans, standard everyday cycle.
  • Page 10 OPERATING INSTRUCTIONS Function of The Rinse Aid and Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes.
  • Page 11 OPERATING INSTRUCTIONS Filling the Rinse Aid Reservoir To open the dispenser, turn the cap Carefully pour in the rinse-aid into to the “open” (left) arrow and lift it its dispenser, whilst avoiding it to out. overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive forming during the next wash.
  • Page 12 OPERATING INSTRUCTIONS Filling the Detergent Dispenser Press the release catch on the detergent Add detergent into the larger cavity (A) for the dispenser to open the cover. main wash cycle. For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle.
  • Page 13 OPERATING INSTRUCTIONS Before using your dishwasher: Inside Outside Basket Use Tips Adjusting the upper basket The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket. To adjust the height of the upper rack, follow these steps: Pull out the upper basket.
  • Page 14 OPERATING INSTRUCTIONS Folding back the cup shelves To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use. Folding back the rack shelves The spikes of the lower basket are used for holding plates and a platter.
  • Page 15 OPERATING INSTRUCTIONS Preparing and Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles...
  • Page 16 OPERATING INSTRUCTIONS Recommendations for loading the dishwasher cont. Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in following way: Load hollow items such as cups, glasses, pans etc.
  • Page 17 OPERATING INSTRUCTIONS Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
  • Page 18 OPERATING INSTRUCTIONS LOADING THE BASKETS ACCORDINGTO AS/NZS 2007.1: Upper basket: Number Item Cups Saucers Glasses Lower basket: Number Item Dessert dishes Dinner plates Soup plates Cutlery basket EASY DECISION...
  • Page 19 OPERATING INSTRUCTIONS Cutlery basket: Number Item Forks Soup spoons Dessert spoons Teaspoons Knives Information for comparability tests in accordance with (*AS/NZS Capacity: 12 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: 6 Detergent(Pre/main): 5/25g Door is open at the end of the drying cycle for the drying performance test and last 40mins.
  • Page 20 OPERATING INSTRUCTIONS PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. ) Means: need to fill rinse into the Rinse-Aid Dispenser. Program Description Detergent...
  • Page 21 OPERATING INSTRUCTIONS Starting A Cycle Wash Draw out the lower and upper basket, load the dishes and push them back. It is recommended to load the lower basket first, then the upper one. Pour in the detergent. Insert the plug into the socket. Make sure that the water supply is turned on to full pressure. Close the door, press the Power button, to switch on the machine.
  • Page 22 OPERATING INSTRUCTIONS Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: Press the Start/Pause button to pause the washing. After the spray arms stop working, you can open the door completely. Add the forgotten dishes.

  • Page 23: Maintenance And Cleaning

    MAINTENANCE AND CLEANING WARNING Filtering system The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water. Follow the steps below to clean the filters in the wash cabinet.
  • Page 24 MAINTENANCE AND CLEANING The fine filter can be pulled off the bottom Hold the coarse filter and rotate it of the filter assembly. The coarse filter can anticlockwise to unlock the filter. Lift the be detached from the main filter by filter upwards and out of the dishwasher.
  • Page 25 MAINTENANCE AND CLEANING Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: To remove the upper spray arm, hold the To remove the lower spray arm, pull out the nut in the center still and rotate the spray spray arm upward.
  • Page 26 MAINTENANCE AND CLEANING Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows: Cut off the electrical power to the dishwasher at the supply source. Turn off the water supply and disconnect the water inlet pipe from the water valve. Drain the water from the inlet pipe and water valve.

  • Page 27: Troubleshooting

    TROUBLESHOOTING Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't Fuse blown, or the circuit Replace fuse or reset circuit breaker. start break tripped. Remove any other appliances sharing the same circuit with the dishwasher.
  • Page 28 TROUBLESHOOTING Problem Possible Causes What To Do Spilled rinse-aid. Always wipe up rinse-aid spills immediately. Stained tub interior Detergent with Make sure that the detergent has no colourant may have colourant. been used. White film on inside Hard water minerals. To clean the interior, use a damp surface sponge with dishwasher detergent...
  • Page 29 TROUBLESHOOTING Problem Possible Causes What To Do The dishes are Not enough detergent Use more detergent, or change not clean. was dispensed. your detergent. Items are blocking Rearrange the items so that the spray the movement of the can rotate freely. spray arms.
  • Page 30 TROUBLESHOOTING Possible Causes What To Do Problem The dishes aren't drying Wrong program has been With a short program, the washing selected. temperature is lower, decreasing cleaning performance. Choose a program with a long washing time. Use of cutlery with a Water drainage is more difficult with low-quality coating.

  • Page 31: Technical Information

    TECHNICAL INFORMATION Height (H) Width (W) Depth (D1) Depth (D2) Manufacturer EUROLUX Type / Description EDW612X Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.74 kWh Water consumption of the standard cleaning cycle...

  • Page 32: Warranty Conditions

    EASY DECISION...
  • Page 33 A division of Shriro Australia Pty Limited 2-34 Davidson Street, Chullora NSW 2190 AUSTRALIA: 1300 355 541 www.shriro.com.au NEW ZEALAND: (09) 415 6000 www.monacocorp.co.nz IM Ref: EDW612x 02/2021/02FC F O R I N D O O R U S E O N L Y EASY DECISION...
