Summary of Contents for Eurolux DW9-CBE

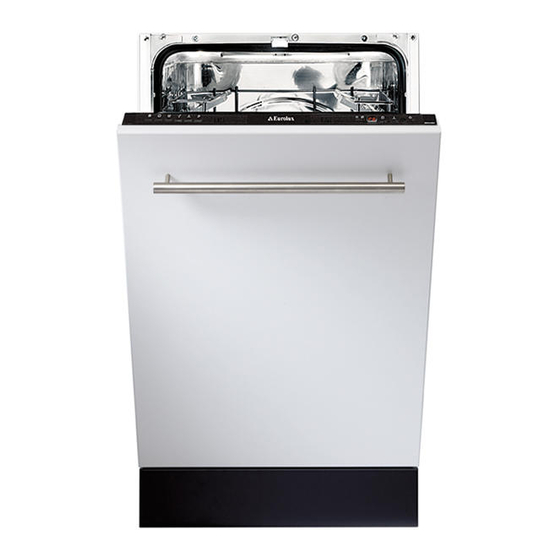

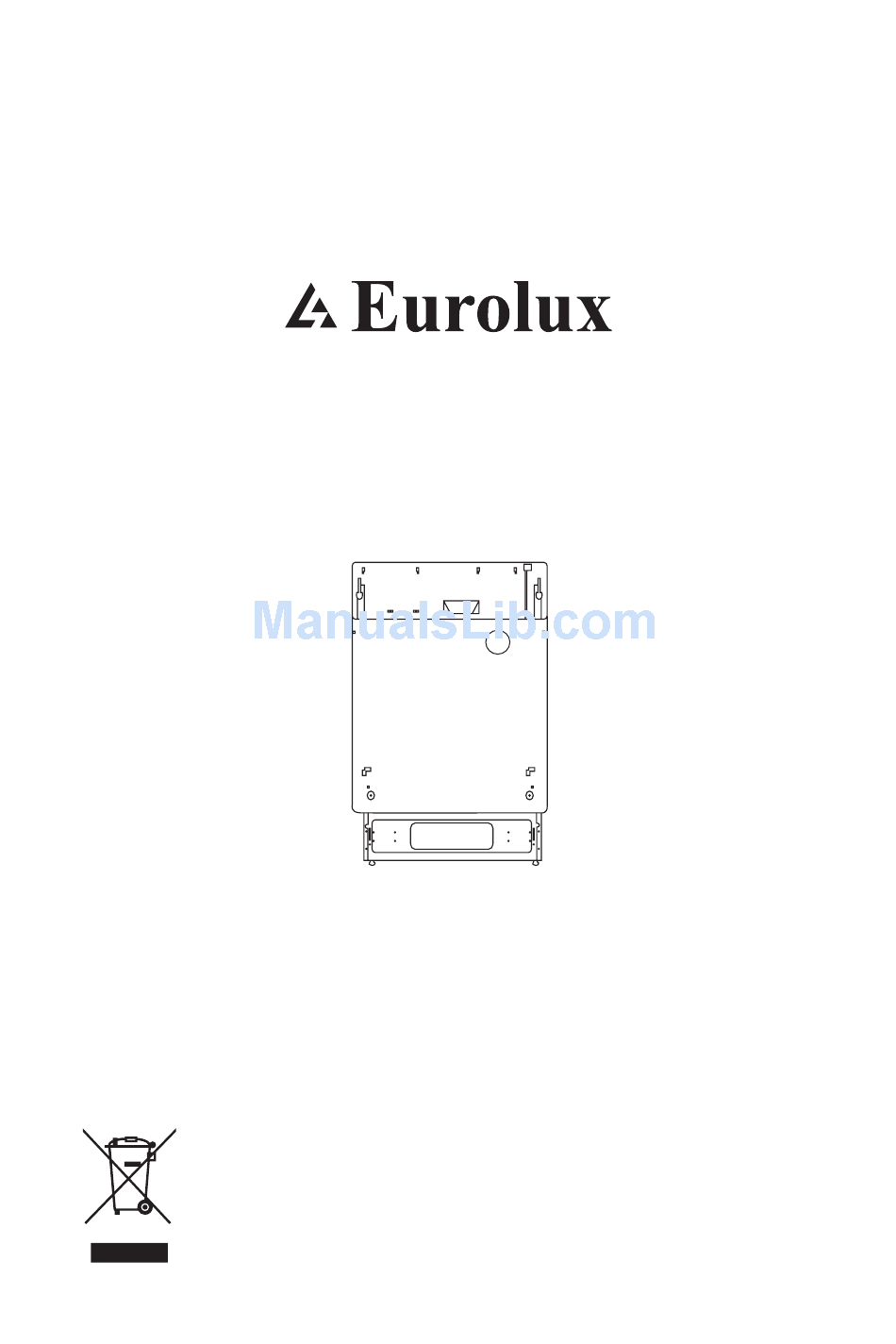

- Page 1 Dishwasher DW9-CBE Instructions for Use Code: 012050...
-
Page 2: Table Of Contents
Index Safety information Installation Getting to know your dishwasher How to fill the salt How to fill rinse aid How to fill the detergent Not suitable for the dishwasher Arranging crockery, glasses, etc. in the dishwasher Programme overview Washing dishes How to keep your dishwasher in shape Care and maintenance Fault finding... -
Page 3: Safety Information
Safety information At time of delivery Check packaging and dishwasher immediately for signs of transport damage. If the appliance is damaged, do not put it into use but contact your supplier or customer service without delay. Please dispose of packaging materials properly. During installation Site the dishwasher and connect it up in accordance with the installation instructions. -
Page 4: If A Fault Occurs
If your family includes children This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capcabilities, or lack of experience and knowledge,unless they have been given supervi- sion or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they to not play with the appliance. -
Page 5: Installation
Installation Positioning the appliance Positioning the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. Levelling the appliance Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the dishwasher, making it level. -
Page 6: Drain Hose Connection
Drain hose connection Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. If necessary, fit a syphon trap (U-bend) with a connecting piece for the drain hose (fig.C). -
Page 7: Getting To Know Your Dishwasher
Getting to know your dishwasher Close-up view (control panel) Cycle select button Cycle indicator light Low salt indicator light "HALF LOAD" Button "HALF LOAD" indicator light ON-OFF Button Delay indicator light ON-OFF Light Delay select button Dishwasher interior Washing Filter Upper Rack Detergent and Rinse Aid Dispenser Rack Height Adjustor... -
Page 8: How To Fill The Salt
How to fill the salt Salt The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water. -
Page 9: How To Fill Rinse Aid
It is recommended that adjustments be made in accordance with the following table: Water Hardness Salt Autonomy Selector Clarke c o n s u m p t i o n º Level mmol/l (cycles/2kg) position degrees (Grams/cycle) 0 - 14 0 - 17 0 - 1,7 14 - 36... -
Page 10: How To Fill The Detergent
How to fill the detergent Detergent Detergent specifically intended for use with dishwashers must be used. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Programme overview". The detergent dispenser is located on the inside panel of the door. -
Page 11: Not Suitable For The Dishwasher
Not suitable for the dishwasher What you should not put into the dishwasher Cutlery and tableware manufactured in whole or part from wood.They become faded and unsightly in appearance.Furthermore,the adhesives that are used are not suitable for the temperature that occur inside the dishwasher.Delicate decorative glassware and vases,special antique or irreplaceable china. -
Page 12: Arranging Crockery, Glasses, Etc. In The Dishwasher
Arranging crockery, glasses, etc. in the dishwasher Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from be- coming clogged, which results in reduced performance. If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are soaked before washed. - Page 13 How to use the upper rack The upper rack is designed to hold more delicate and lighter dishware, such as glasses, cups and saucers, plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they do not get moved by the spray of water.
-
Page 14: Programme Overview
Programme overview Type of Condi- Type of Amount of crokery e.g. Wash tion of china, pots/ food food Description of cycle food pan s, programme Load remains remains cutiery, remains glasses, etc Pre-wash with hot water. Extended wash at 70°C. Soups, Rinses with cold water. - Page 15 Detergent Delayed Energy Water Duration in Rinse Aid Start consump- consump- Extended minutes Prewash tion in kWh tion in litres Wash 1.36 1.25 1.00 0.93 0.80 0.76 0.75 0.65 0.27 0.24 0.02 0.02...
-
Page 16: Washing Dishes
Washing dishes Programme selection The most appropriate programme can be identified by comparing the type of crockery, cutlery, etc., as well as the amount and condition of food remains, with the details contained in the wash cycle table.The corresponding programme sequence, duration and consumption details are shown in the right half of the overview. -
Page 17: End Of Programme
End of programme Six beeps will indicate that the wash cycle has finished and all the programme indicators light. Switching the dishwasher OFF Several minutes after the programme has ended: Open the door. Set ON-OFF button “ C ” to OFF. Remove dishes, etc. - Page 18 1/2 Load Button This button ìBî (see" Close-up View (Control Panel) ) makes it possible to wash dishes using only the upper rack if there are not enough dishes for a full load. This will allow you to save on water and energy consumption.
-
Page 19: How To Keep Your Dishwasher In Shape
How to keep your dishwasher in shape After Every Wash After every wash, set the ON-OFF button “A” to off and leave the door slightly ajar so that moisture and odors are not trapped inside. Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks. No solvents or Abrasive Cleaning Products To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. -
Page 20: Care And Maintenance
Care and maintenance Regular inspection and maintenance of your appliance helps to prevent problems from occurring.This saves time and aggravation.You should therefore carefully inspect the inside of your dishwasher from time to time. Overall condition of appliance Check that no grease or scale has accumulated on the inside of the dishwasher. If you discover any deposits: Clean the interior of the dishwasher thorughly with a detergent solution. -
Page 21: Fault Finding
Fault finding Resolving minor problems yourself Experience has shown that you can resolve most problems that rise during normal daily usage yourself, without having to call out a service engineer.Not only does this save costs,but it also means that the appliance is available for use again that much sooner. - Page 22 When the programme indicators “ A1,A3,A4” blinks. Have you checked whether: the drain hose is crimped or bent. the drain hose is too high. When the programme indicators “ A1,A4” blinks. Have you checked whether: the drain hose is too low. If you take all these checks and the dishwasher still does not function or your dish- washer have any other error display, you can press the programme button “E”...
- Page 23 Water remains inside appliance after programme has ended Blockage or kind in drainage hose. Pump is jammed. Filters are blocked. The programme is still running. Wait for the programme to end ..during washing Unusual amount of foam is creased Normal washing up liquid has been poured into the rinse-aid container.
- Page 24 Plastic items are discoloured Not enough detergent was added to dispenser. Detergent has insuffcient bleaching properties. Use a detergent containing a chemical bleaching agent. White stains are left on crockery, glasses have a milky appearance Not enough detergent was added to dispenser compartment. Amount of rinse-aid was set too low.
-
Page 25: Technical Data
Technical data 44.6 cm Width Depth 55 cm Height 82 cm Capacity 9 standard place settings Mains water pressure 0.03-0.6MPa Power voltage 220-240V~ 50Hz Maximum current intensity 2150W Total absorbed power Important information Notes on waste disposal Old appliances still have some residual value. An environment-friendly method of disposal will ensure that valuable raw materials can be recovered and used again. -
Page 26: General Information
General information Measures must be taken to ensure that built-under and built-in units that are subsequently re-sited as free-standing appliances cannot topple over. This can be achieved by bolting the dishwasher to the wall or fitting it under a continuous work surface which is screwed to the adjacent cupboards. For Switzerland only: There are no restrictions on installing the appliance between wooden or plastic walls as part of a fitted kitchen. - Page 27 WB: Wiring box DV: Dispenser valve TL: Temperature limiter PS: Power switch SLV: Single layer valve HE: Heating element PL: Power light SV: Softener valve HR: Heating element relay DS: Door switch OS: Overflow switch SSS: Spy salt switch WS: Water level switch IV: Inlet valve TS: Temperature sensor DP: Drain pump...
