Audix L5 Quick Start Manual

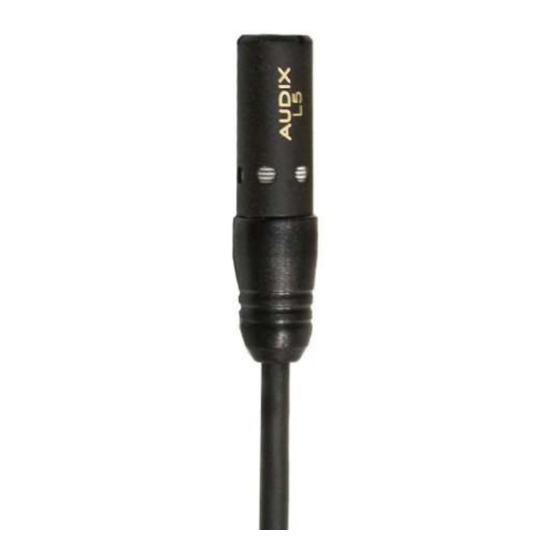

L5
LAVALIER CONDENSER MICROPHONE

OVERVIEW:

The L5 is a micro-sized (5mm) cardioid condenser microphone also available
with an omni-directional polar pattern (L5-O). The L5 series, which features
modular, interchangeable capsules, is intended for use with the RAD360
wireless system as well as hard-wired vocal and instrument applications.
Designed to provide the highest quality sound in the smallest possible
package, the L5 miniature condenser is ideally suited for broadcast and live
sound applications for speech, interview, presentation, theatrical production,
the L5 has the ability to accurately capture and reproduce vocals from a
comfortable distance of 4-8 inches or for close miking acoustic instruments
from a distance of 1-2 inches.
The L5 is characterized with a uniformly controlled cardioid polar pattern
helping to provide isolation and feedback control where applicable. The L5-O
is omni directional, helping to create a free open-air and natural sound with
excellent transient response. With a smooth and accurate frequency range of
20 Hz - 20 kHz for L5-O and 40 – 20k for L5, the microphone is lightweight
and discrete.

SUPPLIED ACCESSORIES:

Tie clip (MC-L5)
External foam windscreen (WS10)
Carrying pouch (P1)
APS-910 - Phantom power adapter (for L5P and L5O-P )

OPTIONAL ACCESSORIES:

MC-L253 - Mic Clip
APS-910 - Phantom power adapter
APS-911 - Battery / Phantom power adapter with on / off switch and
bass roll-off

MODEL VARIATIONS:

L5 - Cardioid microphone with 3' cable terminating to a mini-XLRf connector
for use with RAD360 wireless
L5-O - As above with omni-directional capsule
L5P - Cardioid microphone with 8' cable terminating to a mini-XLRf connector
with phantom power adapter for hard wired applications.
L5O-P - As above with omni-directional capsule
MC-L5 MC-L53 APS-910 APS-911

FEATURES:

5mm modular capsules
Broadcast quality
Small, lightweight, low profile
Natural, accurate sound reproduction
Easy to use and set up

APPLICATIONS:

For use with RAD360 wireless bodypack
Speech
Interviews
Presentation
Acoustic instruments
L5
