Audix OM3 Manual

OM3
Dynamic Vocal Microphone

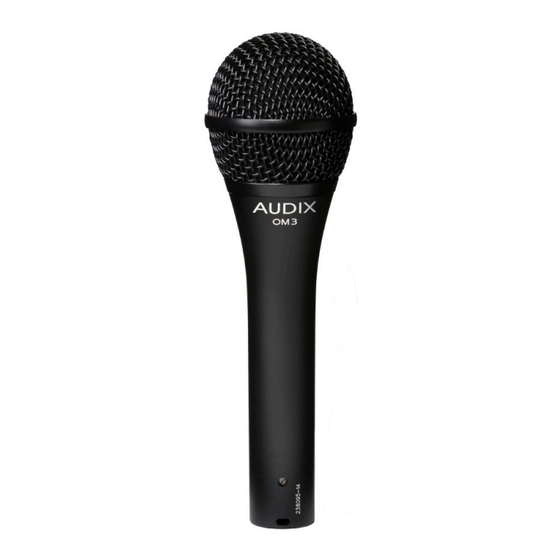

OVERVIEW
Designed, assembled and tested by Audix in the USA, the OM3 is a dynamic vocal
microphone used for a wide variety of live, studio, and broadcast applications. The
OM3 provides clear and accurate sound reproduction, resistance to feedback and the
ability to handle very high SPL (Sound Pressure Levels) without distortion.
The OM3 is designed with a tight and uniformly controlled hypercardioid polar
pattern which helps to isolate the vocals from the rest of the instruments on stage.
With a wide frequency range of 50 Hz - 18 kHz, the OM3 employs a VLM™(Very Low
Mass) diaphragm for natural sound with exceptional transient response.
The OM3 is naturally attenuated in the lower mid-bass frequencies in order to reduce
boominess and handling noise. This, in conjuction with an extremely articulate mid-
range, makes the OM3 an excellent choice for PA systems of all sizes. The OM3 is well
balanced, comfortable to hold, durable, and designed with high standards and tight
tolerances.
The OM3 is manufactured with a precision die cast zinc alloy body, durable black
E-coat finish, dent resistant steel mesh grill and gold plated XLR connector.
MODEL VARIATIONS
OM3S - Same as OM3 with On-Off switch
SUPPLIED ACCESSORIES
MC1 - Heavy-duty nylon molded clip with brass insert
P1 - Carrying pouch
OPTIONAL ACCESSORIES
WS357 - Optional high quality external foam windscreen for reducing wind, sibilance,
and pop noise.
CBL20 - 20' premium XLR-XLR balanced mic cable. Quad conductor, twisted pair with
braided shield for maximum conductivity. 6mm PVC jacketed.
CBLDR25 - 25' premium right angle XLR-XLR balanced mic cable. Quad conductor,
twisted pair with braided shield for maximum conductivity. 6mm PVC jacketed.
T50K - Professional impedance matching transformer that allows a low impedance
mic to be connected to a high impedance input.
TRIPOD - Metal tripod desktop stand for use with any 5/8" threaded mic clip.
MC1 P1 WS357 CBL20 CBLDR25
FEATURES
· Multi-purpose vocal and instrument mic for live
sound, home studio
· Clear, natural, accurate sound for mid-size to large
PA systems
· Excellent off-axis rejection on stage for increased
feedback rejection. Isolates the vocal from other
instruments on stage
· Handles high SPLs without distortion
· VLM Capsule
· Designed, assembled & tested in the USA
· 5 year warranty
APPLICATIONS
· Lead or backing vocals
· Live recording
· Broadcast
· Home studio - vocal and instrument
· Sax, brass, guitar, dobro, flute, percussion, drums
T50K TRIPOD
OM3
