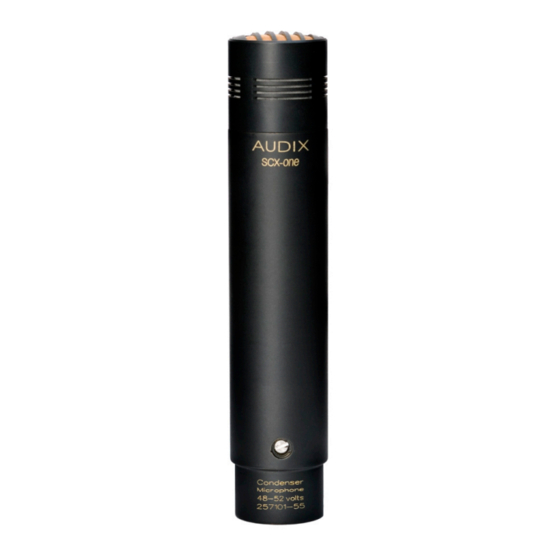

SCX1-C
STUDIO CONDENSER MICROPHONE
OVERVIEW:
Designed, machined, assembled and tested by Audix in the USA, the SCX1-C is
a professional studio cardioid condenser microphone designed for a wide variety
recording, broadcast, and live sound applications. Known for its sensitivity, pin-
point accuracy, low profile, and consistency, the SCX1-C is also available with
hypercardioid (model SCX1-HC) or omnidirectional (model SCX1-O) capsules.
With a smooth uniform frequency response from 40 Hz - 20 kHz, the SCX1-C
is very consistent when responding to on and off-axis signals, and exhibiting
excellent phase coherence and minimal proximity effect. The SCX1-C is
characterized with a wide cardioid polar pattern; this, coupled with the high output
and sensitivity of the microphone, makes the SCX1-C an ideal choice for miking
overhead, room ambience, orchestral sections, stringed instruments, piano, vibes,
and sound effects.
Other features include a 21 mm gold vapor capsule miniaturized electronics,
and an extremely small footprint. The SCX1-C will handle sound pressure levels
of 130 dB and will provide up to 20 dB of ambient noise rejection. In addition
to acoustical instruments, the SCX1-C is an excellent choice for group vocals,
speech, or foley work.
The SCX1, which is manufactured to exacting standards and tight tolerances,
features a precision machined brass body, interchangeable capsules, black e-coat
finish, laser etched model and serial number, Switchcraft ® XLR connector, and
includes a heavy duty nylon clip.
SUPPLIED ACCESSORIES:
Foam lined wooden case (CASE-WOOD)
Heavy duty snap on nylon mic clip
External foam windscreen (WS-81)
OPTIONAL ACCESSORIES:
APS-2 - Two-channel phantom power supply
DFLEX - Dual pivot clip for piano mounting
STAND-KD - Pedestal boom mic stand
SMT-25 - Shockmount system
PD-133 - Pop diffuser
P1 - Carrying pouch
DFLEX SMT-25 CASE-WOOD
FEATURES:
Extremely sensitive, highly accurate
Low noise electronics
Small, low profile, easy to place
Roadworthy
APPLICATIONS:
Acoustic stringed instruments
Ambient room miking (SCX1-C, SCX1-O)
Group Vocal (SCX1-O)
Drum Overheads
High Hat (SCX1-HC)
Studio Vocals (SCX1-C and SCX1-O)
Speech
Piano, Vibes
Flute, bells, chimes, marimba
Audience mics for ear monitors
MODEL VARIATIONS:
SCX1-MP - matched pair of SCX1-C
SCX1-HC - hypercardioid polar pattern
SCX1-O - omnidirectional polar pattern
REPLACEMENT CAPSULES:
CPS-SCXC - Cardioid
CPS-SCXHC - Hypercardioid
CPS-SCXO - Omni directional
SCX1-C
APS-2
