Audix M44 Quick Start Manual

M44
MINIATURE CONDENSER MICROPHONE
OVERVIEW:

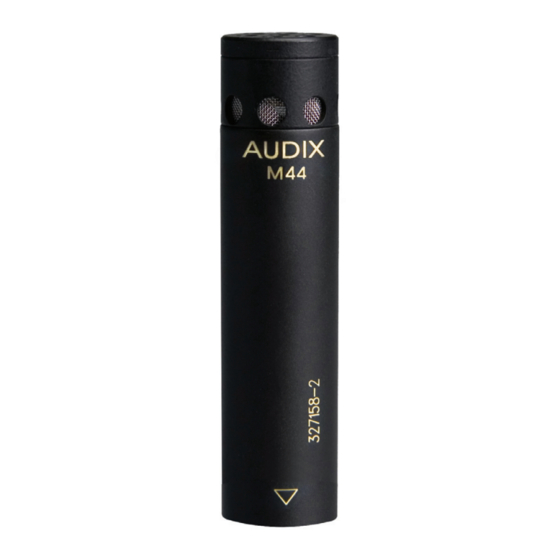

The M44 is a miniaturized condenser microphone with a fully integrated
preamp and detachable cable. This microphone is designed for close miking
high SPL instruments and sound effects. The M44, which is equipped with a
cardioid capsule, is also available in a hypercardioid polar pattern giving the
microphone the unique ability to be used in a wide variety of live, studio and
broadcast applications.
The M44 is available with a wide array of clips and accessories enabling the
microphone to be used for drums, percussion, high SPL musical instruments
and high SPL sound effects such as loud booms or explosions.
SUPPLIED ACCESSORIES:
25'cable with mini-XLRf - XLRm connectors (CBL-M25)
Mic stand adapter (MC-MICRO)
Lug mount adapted for hand percussion instruments with shockmount
ring (DCLAMP-MICRO)
Drum rim mount attachment with shockmount ring (DVICE-MICRO)
External foam windscreen (WS10)
Carrying pouch (P1)
OPTIONAL ACCESSORIES:
SMT-MICRO - Stand adapter with rubber insulated shockmount
WS1218 - Heavy duty external foam windscreen
MODEL VARIATIONS:
M44-HC - Same as above with hypercardioid capsule
SMT-MICRO DVICE-MICRO DCLAMP-MICRO
FEATURES:
Small, lightweight, low profile
Miniaturized integrated preamp circuitry
No external power adapter needed
12 mm gold vapor diaphragm
Extremely low noise, high SPL handling
Available in cardioid or hypercardioid
APPLICATIONS:
High SPL Instruments
High SPL Sound Effects
Explosions, Gun Shots, etc.
Cymbals
Percussion
Brass
M44
MC-MICRO
