Audix UEM81C Quick Start Manual

UEM81C
OVERVIEW:

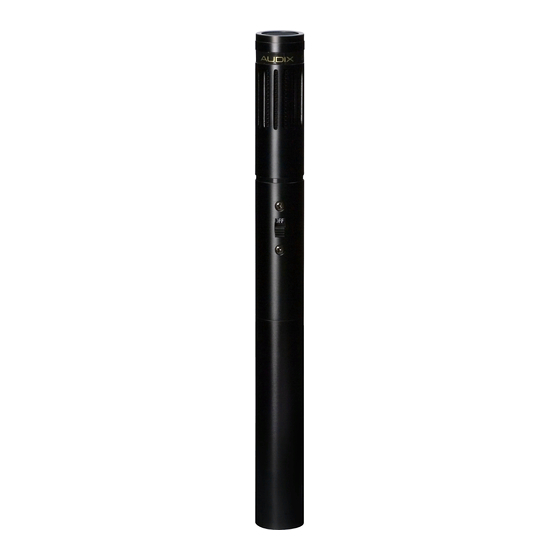

The UEM81C is a pre-polarized condenser microphone used for stage,
studio, video applications and broadcast applications. The UEM81C is
conveniently powered by one AA battery; therefore it is not dependent
on phantom power for operation. Known for its clear, accurate response
and flexibility to handle close or distance miking, the UEM81C is well
suited for a wide variety of vocal and instrument applications.
Characterized with a uniformly controlled cardioid polar pattern, the
UEM81C is designed to capture the acoustics of vocals or instruments
while at the same time isolating it from the rest of the ambient noise on
stage or in the room. With a wide frequency range of 40 Hz – 20 kHz,
the UEM81C is equipped with an on-off switch as well as with a bass
roll-off switch.
The UEM81C is very easy to position, durable and manufactured with
high standards and tight tolerances. Roadworthy construction includes
a machined aluminum body and capsule housing, black e-coat finish,
interchangeable threaded capsule and snap to fit composite clip.
SUPPLIED ACCESSORIES:
Modular preamp supply with on-off switch and bass roll-off filter (PS 81)
Modular cardioid capsule (CPS81C)
Tension-fit clip (MC81)
External Foam Windscreen (WS81C)
20' XLR-XLR mic cable
Vinyl carrying box
OPTIONAL ACCESSORIES:
D Clip - Heavy duty tension clip
SMT 25 - Shockmount suspension clip
TRIPOD - Tripod mic stand
REPLACEMENT CAPSULE:
CPS 81S - Modular shotgun capsule
WS81C UEM81C on MC81
INSTRUMENT CONDENSER MICROPHONE
SMT-25
FEATURES:
Excellent sonic quality
AA Battery operated
Highly sensitive
On-off switch, bass roll-off filter
Lightweight, easy to position
Modular capsule
APPLICATIONS:
Live sound, recording, video
Vocals - lead, background, group
Acoustic instruments
Overheads, room ambience
TRIPOD
UEM81C
