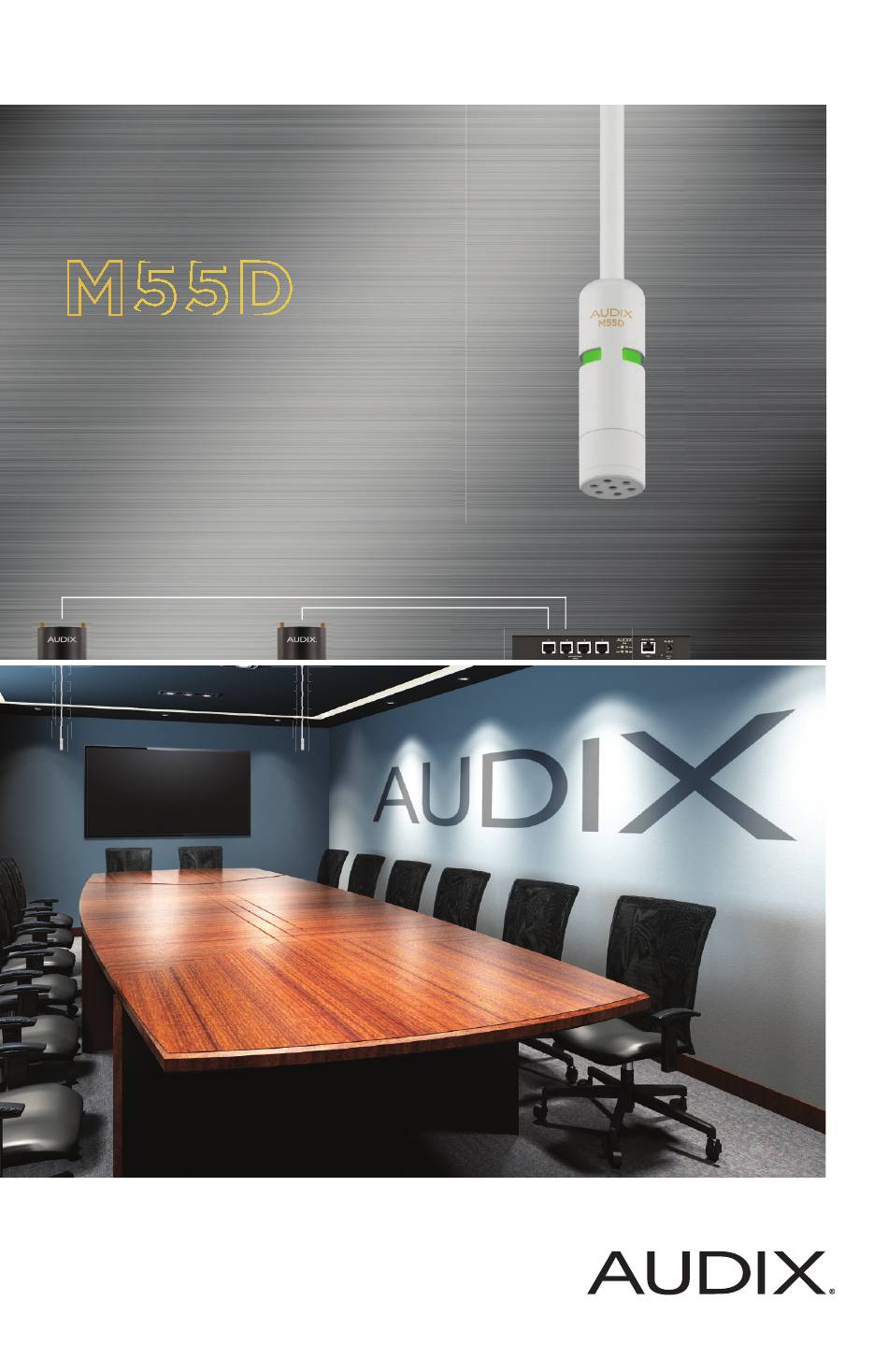

- Page 1 INSTALLATION & OPERATING GUIDE DANTE ® –AES67 MICROPHONE INTERFACE M55WD M55WD...
- Page 2 90% and eliminates wiring errors. Once the connection is made to the network via the Audix DN4 interface, the Audix microphone(s) will be automatically recognized and populated by model number in the Audix DSP plugin.
- Page 3 M55D FIGURE 5 FIGURE 6 Connect up to four microphones to the Connect the DN4/DN43 Dante-AES67 Audix DN4 or one M3 and one single- interface to a PoE switch (see DN4/ channel microphone to the Audix DN43 DN43 guide). interface.
- Page 4 6. See tech support at audixusa.com for updated API / Plugin information © 2019 Audix Corporation. Audix is a registered trademark of the Audix corporation. Specifi cations subject to change without notice. For service and warranty information, visit AudixUSA.com/service or call 800.966.8261...
