Audix i5 Instruction Manual

i5
DYNAMIC INSTRUMENT MICROPHONE
OVERVIEW:

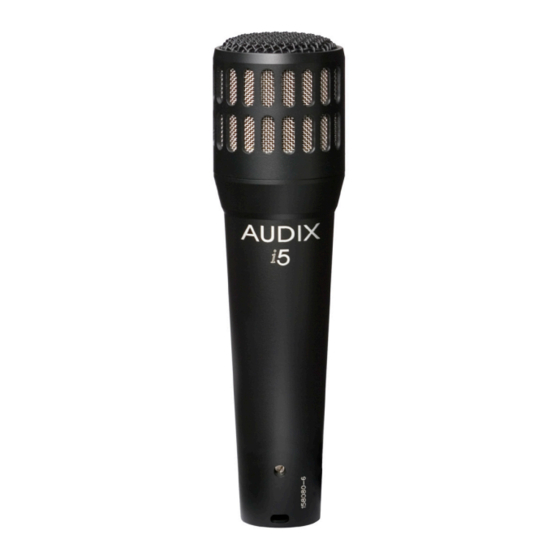

Designed, assembled and tested by Audix in the USA, the i5 is a
dynamic instrument microphone used for stage, studio and broadcast
applications. The i5 is able to handle sound pressure levels in excess
of 140 dB without distortion and can be used to mic a wide variety of
musical instruments, guitar and bass cabinets, vocals and speech.
The i5 is characterized with a cardioid pickup pattern for isolation
and feedback control and is equipped with a VLM™ (Very Low Mass)
diaphragm for natural, accurate sound reproduction.
The i5 is sturdy, compact and easy to position. With a wide frequency
response of 50 Hz - 16 kHz, the i5 provides clear, accurate, natural
sound reproduction without having to rely on EQ. Roadworthy
construction includes a precision cast zinc alloy body, steel grill, black
e-coat finish, laser etched model and serial number, Switchcraft® XLR
connector and includes a heavy duty nylon mic clip.
SUPPLIED ACCESSORIES:
Heavy duty nylon mic clip (MC1)
Carrying pouch (P1)
OPTIONAL ACCESSORIES:
DFLEX - All purpose percussion clamp
DVICE - Spring loaded rim mount clamp
DCLAMP - Tension rod mic clamp
WS-i5 - External foam windscreen
CBL-20 - 20' XLR-XLR mic cable
CBL-DR25 - 25' right angle XLR mic cable
CAB GRABBER - Tension held mic holder, clamps to guitar cabinets
DCLAMP DFLEX i5 on VOCALS
FEATURES:
Clear and accurate sound reproduction
Handles high SPL without distortion
Provides exceptional gain before feedback
Provides excellent isolation on stage
Precision cast zinc alloy body and grill
5 year warranty
APPLICATIONS:
Live stage, studio
Snare, toms, percussion
Guitar cabinets, electric instruments
Bass cabinets
Brass, flute, woodwinds
Acoustic instruments
Vocals, speech
CAB GRABBER i5 on SAX
i5
