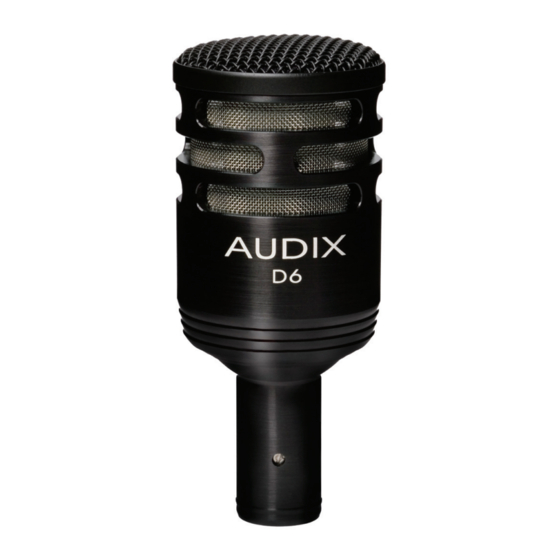

Audix D6 Features & Specifications

D6
DYNAMIC KICK DRUM MICROPHONE

OVERVIEW:

Designed, machined, assembled and tested by Audix in the USA, the
D6 is a dynamic instrument microphone used for stage, studio and
broadcast applications. The D6, which is characterized with a cardioid
pickup pattern for isolation and feedback control, is equipped with
a VLM™ (Very Low Mass) diaphragm for natural, accurate sound
reproduction.
The D6 is lightweight, compact and easy to position. With a wide
frequency response of 30 Hz - 15 kHz and the ability to handle sound
pressure levels in excess of 144 dB, the D6 is an excellent choice for
miking instruments requiring extended low frequency reproduction such
as kick drums, large toms and bass cabinets.
The D6 includes a precision machined aluminum body, black anodized
finish, laser etched model and serial number, steel mesh grill,
Switchcraft® or Audix XLR connector and is supplied with a tension-fit
heavy duty nylon mic clip.
Transformerless design, low impedance and balanced output allow for
interference-free performance even with long cable runs.

SUPPLIED ACCESSORIES:

Tension-fit heavy duty microphone clip (DCLIP)
Carrying pouch (P1)

OPTIONAL ACCESSORIES:

TRIPOD- Tripod microphone stand
DFLEX - All purpose percussion clamp
DVICE - Spring loaded rim mount clamp
STAND-KD - Adjustable kick drum microphone stand
CBL-20 - 20' XLR-XLR Low noise microphone cable
CBL-DR25 - 25' Right angle XLR-XLR low noise microphone cable

MODEL VARIATIONS:

D6N - Same as above with a nickel finish
D6S- Same as above with a silver finish
D6-NICKEL D-CLIP D6 on KD-STAND

FEATURES:

Compact, lightweight
Machined aluminum body
VLM diaphragm
Studio quality sound
Excellent mid-bass transient response
Handles extremely high SPL without distortion
Roadworthy construction
5 year warranty

APPLICATIONS:

Live stage, recording
Kick drum
Floor tom
Bass cabinets
Leslie bottom
DFLEX CBL-DR25
D6
