DCF 600 Field supply converter
The DCF 600 field supply converter range is a system of
components and complete standard cabinets to control
the field supply of DC motors. It consists of individual
components, based on the DCS 600 power converter
modules. The difference to the armature converter is only

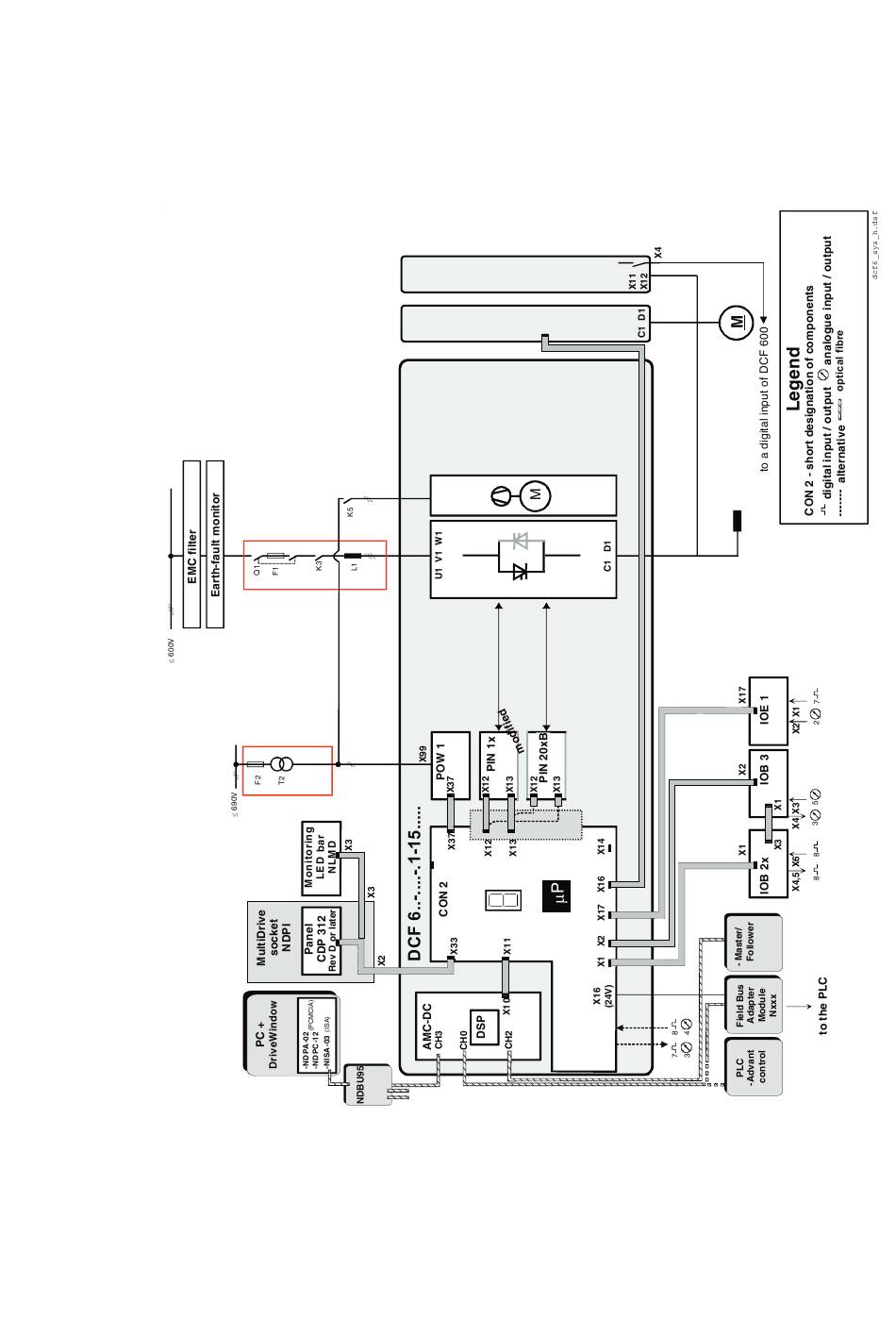

Fig. 2/2: DCS 600 MultiDrive Components overview for field supply converters
II F 2-2
3ADW000072R0501_DCS600_System_description_e_e
DCF 506
DCS 600
CZD-0x
V260
to other drives
This overview has been designed to help you to familiarize yourself
with the system; its main components are shown in the diagram above.
The system's heart is the DCF 600 field supply converter module.
the modified power interface board SDCS-PIN-1x (if
used) and the reduced range of current and voltage types
(see table 2.2/2). The function for field supply will be
selected by software parameters.
Note: Armature and field converters use the same firmware.
