2 DCS 600 MultiDrive Components Overview
DCS 600 Armature converter
The DCS 600 MultiDrive power converter range is a
system of components and complete standard cabinets to
control DC motors. It consists of individual components,
based on the DCS 600 power converter modules. This

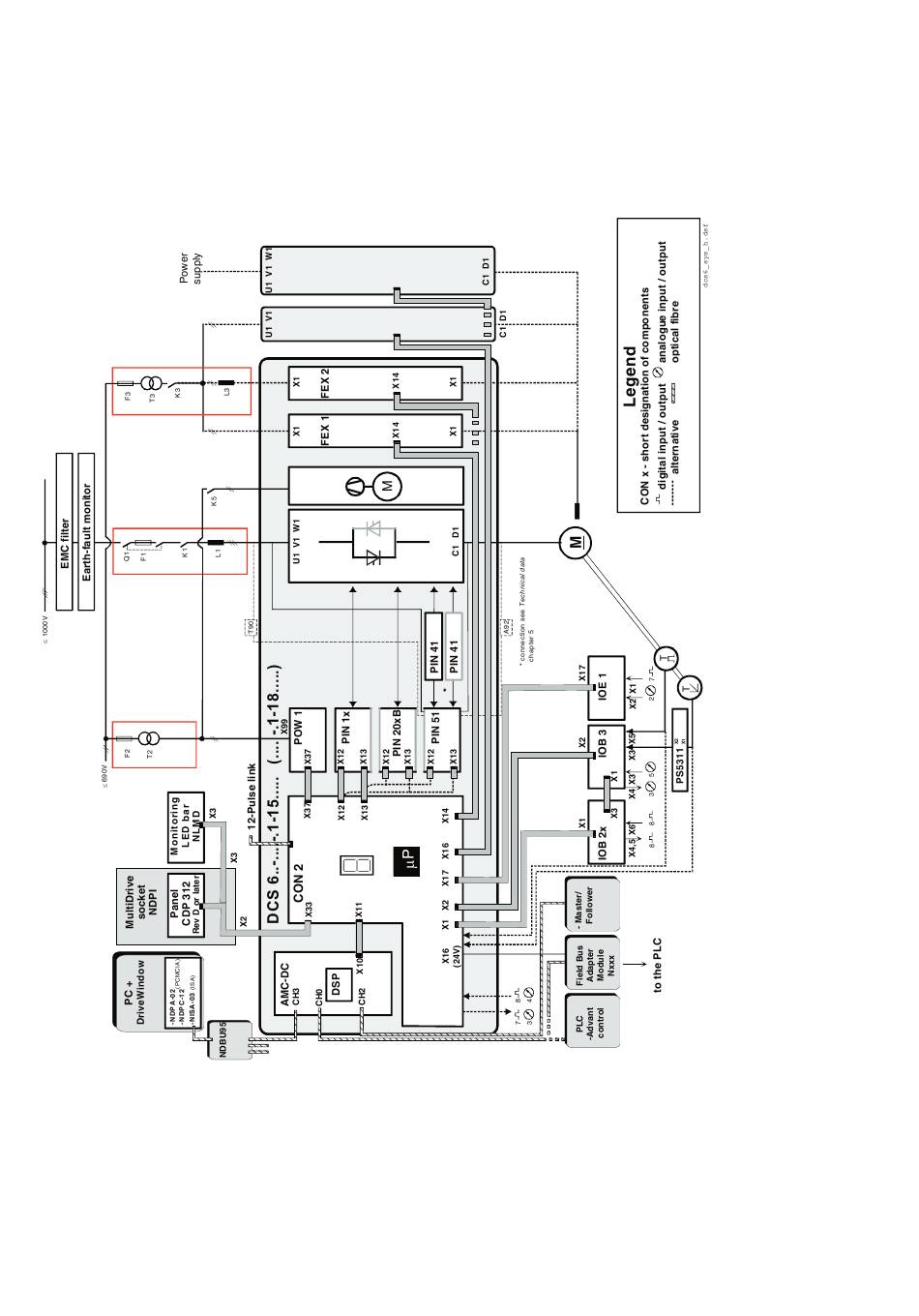

Fig. 2/1: DCS 600 MultiDrive Components overview for armature converters
Three-phase field supply
DCF 601 / 602
DCF 503A / 504A
V260
to other drives
This overview has been designed to help you to familiarize yourself
with the system; its main components are shown in the diagram above.
The system's heart is the DCS 600 converter module.
3ADW000072R0501_DCS600_System_description_e_e
chapter provides a brief description of the DCS 600
MultiDrive components available for matching the drive
with the conditions on site.
X16
X2
II F 2-1
