Types of load
Load Load for
cycle converter
DC I I continuous (I
DC I
DC II I for 15 min and
DC II
1,5 * I for 60 s
DC II
DC III * I for 15 min and
DC III
1,5 * I for 120 s
DC III
DC IV * I for 15 min and
DC IV
2 * I for 10 s
DC IV
* Load cycle is not identical with menu item Duty cycle in DCSize !
Table 2.3/2: Definition of the load cycles
If the driven machine's load cycle does
not correspond to one of the examples
listed, you can determine the necessary
power converter using the DCSize soft-
ware program.
This program can be run under Microsoft
and enables you to dimension the motor and the power
converter, taking types of load (load cycle), ambient
temperature, site elevation, etc. into account. The
design result will be presented in tables, charts, and can
be printed out as well.
To facilitate the start-up procedure as much as possible
the converter´s software is structured similar as the
inputs made at the program. Because of that many of
the data can be directly utilized at the converter like
high current, line voltage and others.
Typical applications
) pumps, fans
dN
extruders, conveyor belts
extruders, conveyor belts
®
Windows,

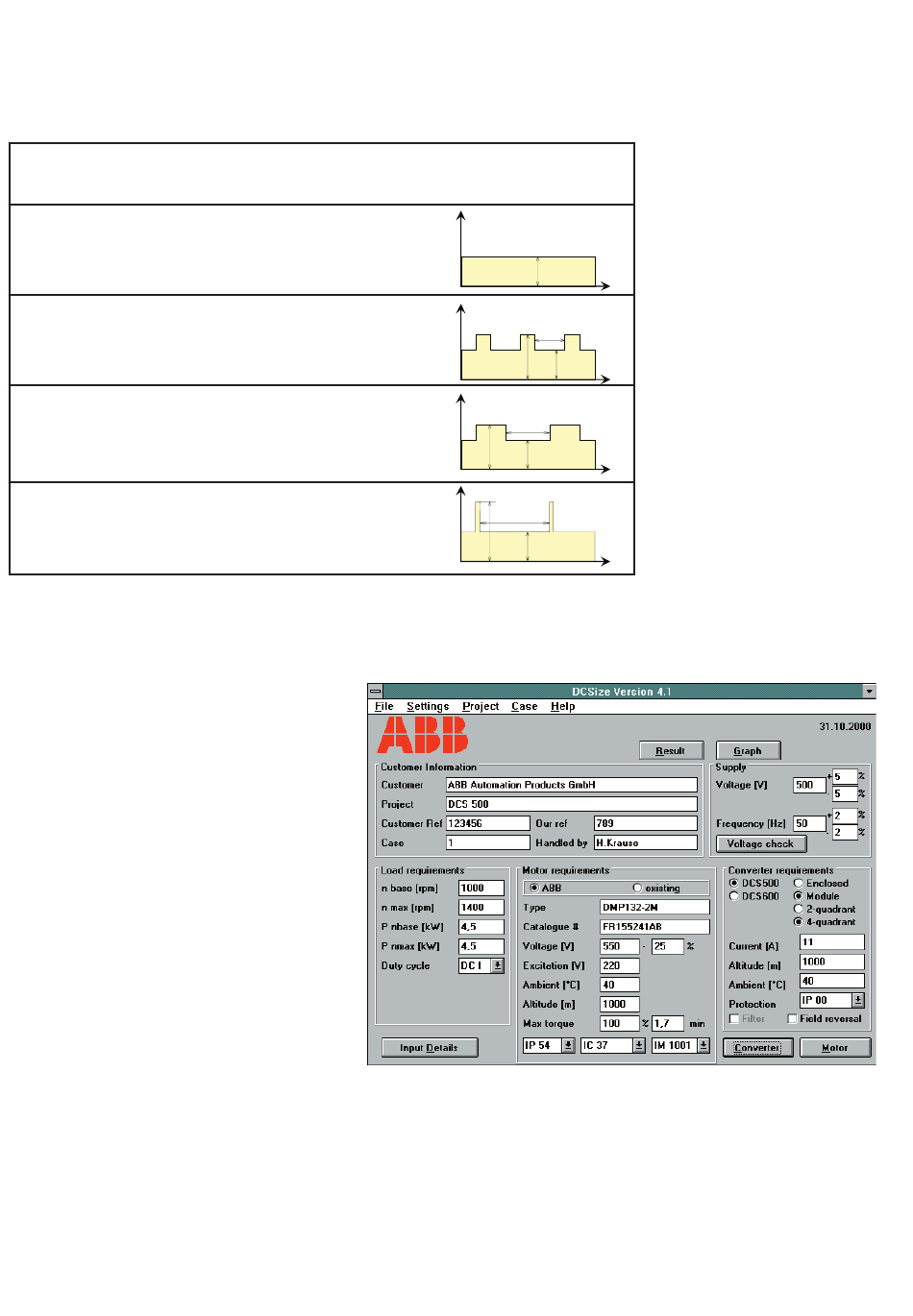

Fig. 2.3/1: Entry screen of DCSize.
