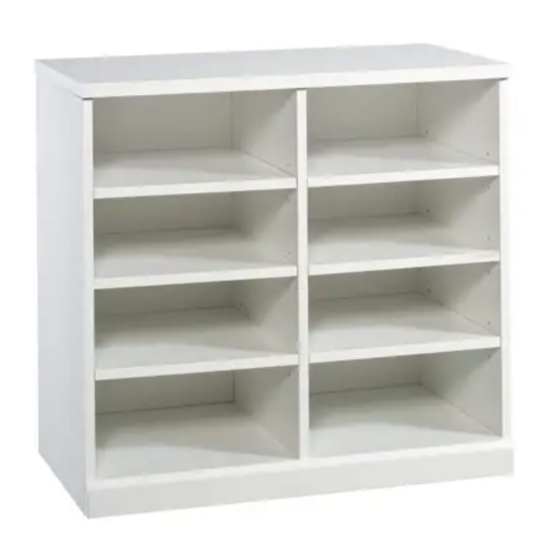

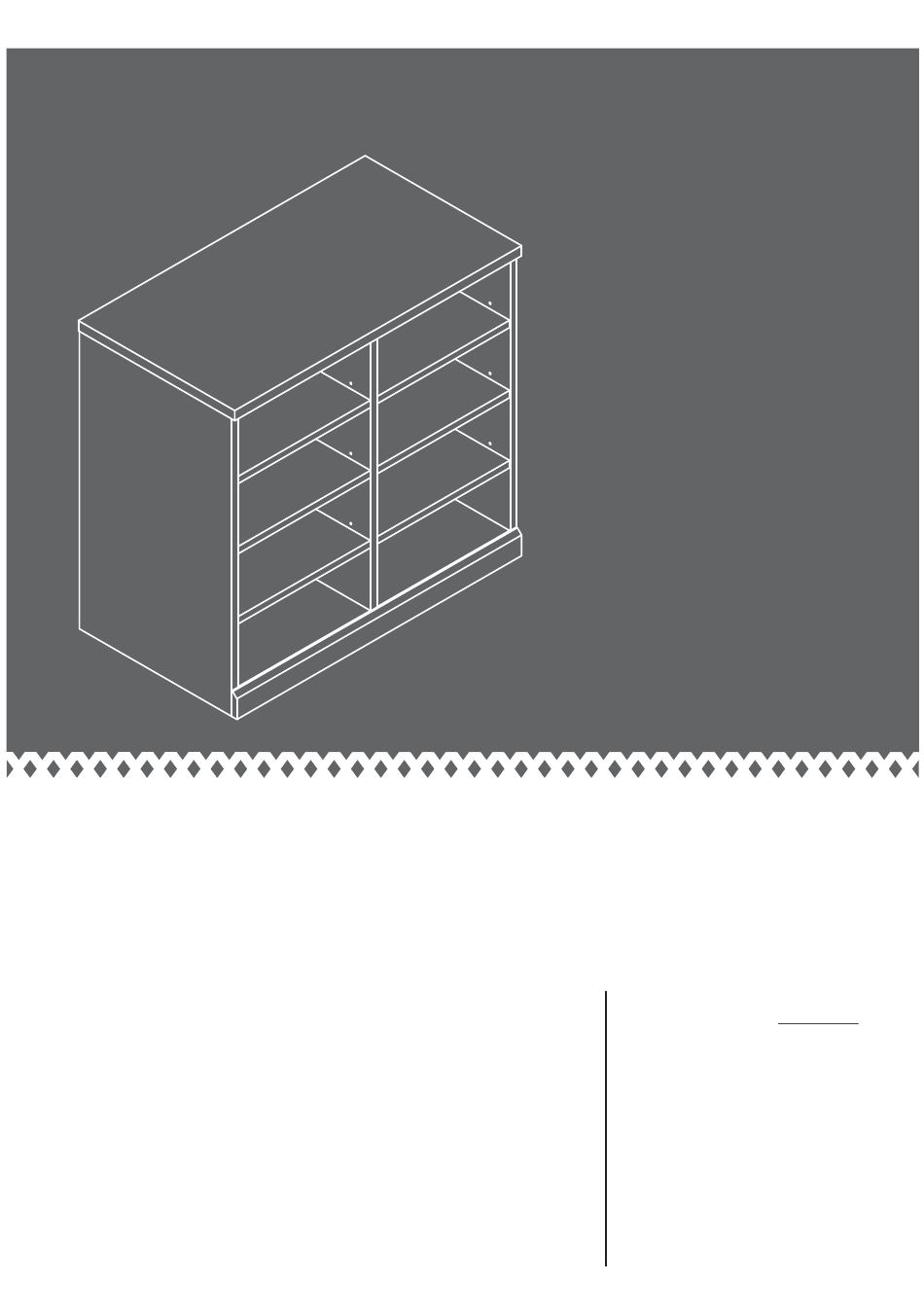

- Page 1 Teknik Treat yourshelf. Open Storage Cabinet Craft Collection | Model 421405 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Table of Contents Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-12 Français 13-14 Skip the power trip. This time. Español 15-16 Safety 17-18 Warranty Page 2...
- Page 3 Now you know Part Identifi cation our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. RIGHT END (1) LEFT BOTTOM (1) UPPER BACK (1)
- Page 4 Hardware Identifi cation å Screws are shown actual size. You may receive extra hardware with your unit. HIDDEN CAM - 17 CAM SCREW - 17 WOOD DOWEL - 9 CAM COVER CARD - 1 METAL BRACKET - 4 METAL PIN - 24 SILVER 1/2"...
- Page 5 Step 1 Assemble your unit on a carpeted fl oor or on the empty å carton to avoid scratching your unit or the fl oor. Push seventeen HIDDEN CAMS (1) into the ENDS (A å and B), UPRIGHT (D), BOTTOMS (E and F). Arrow (17 used) Arrow...
- Page 6 Step 2 Turn seventeen CAM SCREWS (2) into the ENDS (A and B), å TOP (C), UPRIGHT (D), and BASE (H). (17 used) Page 6...
- Page 7 Step 3 Insert two WOOD DOWELS (3) into the LEFT END (B) and å UPRIGHT (D). Fasten the LEFT END (B) and UPRIGHT (D) to the LEFT å BOTTOM (E). Tighten four HIDDEN CAMS. NOTE: Be sure the WOOD DOWELS in the LEFT END and å...
- Page 8 Step 4 Fasten the RIGHT BOTTOM (F) to the UPRIGHT (D). Tighten two HIDDEN CAMS. å Insert one WOOD DOWEL (3) into the RIGHT END (A). å Fasten the RIGHT END (A) to the RIGHT BOTTOM (F). Tighten two HIDDEN CAMS. å...
- Page 9 Step 5 Insert three WOOD DOWELS (3) into the ENDS (A and B) å and UPRIGHT (D). Fasten the BASE (H) to the ENDS (A and B) and å UPRIGHT (D). Tighten three HIDDEN CAMS. NOTE: Be sure the WOOD DOWELS in the ENDS and å...
- Page 10 Step 6 Insert three WOOD DOWELS (3) into the center holes å in the TOP (C). Fasten the TOP (C) to the ENDS (A and B) and å UPRIGHT (D). Tighten six HIDDEN CAMS. NOTE: Be sure the WOOD DOWELS in the TOP å...
- Page 11 Step 7 Carefully turn your unit onto its front edges. å Position the BACKS (I and J) over your unit. å NOTE: Be sure the holes in the BACKS line up over the å UPRIGHT (D) and BOTTOMS (E and F). Fasten the BACKS (I and J) to the ENDS (A and B), å...
- Page 12 Step 8 Carefully stand your unit upright. å Push twenty-four METAL PINS (5) into the desired holes in the ENDS (A and B) and UPRIGHT (D). å Set the ADJUSTABLE SHELVES (G) onto the METAL PINS (5). å Peel a CAM COVER from the CAM COVER CARD (6) and stick one onto each visible HIDDEN CAM. å...
- Page 13 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following safety information. Death or serious injury may occur when children climb on furniture. A remote control, toys or other items placed on the furniture may encourage a child to climb on the furniture which could cause it to tip-over and result in serious injury or death.
