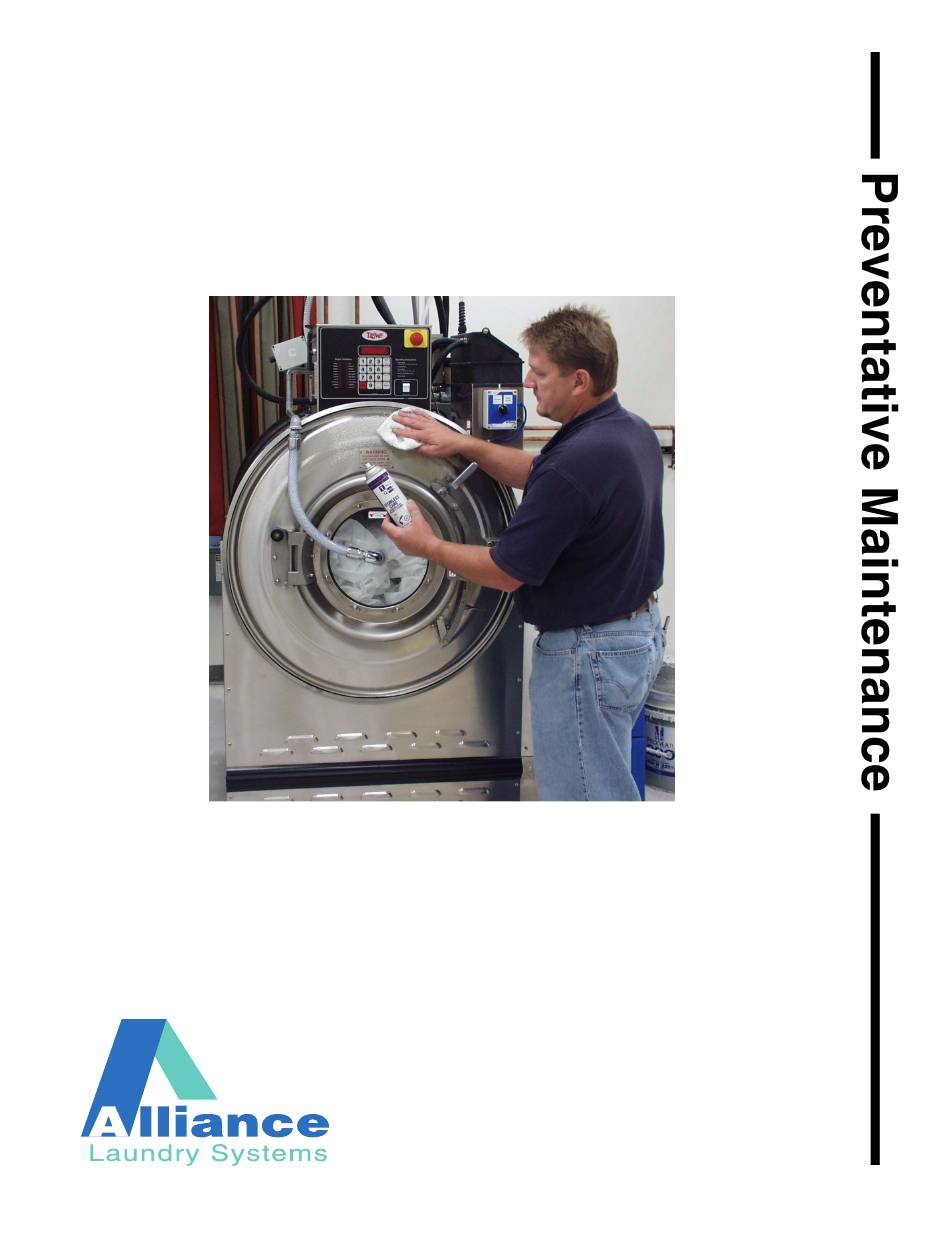

- Page 1 https://appliancetechmanuals.com Pocket Hardmount Part No. 7-04-49 www.comlaundry.com November 2005...
- Page 2 https://appliancetechmanuals.com...
-
Page 3: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49... -
Page 4: Daily
4. Check the door interlock before starting operation: a. Attempt to start the machine with the door open. The machine should not start with the door open. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49... - Page 5 5. If the washer-extractor is equipped with a premium Wet Clean module, inspect the water recirculation pipe connections to make sure that they are tight and do not leak. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49...
-
Page 6: End Of The Day
Wash the filter with warm water and allow it to air dry. The filter may also be vacuumed clean. 2. Clean the door gasket of residual detergent and all foreign matter. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49... - Page 7 6. If the washer-extractor is equipped with a premium Wet Clean module, clean the water recirculation filter, which is located inside of the canister. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49...
-
Page 8: Weekly
Verify that the drain valve is operating and that the drain system is free from obstruction. If water does not leak out during the pre-wash segment, the drain valve is closed and functioning properly. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49... -
Page 9: Monthly
UWPV belt tension should be between 70 and 90 pounds (± 5 pounds). Set the initial tension toward the high end of this range. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49... - Page 10 3. Remove the back panel and check the overflow hose and drain hose for leaks. 4. Unlock the hinged lid and check the supply dispenser hoses and hose connections. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49...
- Page 11 Clean the filter screen with soapy water and reinstall it. Replace the filter screen if it is worn or damaged. 6. Tighten the motor mounting bolts if necessary. Motor Pulley Motor Spring © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49...
- Page 12 9. Remove any moisture or dust from all electrical components with compressed air. 10.Remove the chemical supply components and check for residual chemicals. Clean them as needed and re-install them. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49...
-
Page 13: Quarterly
1. If necessary, tighten the door hinges and fasteners. 2. If necessary, tighten the anchor bolts. 3. Verify that the drain motor shield is in place and is secure. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49... - Page 14 Turn off the steam supply and allow time for the valve to cool. b. Unscrew the cap. c. Remove the element and clean it. Element d. Replace the element and the cap. Valve © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49...
-
Page 15: Care Of Stainless Steel
Tip: Paint all carbon steel parts with a heavy protective coating. Stainless steel fasteners should be used whenever possible. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49... - Page 16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49...
-
Page 17: Daily Preventative Maintenance Checklist
Clean module, inspect the water recirculation pipe connections to make sure that they are tight and do not leak. Laminate this checklist so that it can be re-used. (continued) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49... -
Page 18: End Of The Day
6. If the washer-extractor is equipped with a premium Wet Clean module, clean the water recirculation filter, which is located inside of the canister. Laminate this checklist so that it can be re-used. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49... -
Page 19: Weekly Preventative Maintenance Checklist
If water does not leak out during the pre-wash segment, the drain is closed and functioning properly. Laminate this checklist so that it can be re-used. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49... -
Page 20: Monthly Preventative Maintenance Checklist
10.Remove the chemical supply components an check for residual chemicals. Clean them as needed and re-install them. Laminate this checklist so that it can be re-used. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49... -
Page 21: Quarterly Preventative Maintenance Checklist
Unscrew the cap. c. Remove the element and clean it. d. Replace the element and the cap. Laminate this checklist so that it can be re-used. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7-04-49... - Page 22 https://appliancetechmanuals.com...
