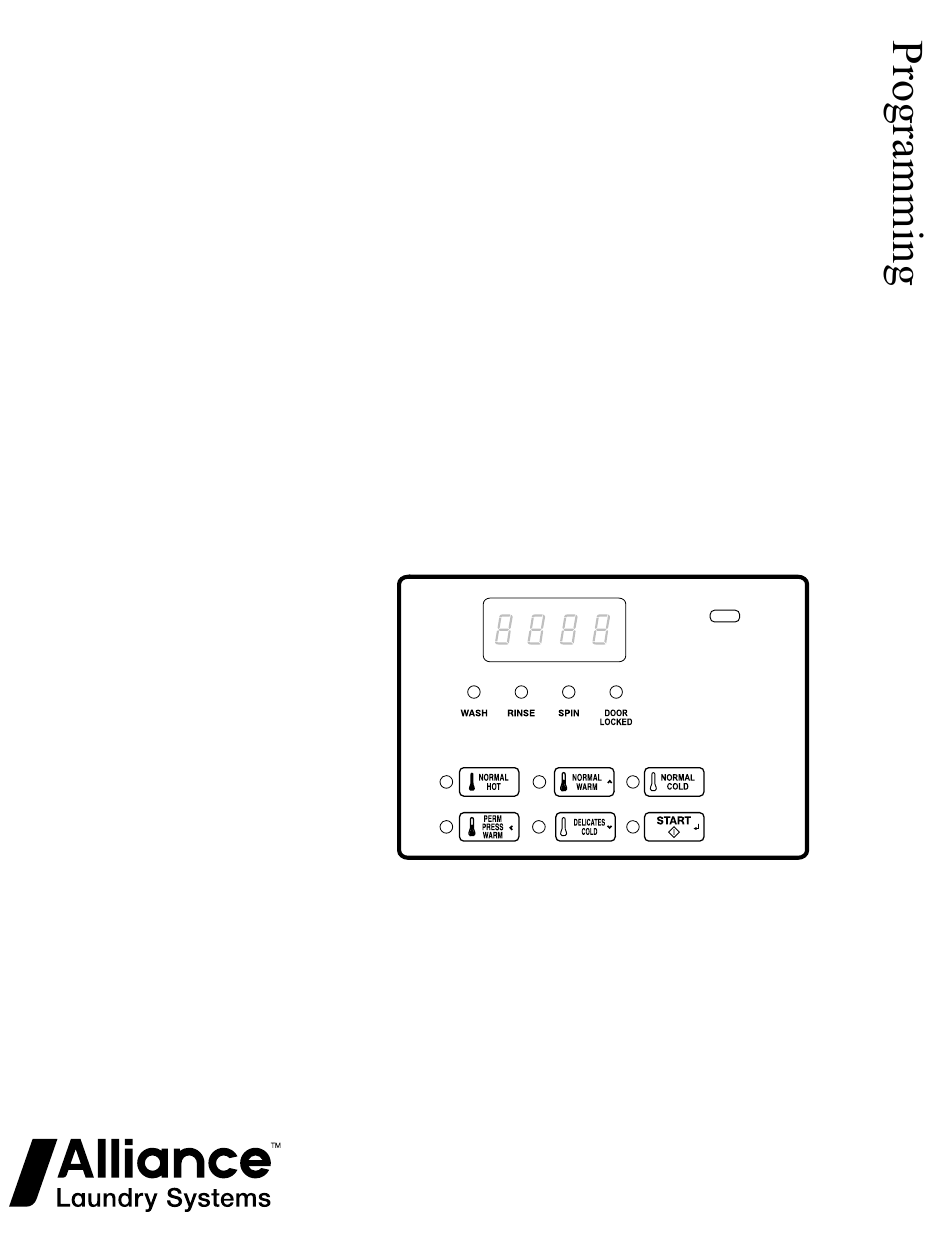

Frontload Washer
Refer to Page 7 for Model Identification
FLW88R_SVG
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 805407R6
www.alliancelaundry.com
November 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alliance Laundry Systems BFNBCASG113TN01
Summary of Contents for Alliance Laundry Systems BFNBCASG113TN01
- Page 1 Frontload Washer Refer to Page 7 for Model Identification FLW88R_SVG Original Instructions Keep These Instructions for Future Reference. CAUTION: Read the instructions before using the machine. (If this machine changes ownership, this manual must accompany machine.) Part No. 805407R6 www.alliancelaundry.com November 2018...
- Page 3 Read all instructions before using unit. Hazardous voltage inside. Disconnect power before serv- icing. This product uses FreeRTOS V7.2.0 (www.freertos.org). © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
-
Page 4: Table Of Contents
Rapid Advance Feature................. 14 © Copyright 2018, Alliance Laundry Systems LLC All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. - Page 5 Manual Reset..................27 How to Enter Manual Reset................27 Testing Machine and Electronic Control Functions....... 28 How to Enter Testing Feature................. 28 How to Start Tests..................28 © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
- Page 6 How to Exit Rapid Advance Feature............... 47 Power Fail Recovery................48 Communications Mode................. 49 Card Reader Communications - Card Models Only.......... 49 Default Cycle Time ................50 © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
-
Page 7: Model Identification
HTEBXASP295CW01 SFNBXASP113TQ01 STGBXASP113FW28 BTLBXASG304NW36 HTEBXASP304NW22 SFNBXASP113TW01 STGBXASP113TW01 BTLBXASP304NW22 HTEBXASP543DW01 SFNBXASP115TW01 STGBXASP114FW01 HFNBCASG113TN01 HTEBXASP544DW01 SFNBXASP123DW01 STGBXASP115TW01 HFNBCASG113TQ01 HTEBYASP283CW01 SFNBXASP303AW01 STGBXASP123DW01 HFNBCASG113TW01 HTEBYASP285CW01 SFNBXASP303AW12 STGBXASP124DW01 Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... - Page 8 SFNBYASP113TW01 STGBXASP543DW01 HFNBDASG113CW01 HTGBXASP124DW01 SFNBYASP115TW01 STGBXASP544DW01 HFNBDASG115CW01 HTGBXASP543DW01 SFNBYRSP113TW01 STGBYASP113TW01 HFNBDASP113CW01 HTGBXASP544DW01 SFNBYRSP115TW01 STGBYASP115TW01 HFNBDASP115CW01 HTGBYASP093CW01 STEBCASP173TQ01 TTEBXASP303NW22 HFNBDRSP113CW01 HTGBYASP095CW01 STEBCASP173TW01 TTEBXASP304NW22 HFNBDRSP115CW01 HTGBYASP113TW01 STEBCASP175TW01 © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
-
Page 9: Preliminary Information
On drain pump models, if the wash basket is full of water, the control will lock the door and pump out the water. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 10: Control Identification
(NORMAL COLD). FLW88R_SVG1 1. LED Light 2. SELECT CYCLE pads 3. Four 7-Segment Digits 4. Display 5. LED Status Lights 6. START pad Figure 1 © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 11: Display Identification
During diagnostic testing or manual programming of the control, these digits will display descriptive codes and values. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 12: Washer Operation
Any coin entered after the first fill completes will be added to the total coin counter, but the user will not be able to change cycles. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 13: Closing Washer Door
If the vend price is not satisfied within 1 minute, the washer control will go back to the previously set cycle. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 14: Special Features
For detailed information on running diagnostic tests, refer to Test- For details on enabling OPL Mode, refer to Programming Con- ing Machine and Electronic Control Functions. trol. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 15: Opening The Service Door
“white/black” and “red/blue” wires. This will allow the user to access various programming options, diagnostics, and audit capa- bilities. Refer to Figure 2 . © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 16: Opl Models
The control panel’s tabs are located 8.71 inches from the edge of the left and right side panels. W521I_SVG FLW6R_SVG1 1. Service Door 2. Control Panel Figure 2 © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... - Page 17 Opening the Service Door FLW2384N_SVG SWD990N_SVG Figure 3 © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
-
Page 18: Entering The Manual Mode
6. Press the NORMAL WARM (∧) or the DELICATES COLD (∨) keypad to scroll through the options until the desired op- tion appears in the display. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... - Page 19 "rSEt" Manual Reset Manual Reset Mode. "diAg" Press the START keypad to Diagnostic enter Diagnostic Tests. Refer to Tests Diagnostic Tests flowchart. FLW145R_SVG Figure 4 © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
-
Page 20: Programming Control
Number of Balance At- Through Serial No. bALA tempts with No Loss of 1506011826 = 4 Time Starting Serial No. 1506011827 = 7 OPL Mode on/oFF © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 21: Vend Price Ats
Suds Removal Routine Extra Time "SUd1" Suds Removal "bALA" Routine Display Balance Attempts "SUd2" "oPL" Suds Removal Routines OPL Mode Allowed Per Cycle FLW119R_SVG Figure 5 © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 22: Coin 1 Value Den1
5. Press the NORMAL WARM (∧) or the DELICATES COLD and advance to the next digit. (∨) keypad to increase or decrease the value of the fifth digit. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 23: Start Pulse Value Plse
The new value is saved and the next op- CyCL appears in the display. tion will appear in the display. 4. When CyCL appears in the display, press the START (enter) keypad. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 24: Audio Signal Aud
4 inch level is reached. How to Program the Audio Signal Table 2 continues... 1. Control must be in Manual Mode. Refer to How to Enter the Manual Mode. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 25: Water Level Flvl
This option allows the owner to program the machine's number of balance attempts with no loss of time. If the machine needs to re- balance for any reason, time will pause for additional balance at- © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 26: Collecting Audit Information
“0009” meaning nine. The total equals “10009” or 10,009. 3. Press the PERM PRESS WARM keypad. The display will re- turn to the audit option list. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 27: Manual Reset
4. Press the NORMAL WARM (∧) or the DELICATES COLD (∨) keypad to change the value to yes. 5. Press the START (enter) keypad to reset the control to the fac- tory default settings. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 28: Testing Machine And Electronic Control Functions
Coin Drop #2 Input Test d 11 C2 -- Vend Header Present Status Test CH oP (Open) or CH CL (Closed) d 12 Table 4 continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... - Page 29 Machine Configuration #3 Display Test d 31 C --- Machine Configuration #4 Display Test d 32 d --- Machine Configuration #5 Display Test d 33 E --- Table 4 © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
-
Page 30: Diagnostic Test Descriptions
Machine Configuration #4 Door Lock Switch Display Test Input Test "d 33" Machine Configuration #5 "d 17" Show Fill Display Test Time Test FLW107R_SVG Figure 6 © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 31: Control Software Version Number Test D 1
To enter, press the START (enter) keypad. The display will show CH oP when the wiring connection is open and CH CL when the connection is closed. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 32: Start Pulse Test D 13
To exit the Show Fill Time Test, press the PERM PRESS WARM minutes. The door will unlock and the control will diplay PUrg. (<) keypad. The control will return to the Testing Mode. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 33: Water Leak Detection Test D 25
To exit the Water Level Test, press the PERM PRESS WARM (<) keypad. The control will return to the Testing Mode. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... - Page 34 Board "A" Vend Con- Configura- Jumper Header Header nection Coin Drop Coin Drop tion Value Present Present Present Present #2 Present #1 Present Table 5 continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
- Page 35 Board "A" Vend Con- Configura- Jumper Header Header nection Coin Drop Coin Drop tion Value Present Present Present Present #2 Present #1 Present Table 5 continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
-
Page 36: Configuration 2 Display Test D 30
Payment Sys- Dipswitch 2 Gravity Drain Heater Ena- tem Present 240 Volt Sup- Configuration (ON) bled (ON) (ON) Energy Cycle ply (ON) Value Table 6 continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 37: Configuration 5 Display Test D 33
Keypad Test and Pressure Sensor Test. Refer to the table be- panel or coin vault is open. low for all tests in the Factory Test. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 38: To Exit Factory Test
XX is the number of the keypad being PAXX pressed. You need to press all keypads to advance to the next step. Table 7 continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... - Page 39 The control will not advance to next step until drum is empty. RPM speed displayed Spin Test Machine will attempt to spin up to 1200 RPMs. XXXX Table 7 continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
- Page 40 Cycling power to the machine is the only way to resume normal operation and the control will stay in this state indefinitely until that time. Table 7 © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
-
Page 41: Error Codes
Door Lock Fatal Door is unlocked during a running cycle. To clear this error, cycle power to the ma- E dL Error chine. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... - Page 42 Machine type does not match between the Machine ID Control and Front End Control En 32 Mis-Match (frontload washer vs. dryer). Replace Machine ID Control and/or front end control with one meant for current machine type. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
- Page 43 START keypad 3 times in a period of 5 seconds or by cycling the power to the machine. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
- Page 44 E d 13 gerous Error error. Check for damage in the power supply harness. Replace power supply harness or drive board if error persists. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
- Page 45 Pin HW On/Off Fail Softener Valve Pin Hardware failure. Unpower to clear error. Replace drive board if error persists. E d 50 HW On/Off Fail Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
- Page 46 E d 63 ature Short Error Fatal IPM Temper- Hardware failure. Unpower to clear error. Replace drive board if error persists. E d 64 ature Open Error © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
-
Page 47: Rapid Advance Feature
5. Continue pressing the START (enter) keypad until the cycle is completed. How to Exit Rapid Advance Feature Advance through the cycle until reaching the Ready Mode. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 48: Power Fail Recovery
START (enter) keypad to restart. If the power failure lasted longer than 5 seconds, the control will require the user to press the START (enter) keypad to restart. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 49: Communications Mode
The washer control can be programmed for a limited number of options and have its data read without using the keypad. © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... -
Page 50: Default Cycle Time
Normal & Perm Press = 4:20 Delicate = 4:05 Rinse 3 (Disabled) Fill 2:00 Agitate 0:35 Extract Normal & Perm Press = 4:20 Delicate = 4:05 Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT... - Page 51 Normal = 9:50 Perm Press = 8:20 Delicate = 7:20 Shakeout Agitate 0:40 Total Time Normal = 30:00 Perm Press = 28:00 Delicate = 26:00 © Copyright, Alliance Laundry Systems LLC - Part No. 805407R6 DO NOT COPY or TRANSMIT...
