Alliance Laundry Systems SWD455C SVG Installation & Operation Manual

Alliance Laundry Systems SWD455C SVG Installation & Operation Manual

Stacked washer/dryers, electric and gas
Hide thumbs
Table of Contents

Advertisement

Quick Links

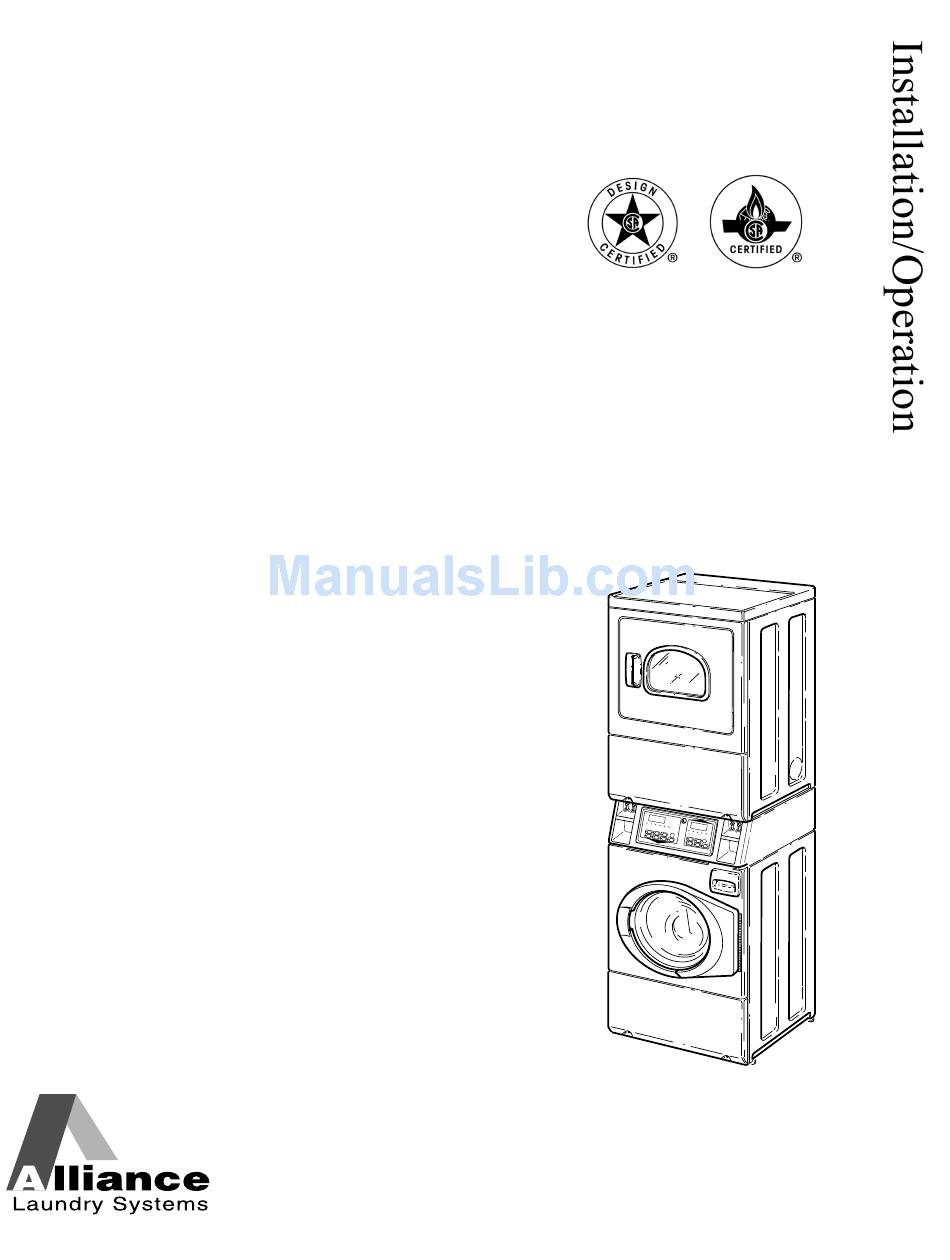

Stacked Washer/Dryers
Electric and Gas Models
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
SWD455C_SVG
Part No. 805419R3
www.alliancelaundry.com
August 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWD455C SVG and is the answer not in the manual?

Questions and answers

Related Manuals for Alliance Laundry Systems SWD455C SVG

Summary of Contents for Alliance Laundry Systems SWD455C SVG

  • Page 1 Stacked Washer/Dryers Electric and Gas Models Original Instructions Keep These Instructions for Future Reference. CAUTION: Read the instructions before using the machine. (If this machine changes ownership, this manual must accompany machine.) SWD455C_SVG Part No. 805419R3 www.alliancelaundry.com August 2017...
  • Page 3 Installation and service must be performed by a appliance. qualified installer, service agency or the gas sup- plier. W053 W052 This product uses FreeRTOS V7.2.0 (www.freertos.org). © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 4 A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance. • This appliance must not be installed in a bedroom or bath- room. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 5: Table Of Contents

    Operation..................... 37 © Copyright 2017, Alliance Laundry Systems LLC All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher.
  • Page 6 Care of Your Dryer..................42 Reinstallation of Shipping Materials............... 43 Motor Overload Protector................44 For Energy Conservation................44 Troubleshooting..................45 Contact Information................49 Installer Checklist.................50 © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 7: Safety Information

    This is a safety rule for all appliances. • Cleaning and user maintenance shall not be made by children without supervision. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 8: Important Safety Instructions

    Cleaning and user maintenance shall not be made by children without supervision. • Children less than three years should be kept away unless continuously supervised. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 9 Failure to install, maintain, and/or operate this machine ac- cording to the manufacturer’s instructions may result in con- ditions which can produce bodily injury and/or property dam- age. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 10: Dimensions

    NOTE: Exhaust openings are 4 inch [102 mm] metal * With leveling legs turned into base. ducting. ** For ADA compliance turn legs out from base 0.5 inches. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 11 NOTE: Exhaust openings are 4 inch [102 mm] metal * With leveling legs turned into base. ducting. ** For ADA compliance turn legs out from base 0.5 inches. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 12 4.2 in. [107 mm] *4.1 in. [104 mm] *46.62 in. [1184 mm] *78.17 in. [1986 mm] 2.04 in. [52 mm] 27.73 in. [704 mm] Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 13 For maximum drying per- formance, we recommend that more clearance be al- lowed around the dryer than the clearances that are listed throughout this manual. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 14: Installation

    NOTE: This appliance is suitable for use in countries stall the washer on carpeting, soft tile or other weakly having a warm, damp climate. supported structures. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 15: Connect Fill Hoses

    This will release any accumulat- ed hydrogen gas. The gas is flammable. Do not smoke or use an open flame during this time. W029 © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 16: Water Supply Requirements

    5. Turn water on and check for leaks. cets. Refer to Figure 7 . © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 17: Non-Gravity Drain Models - Connect Drain Hose To Drain Receptacle

    Refer to Figure 8 . This will prevent the drain hose from dislodging from drain receptacle during use. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 18: Gas Dryers - Connect Gas Supply Pipe

    Refer to Table 1 . Natural Gas Altitude Adjustments Altitude Orifice Size inches Part feet [m] [mm] Number 2,000 [610] 0.0960 D503776 [2.44] Table 1  continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 19 For proper operation at altitudes above 3500 feet [1070 m] the L.P. gas valve spud orifice size must be reduced to ensure com- plete combustion. Refer to Table 2 . © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 20: Electric Dryer Only - Connect Electrical Plug

    © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 21 6. Strain Relief (Not supplied with dryer) 2. Power Cord 7. Ground Screw 3. Stain Relief Nut 8. “L1” Terminal 4. Strain Relief Figure 12 Figure 11 © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 22: Connecting Power Cord With Three-Wire Plug

    4. Neutral Terminal 5. “L2” Terminal 6. Black Wire 7. White Wire (Neutral) 8. Strain Relief (Not supplied with dryer) 9. Red Wire Figure 13 © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 23 15. Direct Connection 16. Power Cord Connection Figure 14 1. Disconnect power to dryer. 2. Remove access cover from rear of dryer. D695I_SVG Figure 15 © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 24: Connecting Power Cord With Four-Wire Plug

    Connecting Power Cord with Four-Wire Plug NOTE: Four-wire cord is required for new branch-cir- cuit installations, mobile homes or where codes do not permit grounding through neutral. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 25 10. Reinstall access cover and screw. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 26: Connect Dryer Exhaust System

    Ductwork that runs through unheated areas must be insulated to help reduce condensation and lint build-up on pipe walls. • Install backdraft dampers in multi-dryer installations. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 27: Exhaust Direction

    Maximum length of 4 in. [102 mm] diameter rigid metal duct. 65 feet [19.8 m] 55 feet [16.8 m] 55 feet [16.8 m] 47 feet [14.3 m] Table 4  continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 28: Multi-Dryer Installation Exhaust Requirements

    2. Clean Out Cover (Must be provided). Inspect monthly. 3. Weather Hood or Sweep Elbow (No cap or screen) 4. 24 in. [610 mm] Minimum Clearance to Roof/Ground Figure 24 © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 29 12 inches [305 mm] 13 inches [326 mm] 14 inches [356 mm] 15 inches [381 mm] 15 inches [381 mm] 16 inches [406 mm] Table 5 © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 30: Position And Level The Unit

    0 in. [0 mm] Right Dryer Side 1 in. [25 mm] Dryer Top 6 in. [152 mm] Dryer Rear 4 in. [102 mm] Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 31: Wipe Out Inside Of Washer And Dryer Drums

    7. Remove rubber feet from accessories bag and place on all four leveling legs. 8. Verify that unit doesn’t rock. SWD1012N_SVG Figure 28 © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 32: Plug In The Washer And Dryer

    3-prong earth/ground plug. Refer to serial plate for specific electrical requirements. NOTE: The wiring diagram is located in the control cab- inet. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 33: Washer

    110/120 Volts AC (alternating current) 15 Amps. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 34 © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 35: Check Installation

    When washer spins at high speed, verify that it is stable. e. If it is not, after cycle is complete, refer to Position and Level the Washer to readjust leveling legs. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 36 3. 1/8 in. [3.1 mm] Pipe Plug (For checking manifold pressure) 4. Shut-off Valve Open Position 5. Shut-off Valve Closed Position 6. Shut-off Valve Handle Figure 33 © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 37: Operation

    NOTE: Different fabrics will have different densities and loads must be adjusted accordingly to meet ma- chine loading specifications shown. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 38: Determine Proper Controls

    MAL/COLD, PERM PRESS/WARM or DELICATES/COLD cy- cle. Light indicates selection. NOTE: Changes can be made to Fabric Selector setting up until the first fill is complete. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 39: Start Washer

    Clean Lint Filter is complete. Clean lint filter before each use. SPIN SPIN is lit for all spin cycles. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 40: Load Laundry

    To Insert Card SWD1032N_SVG Insert card into opening. Figure 44 Determine Proper Controls The direction of the arrow indicates which control is for which unit. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 41: Start Dryer

    (cool down cycle) to ensure that items in dryer are left at a temperature that ensures that the items will not be damaged. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 42: Maintenance

    • The outside perimeter of the door glass where the seal con- W132 tacts the glass • The front surface of the door seal lip © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 43: Reinstallation Of Shipping Materials

    Keep dryer area clear and free from combustible materials, gaso- line and other flammable vapors and liquids. Do not obstruct the flow of combustion and ventilation air. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 44: Motor Overload Protector

    Use the correct temperature FABRIC SELECTOR setting for the type of fabric being dried. • Locate your dryer so the exhaust duct is as short and straight as possible. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 45: Troubleshooting

    Refer to the Installation instructions to make sure that the drain hose has been proper- ly installed. • Foreign object trap in pump may be clogged. Clean the trap. Refer to Maintenance section. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 46 “H” on the valve bracket) and cold faucet is connected to cold mixing valve (indicated with “C” on the valve bracket). • Make sure laundry room water heater is adjusted properly. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 47 • Check load being dried. Heavy items dried with lightweight items will not dry as quickly as the rest of the load. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
  • Page 48 • Ventilate room before drying clothes. © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 49: Contact Information

    +1 (920) 748-3950 for the name Table continues... and address of the nearest authorized parts distributor. DRY2527N_SVG 1. Serial Plate Figure 53 © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...

  • Page 50: Installer Checklist

    Start and Run Dryer in Heat Setting to Verify Dryer is nect Electrical Cord Heating. CHECK CHECK D679I_SVG1 Refer to the manual for more detailed information © Copyright, Alliance Laundry Systems LLC - Part No. 805419R3 DO NOT COPY or TRANSMIT...
