installation guide

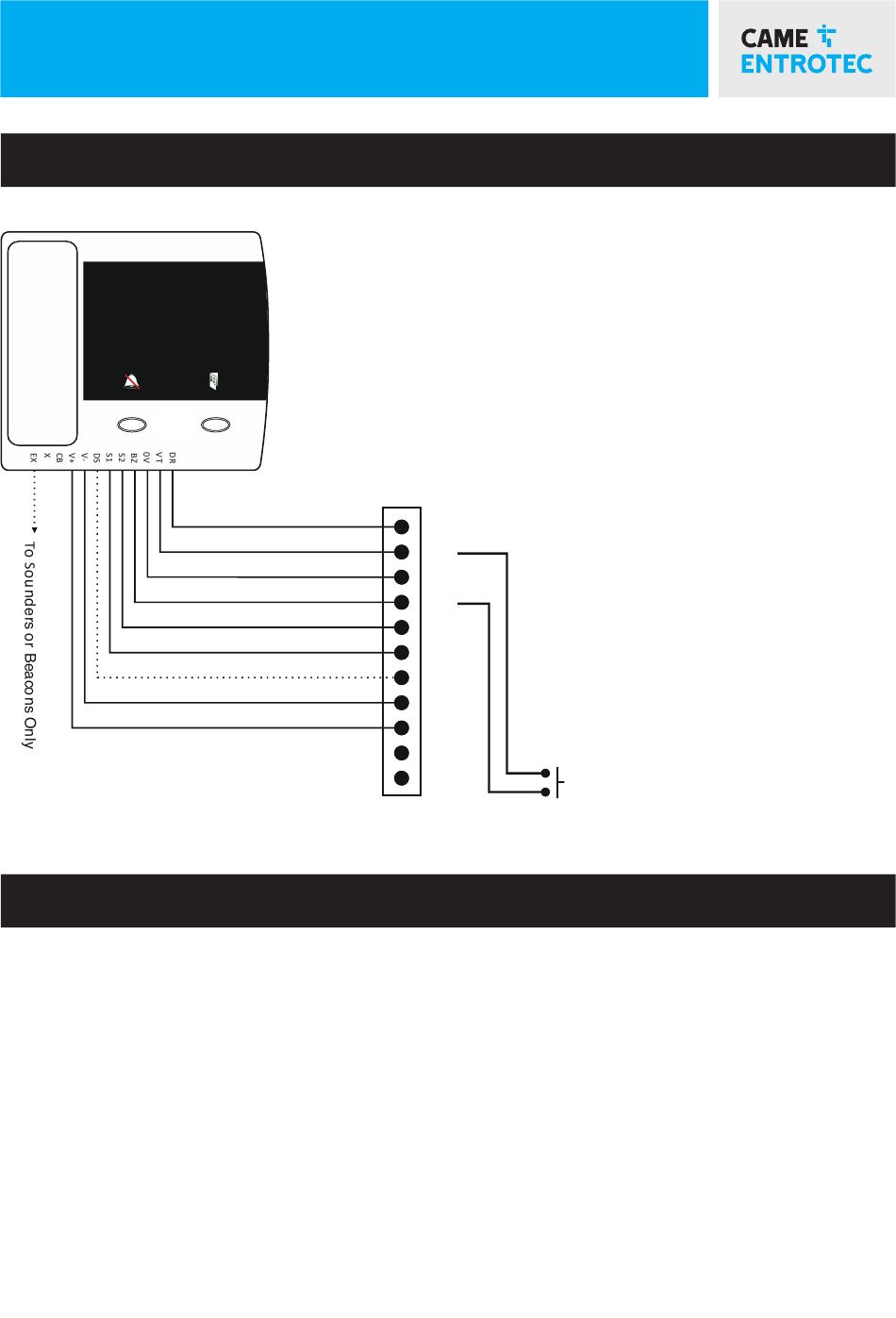

wiring diagram

ENTROVIEW
PRIVACY
* NOTE: If DS is required the internal ringer can be enabled and the BZ connection is not required, freeing up the Orange wire.

cable specification

Cat 5e / Cat 6 / CW1308 6 Pair Minimum.
This does not allow for redundant cables. If this is a requirement then the installer must allow for this during
installation.
10 Pair CW1308 recommended for cable runs exceeding 70 metres.
Any unused cores to be tied to system 0v.
PLUS
CB DOOR OPEN
Suggested Colour Code
Cat 5 / Cat 6
White/Blue
White/Orange
*Orange
White/Green
Green
White/Brown
Brown
DR
Blue
VT
0V
BZ*
S2
S1
DS
V-
V+
CB*
X*
Suggested Colour Code
DR - White/Blue+Blue/White
VT - White/Orange+Orange/White
0V - White/Green+White/Brown
BZ - White/Grey
S2 - Green/White
S1 - Brown/White
DS - Grey/White
V- - Red/Blue
V+ - Blue/Red
Optional
Door Bell
6 Pair CW1308
