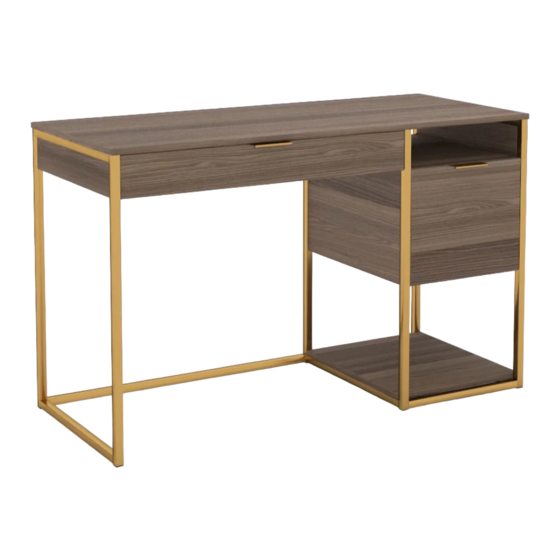

Teknik Lux Desk 5426429 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
www.teknikoffice.co.uk
Teknik
Sit and surf.
Lux Desk
Model 5426429

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lux Desk 5426429 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teknik Lux Desk 5426429

Summary of Contents for Teknik Lux Desk 5426429

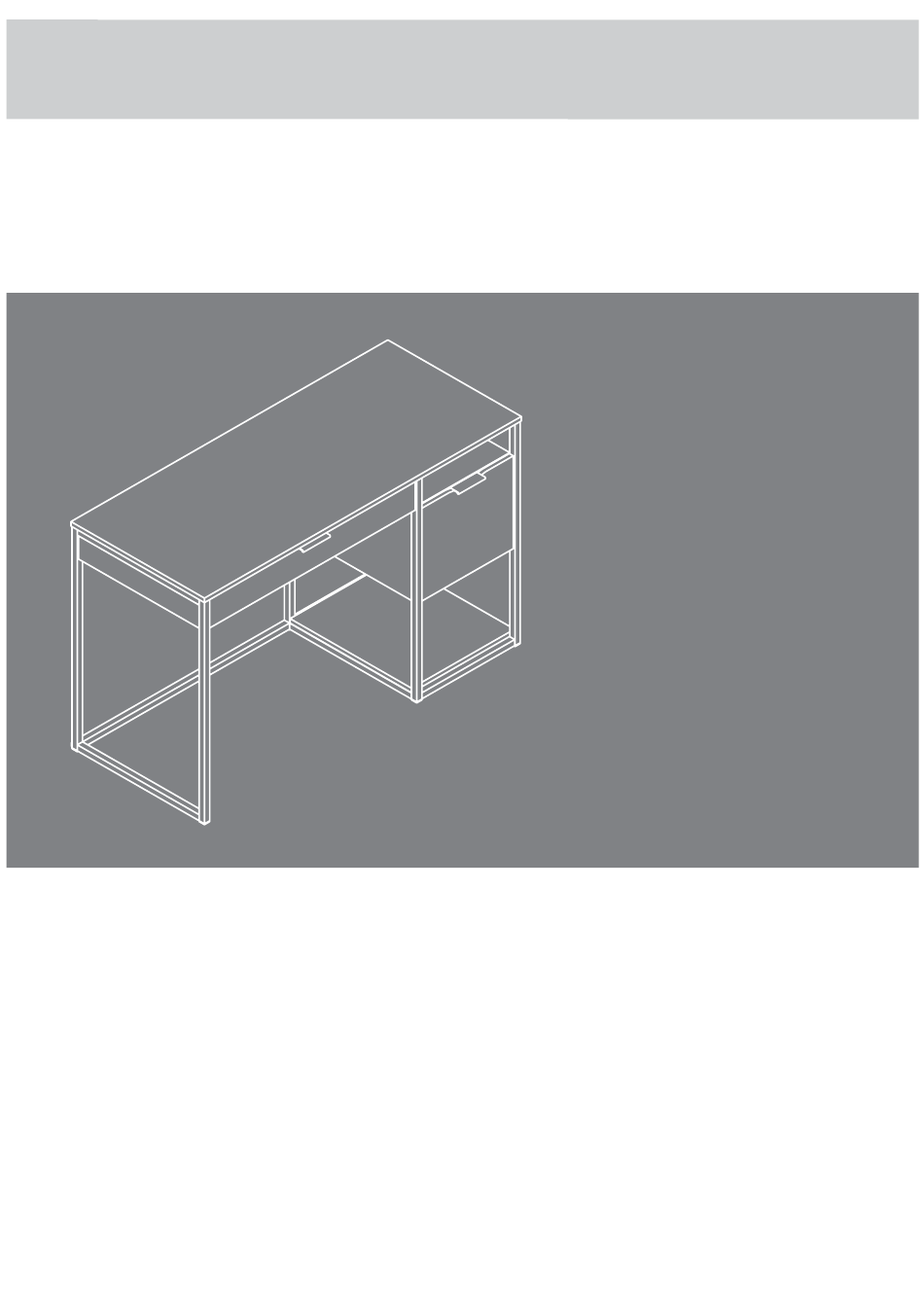

  • Page 1 Teknik Sit and surf. Lux Desk Model 5426429...
  • Page 2 Table of Contents Assembly Tools Required Part Identification No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identification Assembly Steps 5-26 Page 2...
  • Page 3 Now you know Part Identification our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identification to help identify similar parts. LEFT FRAME (1) RIGHT BACK (1) FILE DRAWER FRONT (1)

  • Page 4: Table Of Contents

    Hardware Identification å Screws are shown actual size. You may receive extra hardware with your unit. CAM SCREW - 12 HIDDEN CAM - 12 1-3/16" HEX HEAD SCREW - 6 METAL PIN - 6 1-3/8" HEX HEAD SCREW - 6 1/2"...
  • Page 5 Step 1 å Assemble your unit on a carpeted floor or on the empty carton to avoid scratching your unit or the floor. å Turn twelve CAM SCREWS (1) into the TOP (D), DRAWER FRONT (N), and FILE DRAWER FRONT (T). (12 used) Page 5...
  • Page 6 Step 2 å Push twelve HIDDEN CAMS (2) into the LEFT BACK (L), DRAWER SIDES (O and P), DRAWER BRACE (S), and FILE DRAWER SIDES (U and V). Arrow (12 used) Arrow Hole The arrow in the HIDDEN CAM must point toward the hole in the edge of the board.

  • Page 7: 1-3/16" Flat Head Screw

    Step 3 å NOTE: Position the parts exactly as shown. å Fasten the RIGHT EXTENSION RAIL and SLIDE (16) to the EXTENSION BLOCK (M) and UPRIGHT (F). Use two 3/4" FLAT HEAD SCREWS (10) through the RIGHT EXTENSION RAIL and SLIDE, through the EXTENSION BLOCK, and into the UPRIGHT.
  • Page 8 Step 4 å NOTE: Position the parts exactly as shown. å Fasten the LEFT EXTENSION RAIL and SLIDE (15) to the LEFT Some assembly END (E). Use two GOLD 1/2" FLAT HEAD SCREWS (9). (and snacks) required. å NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the enlarged diagram.
  • Page 9 Step 5 å Flip the UPRIGHT (F) over. å Separate the WIDE EXTENSION SLIDES (18) from the WIDE EXTENSION RAILS (17) as shown in the upper diagram below. Be prepared, the parts are greasy. å Fasten the WIDE EXTENSION RAILS (17) to the UPRIGHT (F) and RIGHT END (G). Use four GOLD 1/2" FLAT HEAD SCREWS (9).

  • Page 10: 7/16" Pan Head Screw

    Step 6 å Fasten eight METAL BRACKETS (11) to the UPRIGHT (F) and RIGHT END (G) exactly as shown. Use eight 7/16" PAN HEAD SCREWS (8). 7/16" PAN HEAD SCREW (8 used in this step) Finished edge Finished edge Page 10...
  • Page 11 Step 7 å Turn six METAL PINS (5) into the FRAMES (A, B, and C). Through holes Rubber feet Through holes Rubber feet Through holes Rubber feet Page 11...

  • Page 12: L-Wrench

    Step 8 å Fasten the FRAMES (A, B, and C) to the TOP (D). Tighten six 1-3/16" HEX HEAD SCREWS (3) using the L-WRENCH (19). å NOTE: You should start each SCREW a few turns before completely tightening any of them. The METAL PINS must be here.
  • Page 13 Step 9 å Place the LEFT END (E), UPRIGHT (F), and RIGHT END (G) onto the METAL PINS in the FRAMES (A, B, and C). å Fasten the LEFT END (E), UPRIGHT (F), and RIGHT END (G) to the FRAMES (A, B, and C). Tighten six 1-3/8" HEX HEAD SCREWS (4) using the L-WRENCH (19).
  • Page 14 Step 10 å Fasten the LEFT BACK (L) to the TOP (D). Tighten three HIDDEN CAMS. Finished edge I D D u t H i t h o f a c S u r Page 14...
  • Page 15 Step 11 å Fasten the SHELF (H) to the UPRIGHT (F) and RIGHT END (G). Use four 7/16" PAN HEAD SCREWS (8) through the METAL BRACKETS (11). Unfinished edge For support, place packing foam and magazines here. 7/16" PAN HEAD SCREW (4 used in this step) Page 15...
  • Page 16 Step 12 å Rest the SHELF (H) on the METAL BRACKETS (11) in the UPRIGHT (F) and RIGHT END (G). å Fasten the SHELF (H) to the UPRIGHT (F) and RIGHT END (G). Use four 7/16" PAN HEAD SCREWS (8) through the METAL BRACKETS (11).
  • Page 17 Step 13 å Fasten the RIGHT BACK (K) to the SHELVES (H). Use four 1-3/16" FLAT HEAD SCREWS (7). Don't worry. It isn't Rome. This can be built in a day. Finished edge Larger holes facing out Finished edge 1-3/16" FLAT HEAD SCREW (4 used in this step) Page 17...
  • Page 18 Step 14 å Fasten the SHORT BRACES (Z) to the FRAMES (B and C). Use four 7/16" PAN HEAD SCREWS (8) through the brackets and into the FRAMES. These brackets must be facing down. 7/16" PAN HEAD SCREW (4 used in this step) Page 18...
  • Page 19 Step 15 å Fasten the BOTTOM (J) to the SHORT BRACES (Z). Use four 7/16" PAN HEAD SCREWS (8) through the brackets and into the BOTTOM. 7/16" PAN HEAD SCREW (4 used in this step) For support, place packing foam and magazines here.

  • Page 20: 1/2" Hex Head Screw

    Step 16 å Fasten the LONG BRACE (Y) to the FRAMES (A and B). Tighten two 1/2" HEX HEAD SCREWS (6) using the L-WRENCH (19). å NOTE: You should start each SCREW a few turns before completely tightening either of them. Bracket 1/2"...

  • Page 21: Gold 1/2" Flat Head Screw

    Step 17 Be sure the DRAWER BOTTOM inserts into the 1-3/16" FLAT HEAD SCREW DRAWER BACK groove. (6 used in this step) Groove Groove HIDDEN CAM facing down å Fasten the DRAWER SIDES (O and P) to the DRAWER BACK (Q). Use four 1-3/16" FLAT HEAD SCREWS (7). å...
  • Page 22 Step 18 Be sure the FILE DRAWER 1-3/16" FLAT HEAD SCREW BOTTOM inserts into the (4 used in this step) FILE DRAWER BACK groove. Groove å å Fasten the FILE DRAWER SIDES (U and V) to the Slide the FILE DRAWER BOTTOM (X) into the FILE DRAWER BACK (W).
  • Page 23 Step 19 å Fasten the WIDE EXTENSION SLIDES (18) to the FILE DRAWER SIDES (U and V). Use four GOLD 1/2" FLAT HEAD SCREWS (9). å Press the FILE GLIDES (13 and 14) over the FILE DRAWER SIDES (U and V). The FILE GLIDES are necessary to hang files.
  • Page 24 Step 20 å Carefully stand your unit upright. å Pull out the SLIDE portion of the EXTENSION RAILS Hey! It's starting to look and SLIDES, and set the DRAWER on the brackets of like something! the SLIDES. å Fasten the DRAWER to the SLIDES. Use four GOLD 1/2"...
  • Page 25 Step 21 å To insert the FILE DRAWER into your unit, line up the EXTENSION SLIDES on the drawer with the EXTENSION RAILS on the unit and push the drawer into the unit until the drawer is fully inserted. The drawer will push in hard until it is all the way in, then it will slide in and out easier.
  • Page 26 Step 22 å NOTE: Please read the back pages of the instruction booklet for important safety information. å This completes assembly. Clean with a damp cloth. Wipe dry. Page 26...
  • Page 27 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded shelves or drawers. •...
