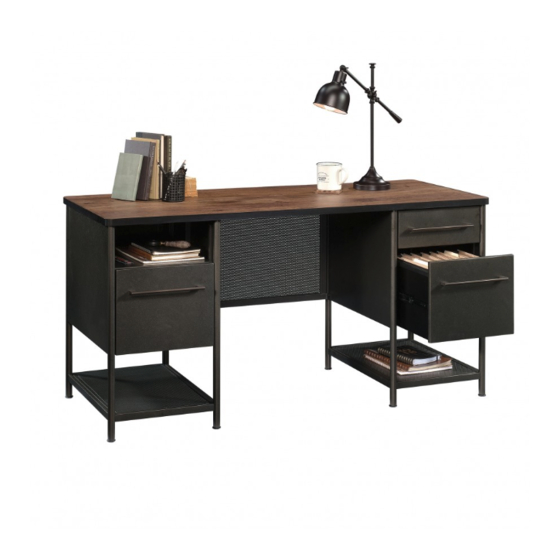

Teknik Boulevard Cafe Desk 5420701 Manual
  1. Manuals
  2. Brands
  3. Teknik Manuals
  4. Indoor Furnishing
  5. Boulevard Cafe Desk 5420701
  6. Manual

Teknik Boulevard Cafe Desk 5420701 Manual

Hide thumbs Also See for Boulevard Cafe Desk 5420701:

Advertisement

Quick Links

Download this manual
www.teknikoffice.co.uk
Boulevard Cafe Desk
Model 5420701
Teknik
Sit and surf.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Boulevard Cafe Desk 5420701 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teknik Boulevard Cafe Desk 5420701

Summary of Contents for Teknik Boulevard Cafe Desk 5420701

  • Page 1 Teknik Sit and surf. Boulevard Cafe Desk NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Model 5420701 PLEASE READ AND KEEP FOR FUTURE REFERENCE.
  • Page 2 Table of Contents Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-18 Français 19-21 Skip the power trip. Español 22-24 This time. Safety 25-26 Warranty Page 2...

  • Page 3: Part Identification

    Now you know Part Identifi cation our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. RIGHT END (1) BACK (2) SMALL DRAWER BACK (1)

  • Page 4: Hardware Identification

    Hardware Identifi cation å Screws are shown actual size. You may receive extra hardware with your unit. (EXTENSION SET SHOWN SEPARATED) FILE FILE EXTENSION RAIL - 6 EXTENSION SLIDE - 6 GLIDE - 4 HANGER - 4 ADJUSTABLE PULL - 3 L- WRENCH - 1 GLIDE - 8 BLACK 1-9/16"...
  • Page 5 Step 1 Assemble your unit on a carpeted fl oor or on the empty carton å to avoid scratching your unit or the fl oor. Remember: Righty tighty. Fasten the LEFT END (T) and one BACK (Y) to the TOP (W). Use å...
  • Page 6 Step 2 Fasten the LEFT UPRIGHT (V) to the TOP (W). Use two BLACK å 1-1/2" FLAT HEAD SCREWS (28). Fasten the BACK (Y) to the LEFT UPRIGHT (V). Use two BLACK å 3/8" MACHINE SCREWS (34). BLACK 3/8" MACHINE SCREW (2 used in this step) BLACK 1-1/2"...
  • Page 7 Step 3 Fasten the MODESTY PANEL (AA) to the LEFT UPRIGHT (V). å Use two BLACK 3/8" MACHINE SCREWS (34). BLACK 3/8" MACHINE SCREW (2 used in this step) Page 7...
  • Page 8 Step 4 Fasten the RIGHT UPRIGHT (U) to the TOP (W). Use two BLACK å 1-1/2" FLAT HEAD SCREWS (28). Fasten the MODESTY PANEL (AA) to the RIGHT UPRIGHT (U). Use å two BLACK 3/8" MACHINESCREWS (34). BLACK 3/8" MACHINE SCREW (2 used in this step) BLACK 1-1/2"...
  • Page 9 Step 5 Fasten the RIGHT END (S) and remaining BACK (Y) to the å TOP (W). Use four BLACK 1-1/2" FLAT HEAD SCREWS (28). Fasten the BACK (Y) to the RIGHT END (S) and RIGHT å UPRIGHT (U). Use four BLACK 3/8" MACHINE SCREWS (34). BLACK 3/8"...
  • Page 10 Step 6 Fasten the SHELF (Z) to the LEFT END (T) and LEFT å UPRIGHT (V). Use four BLACK 3/8" MACHINE SCREWS (34). Now might be a good time to refresh your drink. BLACK 3/8" MACHINE SCREW (4 used in this step) Page 10...
  • Page 11 Step 7 Fasten the BOTTOMS (X) to the ENDS (S and T) and å UPRIGHTS (U and V). Tighten eight BLACK 1" HEX HEAD SCREWS (29) using the L-WRENCH (26). BLACK 1" HEX HEAD SCREW (8 used in this step) Page 11...
  • Page 12 Step 8 IMPORTANT: Be sure to keep SCREWS (32) separate from SCREWS (33). Do not confuse these SCREWS. å Separate the EXTENSION SLIDES (21) from the EXTENSION RAILS (20) as shown in the upper diagram below. Be å prepared, the parts are greasy. Fasten the EXTENSION RAILS (20) to the ENDS (S and T) and UPRIGHTS (U and V).
  • Page 13 Step 9 Turn eight ADJUSTABLE GLIDES (25) into the bottoms of å the ENDS (S and T) and UPRIGHTS (U and V). Page 13...
  • Page 14 Step 10 Be sure the DRAWER BOTTOM inserts into the DRAWER SIDE groove. BLACK 1-9/16" FLAT HEAD SCREW (4 used in Section 1) Groove Fasten one SMALL DRAWER SIDE (DD) to the Slide one DRAWER BOTTOM (GG) into the grooves in å...
  • Page 15 Step 11 First, fasten one PULL (24) to the SMALL DRAWER FRONT (BB). Use two å BLACK 3/4" MACHINE SCREWS (31). If you're doing this to help a friend, don't Second, fasten the SMALL DRAWER FRONT (BB) to the SMALL å...
  • Page 16 Step 12 Be sure the DRAWER BOTTOM inserts into the DRAWER SIDE groove. BLACK 1-9/16" FLAT HEAD SCREW (8 used in Section 1) Groove Fasten one LARGE DRAWER SIDE (HH) to the Slide one DRAWER BOTTOM (GG) into the grooves in å...
  • Page 17 Step 13 First, fasten one PULL (24) to the LARGE DRAWER FRONT (CC). Use two BLACK 3/4" MACHINE SCREWS (31). å Second, fasten the LARGE DRAWER FRONT (CC) to the LARGE DRAWER BOX FRONT (KK). Tighten four BLACK å 7/8" HEX HEAD SCREWS (30) using the L-WRENCH (26). Fasten two EXTENSTION SLIDES (21) to the LARGE DRAWER SIDES (HH).
  • Page 18 Step 14 Carefully stand your unit upright. å To insert a drawer into your unit, line up the EXTENSION SLIDES on the drawer with the EXTENSION RAILS on the å unit and push the drawer into the unit until the drawer is fully inserted. The drawer will push in hard until it is all the way in, then it will slide in and out easier.
  • Page 19 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded shelves or drawers. •...
