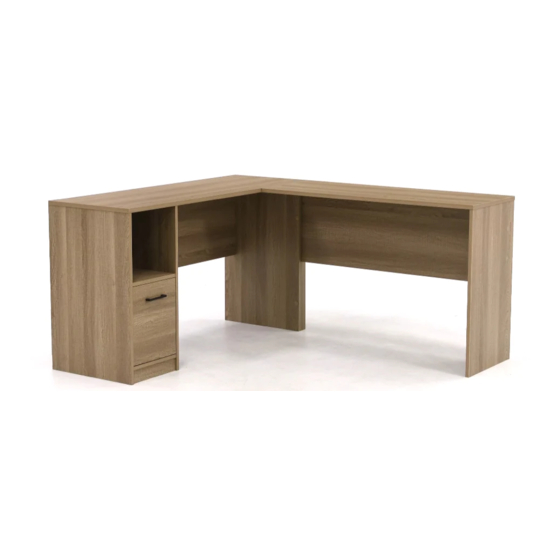

Teknik Essentials L-Shaped Desk 5425092 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
www.teknikoffice.co.uk
Teknik
For all your
newfangled gadgetry.
Essentials L-Shaped Desk
Model 5425092

Advertisement

loading
Need help?

Need help?

Do you have a question about the Essentials L-Shaped Desk 5425092 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teknik Essentials L-Shaped Desk 5425092

Summary of Contents for Teknik Essentials L-Shaped Desk 5425092

  • Page 1 Teknik For all your newfangled gadgetry. Essentials L-Shaped Desk Model 5425092...
  • Page 2 Table of Contents Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-26 Hammer Not actual size Français 27-31 Español 32-36 Skip the power trip. Safety 37-38 This time. Warranty Page 2...

  • Page 3: Part Identification

    Now you know Part Identifi cation our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. LARGE TOP (1) MOLDING (1) RIGHT DRAWER SIDE (1)

  • Page 4: Hardware Identification

    Hardware Identifi cation å Screws are shown actual size. You may receive extra hardware with your unit. (EXTENSION SET SHOWN SEPARATED) LARGE HIDDEN SMALL HIDDEN EXTENSION RAIL - 2 EXTENSION SLIDE - 2 CAM - 8 CAM - 4 CAM SCREW - 12 WOOD DOWEL - 30 PULL - 1 APPLIQUE CARD - 2...
  • Page 5 Step 1 Assemble your unit on a carpeted fl oor or on the empty å carton to avoid scratching your unit or the fl oor. Separate the EXTENSION SLIDES (2) from the å EXTENSION RAILS (1) as shown in diagram 1. Be prepared, the parts are greasy.
  • Page 6 Hardware Usage Guide HOW TO USE A HIDDEN CAM & CAM SCREW OR CAM DOWEL NOTE: Various CAM SCREWS or a CAM DOWEL may be used. Turn the CAM SCREW or gently tap the CAM DOWEL until the shoulder is against the surface of the part.
  • Page 7 Step 2 Push four LARGE HIDDEN CAMS (3) into the large holes å in the LEFT END (C) and LEFT UPRIGHT (D). Page 7...
  • Page 8 Step 3 Insert twelve WOOD DOWELS (6) into the å FIXED SHELVES (J) and SKIRT (K). Just think. The sooner you do this, the sooner you do something else. (12 used) Page 8...
  • Page 9 Step 4 Fasten the FIXED SHELVES (J) and SKIRT (K) to the å LEFT UPRIGHT (D). Use four GOLD 1-3/4" FLAT HEAD SCREWS (14). NOTE: Be sure the WOOD DOWELS in the SHELVES and å SKIRT insert into the UPRIGHT. GOLD 1- 3/4"...
  • Page 10 Step 5 Fasten the LEFT END (C) to the FIXED SHELVES (J) å and SKIRT (K). Use four GOLD 1-3/4" FLAT HEAD SCREWS (14). NOTE: Be sure the WOOD DOWELS in the SHELVES and å SKIRT insert into the UPRIGHT. Open end GOLD 1- 3/4"...
  • Page 11 Step 6 Push four LARGE HIDDEN CAMS (3) into the large holes å in the RIGHT UPRIGHT (E) and RIGHT END (F). (4 used) Page 11...
  • Page 12 Step 7 Insert four WOOD DOWELS (6) into the SMALL MODESTY PANEL (H). å Fasten the SMALL MODESTY PANEL (H) to the LEFT UPRIGHT (D). Use two GOLD 1- 3/4" FLAT å HEAD SCREWS (14). Fasten the RIGHT UPRIGHT (E) to the SMALL MODESTY PANEL (H). Use two GOLD 1- 3/4" FLAT å...
  • Page 13 Step Step 8 Insert four WOOD DOWELS (6) into the LARGE MODESTY PANEL (R). å Fasten the LARGE MODESTY PANEL (R) to the MOLDING (G). Use å two GOLD 1- 3/4" FLAT HEAD SCREWS (14). Fasten the RIGHT END (F) to the LARGE MODESTY PANEL (R). Use å...
  • Page 14 Step 9 Carefully stand your two assemblies upright. å Insert two WOOD DOWELS (6) into the MOLDING (G). å Fasten the RIGHT UPRIGHT (E) to the MOLDING (G). Use two GOLD 1-3/4" FLAT HEAD SCREWS (14). å NOTE: Be sure the WOOD DOWELS in the MOLDING insert into the RIGHT UPRIGHT. å...
  • Page 15 Step 10 Turn six CAM SCREWS (5) into the LARGE TOP (A). å Fasten the METAL PLATE (10) and TIE PLATE (11) å to the TOP (A). Use four GOLD 1/2" FLAT HEAD SCREWS (17). GOLD 1/2" FLAT HEAD SCREW (4 used in this step) GOLD 1/2"...
  • Page 16 Step Step 11 Fasten the TOP (A) to the LEFT END (C) and å UPRIGHTS (D and E). Tighten six HIDDEN CAMS. NOTE: Be sure the WOOD DOWELS in the END and å UPRIGHTS insert into the TOP. Page 16...
  • Page 17 Step 12 Turn two CAM SCREWS (5) into the SMALL TOP (B). å Page 17...
  • Page 18 Step 13 Fasten the SMALL TOP (B) to the RIGHT END (F). å Tighten two HIDDEN CAMS. Now might be a good time to refresh NOTE: Be sure the WOOD DOWELS in the END insert å your drink. into the TOP. Fasten the SMALL TOP (B) to the LARGE TOP (A).
  • Page 19 Step 14 Push four SMALL HIDDEN CAMS (4) into the large holes å in the DRAWER SIDES (M and N). Page 19...
  • Page 20 Step 15 Fasten the EXTENSION SLIDES (2) to the å DRAWER SIDES (M and N). Use six GOLD 1/2" FLAT HEAD SCREWS (17) through the holes shown in the enlarged diagram. GOLD 1/2" FLAT HEAD SCREW (6 used in this step) Open end Open end Open end...
  • Page 21 Step 16 Turn four CAM SCREWS (5) into the DRAWER FRONT (L). å Page 21...
  • Page 22 Step 17 With the palm of your hand, tap the DRAWER BOTTOM down into the groove. Groove Slide a DRAWER BOTTOM (P) into the grooves å Fasten the DRAWER SIDES (M and N) to the DRAWER å in the DRAWER SIDES (M and N) and FRONT (L).
  • Page 23 Step 18 Fasten a PULL (7) to the DRAWER FRONT (L). Use two å SILVER 15/16" PAN HEAD SCREWS (16). SILVER 15/16" PAN HEAD SCREW (2 used in this step) Page 23...
  • Page 24 Step 19 Push the four BRACKETS (12) onto the å DRAWER SIDES (M and N). Slide the two FILE BARS (13) into the BRACKETS (12) as å shown in the enlarged diagram. Hang your letter fi les on the FILE BARS (13) as shown. å...
  • Page 25 Step 20 Make equal margins along all four edges of å the BACK (Q). Push on opposite corners of Hey! It's starting to look your unit if needed to make it "square". like something! Fasten the BACK (Q) to your unit using the NAILS (9). å...
  • Page 26 Step 21 To insert a drawer into your unit, line up the EXTENSION SLIDES on the drawer with the EXTENSION RAILS on the å unit and push the drawer into the unit until the drawer is fully inserted. The drawer will push in hard until it is all the way in, then it will slide in and out easier.
  • Page 27 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded shelves or drawers. •...
