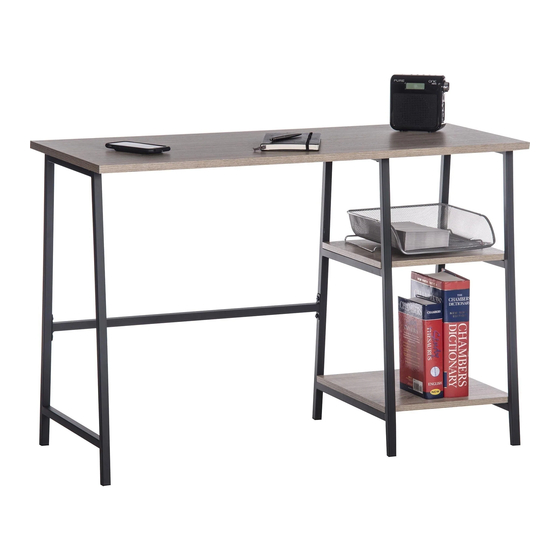

- Page 1 Teknik www.teknikoffice.co.uk Sit and surf. Industrial Style Bench Desk 420032 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Table of Contents Assembly Tools Required Part Identifi cation Hardware Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Assembly Steps Skip the power trip. This time. Safety Page 2...
-
Page 3: Part Identification
Now you know Part Identifi cation our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. TOP (1) SMALL SHELF (1) LARGE SHELF (1) -
Page 4: Hardware Identification
Hardware Identifi cation å Screws are shown actual size. You may receive extra hardware with your unit. 1-3/16" ALLEN SCREW - 8 1-1/8" PAN HEAD SCREW - 8 1/2" ALLEN SCREW - 16 ALLEN WRENCH - 1 Page 4... - Page 5 Step 1 Assemble your unit on a carpeted fl oor or on the empty å carton to avoid scratching your unit or the fl oor. Remember: Fasten the SHORT BRACES (I) to the RIGHT END (F) and Righty tighty. å UPRIGHT (E).
- Page 6 Step 2 Fasten the SMALL SHELF (B) to the END (F) and å Slide the SHELVES (C and B) UPRIGHT (E). Use four 1-1/8" PAN HEAD SCREWS (2). Do in from the side. not overtighten the SCREWS. Fasten the LARGE SHELF (C) to the END (F) and å...
- Page 7 Step 3 Flip your unit onto its TOP. å Fasten the TOP (A) to the ENDS (D and F), UPRIGHT (E) å and LONG TOP BRACE (G). Tighten eight 1-3/16" ALLEN SCREWS (1) using the ALLEN WRENCH (4). Tighten all ALLEN SCREWS with the ALLEN WRENCH. 1-3/16"...
- Page 8 Step 4 Carefully stand your unit upright. å If you're doing this to NOTE: Please read the back pages of the instruction å help a friend, don't booklet for important safety information. leave without a bite. This completes assembly. Clean with your favorite furniture å...
- Page 9 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded shelves and drawers. •...
